Description

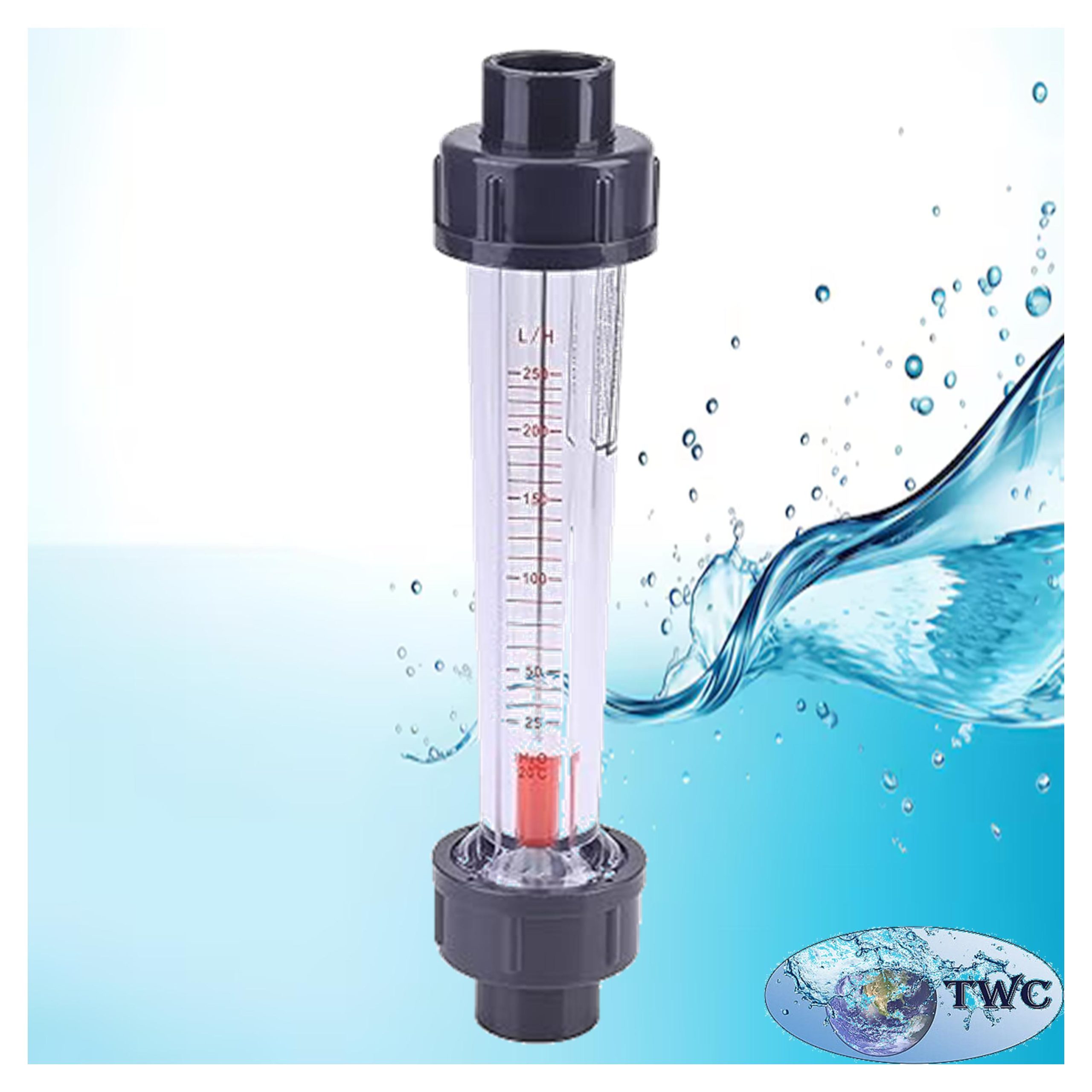

The Rotameter 250–2500 L/h 32 mm female plastic tube flow meter is an in-line variable-area flow meter designed for measuring and monitoring the flow rate of water through a piping system. The visible float moves within the graduated measuring tube as water passes through the meter, allowing the operator to read the approximate flow rate directly from the scale.
Its compact plastic-tube construction and easy-to-read graduated scale provide a simple visual solution for monitoring water-flow rates in filtration, water purification, reverse osmosis and other water-treatment applications. The mechanical design requires no electrical power for basic flow measurement, making the rotameter suitable for systems where a straightforward visual indication of flow is required.
Features:
- Flow range: 250–2,500 L/h.
- Equivalent flow range: approximately 4.17–41.7 L/min.
- Plastic tube-type rotameter.
- Variable-area flow measurement.
- Easy-to-read graduated flow scale.
- Visible float for direct flow indication.
- Compact design.
- Simple mechanical operation.
- No electrical power required.
- Suitable for water applications.
- Suitable for filtration and water-treatment systems.
- 32 mm female connection.
Specifications:
- Product type: Variable-area flow meter / Rotameter.
- Flow range: 250–2,500 L/h.
- Equivalent flow range: Approximately 4.17–41.7 L/min (0.25–2.5 m³/h).
- Measuring medium: Water.
- Body material: Acrylonitrile Styrene.
- Float material: Plastic.
- Guide material: 316L Stainless Steel.
- Connection size: 32 mm.
- Connection type: Female.
- Maximum working pressure: 10 bar.
- Maximum temperature: 80°C.
- Installation: In-line.
- Power requirement: None.
Applications:
- Domestic water purification systems.
- Commercial water purification systems.
- Reverse osmosis systems.
- Domestic RO systems.
- Commercial RO systems.
- Water filtration systems.
- Pre-treatment systems.
- Post-treatment systems.
- Water treatment equipment.
- Process-water systems.
- Membrane filtration systems.
- Flow monitoring on filtration equipment.
- Flow monitoring on water-treatment equipment.
- Commercial water-treatment installations.
- Industrial water-treatment installations.
- General water-flow monitoring.
How a Rotameter works:
A Rotameter is a variable-area flow meter. As water flows through the measuring tube, it causes the internal float to move in response to the flow rate. The position of the float corresponds to the water flow rate shown on the graduated scale.
As the flow rate increases, the float moves higher within the measuring tube. The operator can then read the approximate flow rate directly from the graduated scale.
This provides a simple visual indication of water flow without requiring electrical power.
Installation:
The Rotameter should be installed in accordance with the manufacturer’s installation requirements, with the measuring tube positioned in the correct orientation to allow the float to move freely and provide a clear flow-rate reading.
The connected pipework should be properly supported to prevent excessive mechanical stress on the meter. Flush the pipework before installation to remove debris that could interfere with the float or measuring tube.
Ensure that the system flow falls within the rotameter’s 250–2,500 L/h measuring range and that the operating pressure and temperature remain within the specified limits.
Important:
- Check that the required system flow falls within the 250–2,500 L/h measuring range.
- The equivalent flow range is approximately 4.17–41.7 L/min.
- The equivalent flow range is approximately 0.25–2.5 m³/h.
- Confirm that the 32 mm female connection is compatible with the existing piping system.
- Ensure that the system operating pressure does not exceed 10 bar.
- Ensure that the operating temperature does not exceed 80°C.
- Install the rotameter in the correct orientation to allow the float to move freely.
- Flush the pipework before installation to remove debris.
- Support connected pipework to prevent excessive mechanical stress on the rotameter.
