Description

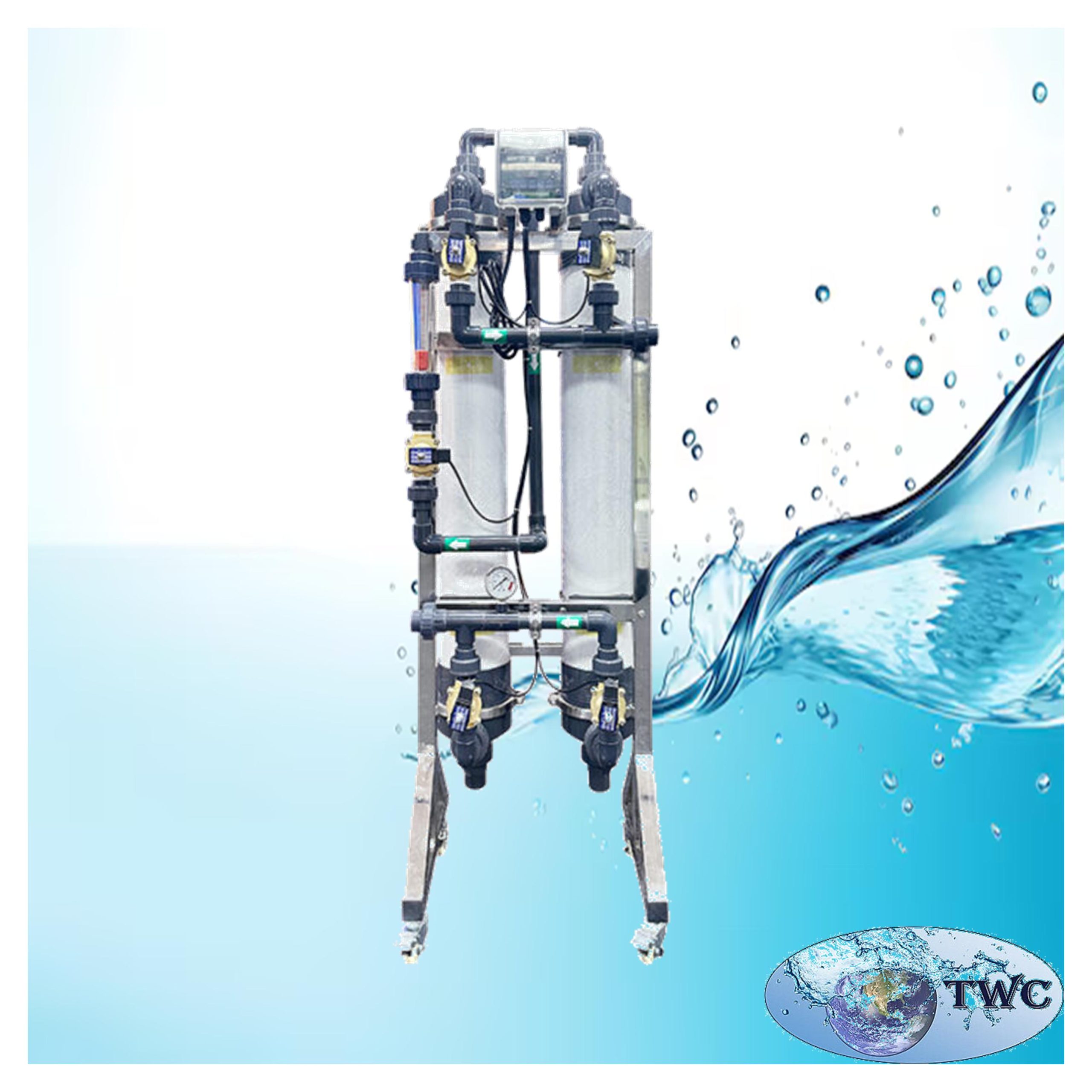

The 1,600 L/h Automatic Ultrafiltration System is a high-capacity membrane filtration system designed for commercial, agricultural and industrial water-treatment applications where fine filtration and automated membrane cleaning are required.

The system uses hollow-fibre ultrafiltration (UF) membrane technology to filter water through a semi-permeable membrane. The membrane helps retain suspended solids, fine particles, colloids, turbidity and many microorganisms while allowing water and many smaller dissolved substances to pass through.

With a nominal production capacity of up to 1,600 litres per hour, the system is suitable for a range of high-volume water-treatment applications. Actual production capacity depends on factors including feed-water quality, temperature, pressure, membrane condition and pre-treatment.

The system is designed for automatic operation, including automated filtration, backwashing and rinsing. Automatic operation reduces the need for routine manual valve switching and helps maintain consistent membrane-cleaning cycles when the system is correctly configured.

The UF system can be installed as a standalone filtration stage for suitable applications or incorporated into a larger water-treatment plant. It can also be used as a pre-treatment stage for reverse osmosis, helping reduce suspended and colloidal loading before water reaches the RO membranes.

Important: Pre-treatment required

We recommend suitable pre-treatment before the ultrafiltration system, as it is vital for maintaining optimal membrane performance and service life. Operators should analyse raw water and appropriately treat it before it enters the UF membranes. Depending on the source-water quality, pre-treatment may include sediment filtration, multimedia or glass filtration, activated carbon, iron and manganese removal, softening, or other treatment stages. Proper pre-treatment helps reduce membrane fouling, scaling, and contamination and can significantly improve membrane performance and service life.

Features:

• Automatic ultrafiltration system.
• Nominal production capacity of up to 1,600 L/h.
• Hollow-fibre UF membrane technology.
• Nominal membrane filtration range of approximately 0.01 micron.
• Automatic filtration operation.
• Automatic backwash function.
• Automatic rinse function.
• Automatic membrane-cleaning operation.
• Helps reduce suspended solids and fine particles.
• Helps reduce colloids and turbidity.
• Helps reduce many microorganisms.
• Product-water flow monitoring.
• Wastewater flow monitoring.
• Dedicated backwash and rinse functions.
• Suitable for commercial water treatment.
• Suitable for industrial water treatment.
• Suitable for borehole-water treatment when correctly designed.
• Suitable as pre-treatment for reverse osmosis.
• Compact membrane filtration technology.
• Lower-pressure operation than typical reverse osmosis systems.
• Suitable for integration into larger water-treatment plants.
• Designed to reduce routine manual intervention.

Specifications:

• Product Type: Automatic Ultrafiltration System.
• System Capacity: Up to 1,600 L/h.
• Filtration Technology: Ultrafiltration (UF).
• Membrane Type: Hollow-fibre membrane.
• Nominal Membrane Filtration Range: Approximately 0.01 micron.
• Operation: Automatic.
• Backwash: Automatic.
• Rinse: Automatic.
• Inlet Pressure: Below 3 bar.
• Backwash Pressure: Approximately 2 bar.
• Raw Water Connection: 1″.
• Product Water Connection: 1″.
• Wastewater Connection: 1″.
• Product Water Flow Meter: Included.
• Wastewater Flow Meter: Included.
• Pre-Treatment: Required.
• Installation: Suitable for integration into commercial and industrial water-treatment systems.

Applications:

• Borehole-water filtration.
• Municipal water filtration.
• Surface-water treatment.
• Commercial water treatment.
• Industrial water treatment.
• Agricultural water treatment.
• Process-water filtration.
• Reverse osmosis pre-treatment.
• Drinking-water treatment systems.
• Hospitality facilities.
• Hotels and lodges.
• Guest houses.
• Manufacturing facilities.
• Food and beverage applications.
• Water-treatment plants.
• Irrigation-water treatment.
• High-volume water filtration.

Why Choose the 1,600 L/h Automatic Ultrafiltration System?

• Automatic operation: Automated filtration, backwash and rinse functions reduce routine manual intervention.
• High filtration capacity: Provides a nominal production capacity of up to 1,600 L/h for suitable applications.
• Fine membrane filtration: Approximately 0.01-micron UF membrane filtration helps reduce fine particulate and colloidal contaminants.
• Hollow-fibre technology: Provides a high membrane surface area within a compact filtration system.
• Automatic membrane cleaning: Automated backwash and rinse functions help maintain membrane performance.
• Suitable for RO pre-treatment: UF can reduce suspended and colloidal loading before downstream reverse osmosis.
• Flow monitoring: Product-water and wastewater flow meters provide useful information for monitoring system performance.
• Commercial and industrial use: Suitable for integration into larger water-treatment installations.
• Lower-pressure membrane technology: UF generally operates at substantially lower pressures than reverse osmosis.
• Reduced operator involvement: Automatic operation makes the system easier to integrate into applications requiring consistent filtration without frequent manual valve changes.
  Flexible system integration: Can be combined with sediment filtration, carbon filtration, softening, RO, UV, storage tanks and other treatment technologies.
