Description

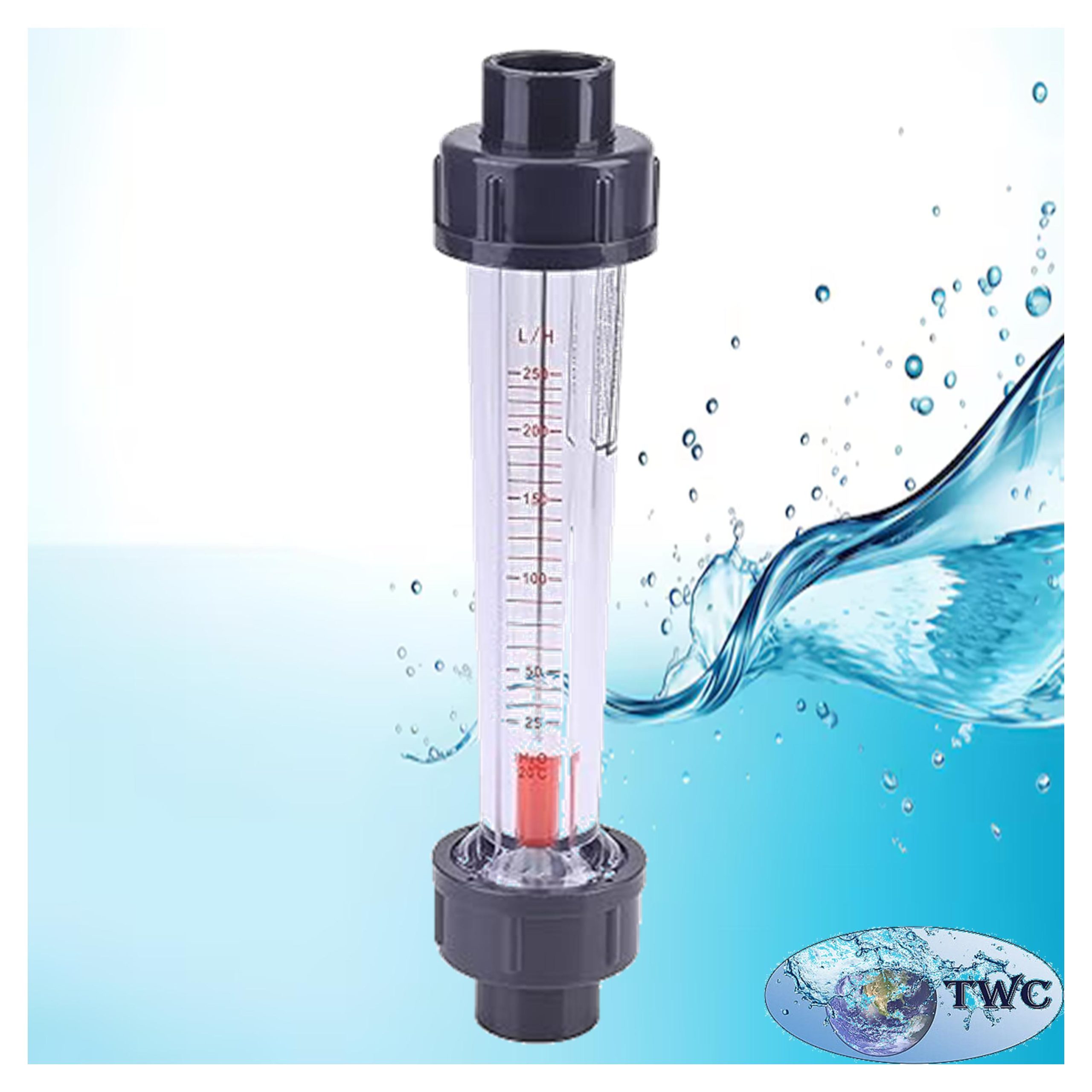

The Rotameter 1.6–16 m³/h Plastic Tube Type Flow Meter is an in-line variable-area flow meter designed for measuring and monitoring the flow rate of water through a piping system. The visible float moves within the graduated measuring tube as water passes through the meter, allowing the operator to quickly read the approximate flow rate.

Its plastic tube construction and easy-to-read graduated scale provide a simple visual solution for monitoring water flow in filtration, water purification, reverse osmosis and other water treatment applications. The mechanical design requires no electrical power for basic flow measurement, making the rotameter suitable for a range of commercial and industrial water-treatment systems.

Features:

• Flow range: 1.6–16 m³/h (approximately 26.7–266.7 L/min).
• Plastic tube-type rotameter.
• Variable-area flow measurement.
• Easy-to-read graduated flow scale.
• Visible float for direct flow indication.
• Simple mechanical operation.
• No electrical power required.
• Lightweight construction.
• Corrosion-resistant plastic construction.
• Suitable for water applications.
• Suitable for filtration and water-treatment systems.
• Suitable for reverse osmosis and other process-water applications.

Specifications:

• Product type: Variable-area flow meter / Rotameter.
• Flow range: 1.6–16 m³/h.
• Equivalent flow range: Approximately 26.7–266.7 L/min.
• Measuring medium: Water.
• Body material: Acrylonitrile Styrene.
• Float material: Plastic.
• Guide material: 316L stainless steel.
• Connection size: 63 mm.
• Connection type: uPVC union adapter socket.
• Connection: Female.
• Maximum working pressure: 10 bar.
• Maximum temperature: 80°C.
• Installation: In-line.
• Power requirement: None.

Applications:

• Commercial water filtration systems.
• Industrial water filtration systems.
• Reverse osmosis systems.
• Commercial RO systems.
• Industrial RO systems.
• Water purification systems.
• Pre-treatment systems.
• Post-treatment systems.
• Water treatment plants.
• Process-water systems.
• Membrane filtration systems.
• Flow monitoring on treatment equipment.
• Industrial water-treatment installations.
• Commercial water-treatment installations.
• Water-treatment and filtration pipelines.

How a Rotameter Works:

A rotameter is a variable-area flow meter. As water flows upward through the tapered measuring tube, it causes the internal float to rise. The position of the float corresponds to the water flow rate shown on the graduated scale.

As the flow rate increases, the float rises to a higher position within the tube. This provides a simple visual indication of the water flow rate without requiring electrical power.

Installation:

The rotameter should be installed in accordance with the manufacturer’s installation requirements, with the measuring tube positioned vertically and in the correct orientation to allow the float to move freely and provide a clear flow-rate reading.

The connected pipework should be properly supported to prevent excessive mechanical stress on the meter. Flush the pipework before installation to remove debris that could interfere with the float or measuring tube.

Ensure that the system flow falls within the meter’s 1.6–16 m³/h measuring range and that operating pressure and temperature remain within the specified limits.

Important:

• Check that the required system flow falls within the 1.6–16 m³/h measuring range.
• This corresponds to approximately 26.7–266.7 L/min.
• Confirm that the 63 mm connection is compatible with the existing piping system.
• Ensure that the system operating pressure does not exceed 6 bar.
• Ensure that the operating temperature does not exceed 60°C.
• Install the measuring tube in the correct orientation to allow the float to move freely.
• Flush the pipework before installation to remove debris.
• Support the connected pipework to prevent excessive mechanical stress on the rotameter.
