Description

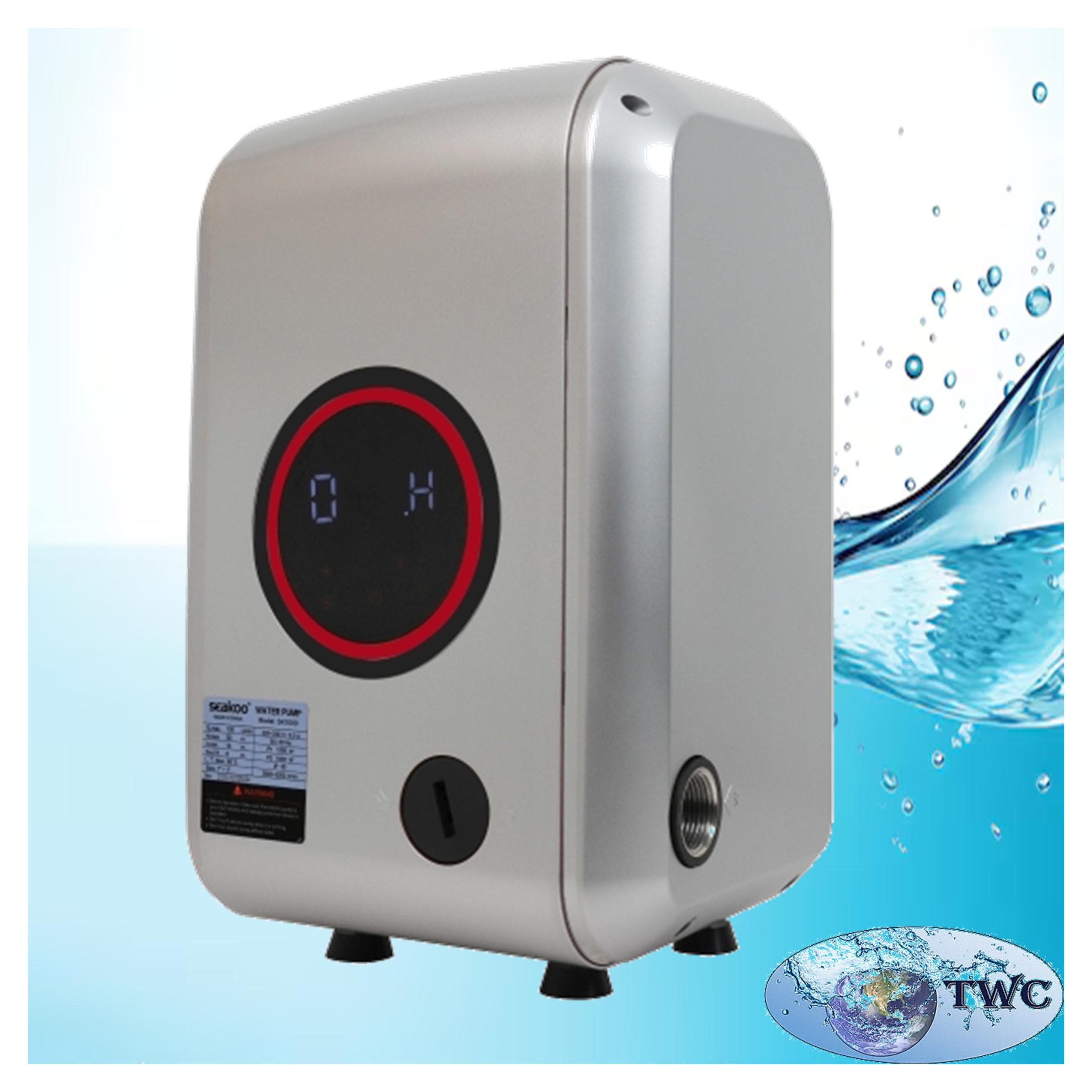

The Seakoo Cube SK1000 is an intelligent variable-speed water booster pump designed to deliver efficient and reliable water pressure for domestic and other suitable water supply applications.
The pump incorporates a permanent-magnet synchronous motor and an integrated variable-frequency control system. Unlike a conventional fixed-speed pump, it adjusts its operating speed according to water demand, helping to reduce unnecessary energy consumption and mechanical stress caused by repeated starts and stops.
The integrated LED touchscreen allows the user to adjust the pump settings conveniently. Its soft-start operation helps reduce the high starting-current demand associated with conventional pumps, making it a useful option for appropriately designed solar-powered water supply systems.
Features:
- 1.0 kW permanent-magnet synchronous motor.
- Integrated variable-frequency drive (VFD).
- Full LED touchscreen for convenient control.
- Eight-speed adjustment for the SK1000 model.
- Variable-speed operation according to water demand.
- Soft-start functionality.
- Energy-efficient operation.
- Quiet running performance.
- Compact design for convenient installation.
- Suitable for vertical or horizontal installation, subject to the manufacturer’s instructions.
- Designed for clean-water boosting and pressure supply applications.
Specifications:
- Brand: Seakoo.
- Product range: Cube.
- Model: SK1000.
- Product type: Intelligent variable-speed water booster pump.
- Rated motor power: 1.0 kW.
- Motor type: Permanent-magnet synchronous motor.
- Control system: Integrated variable-frequency drive (VFD).
- Speed adjustment: Eight-speed adjustment.
- Maximum flow rate: 7,200 L/h (7.2 m³/h).
- Maximum head: 50 metres.
- Head range: Approximately 10–45 metres, according to the manufacturer’s performance curve.
- Maximum suction lift: 6 metres.
- Motor insulation class: F.
- Motor protection rating: IP44.
- Liquid temperature: 0°C to +60°C.
- Permitted liquid: Clean water or liquids with similar properties to water.
- Permitted pH range: 6.5–8.5.
- Maximum solid particle size: 0.2 mm.
- Maximum volume ratio of solid impurities: 0.1%.
- Display: Integrated LED touchscreen.
- Starting method: Soft start.
- Speed control: Variable frequency.
- Installation orientation: Vertical or horizontal, subject to manufacturer instructions.
Applications:
- Domestic water pressure boosting.
- Medium to large residential properties, subject to water demand.
- Water supply from storage tanks.
- Pressure boosting for roof-mounted water tanks.
- Garden irrigation systems.
- Suitable solar-powered water supply systems.
- Constant-pressure water supply applications.
