Description

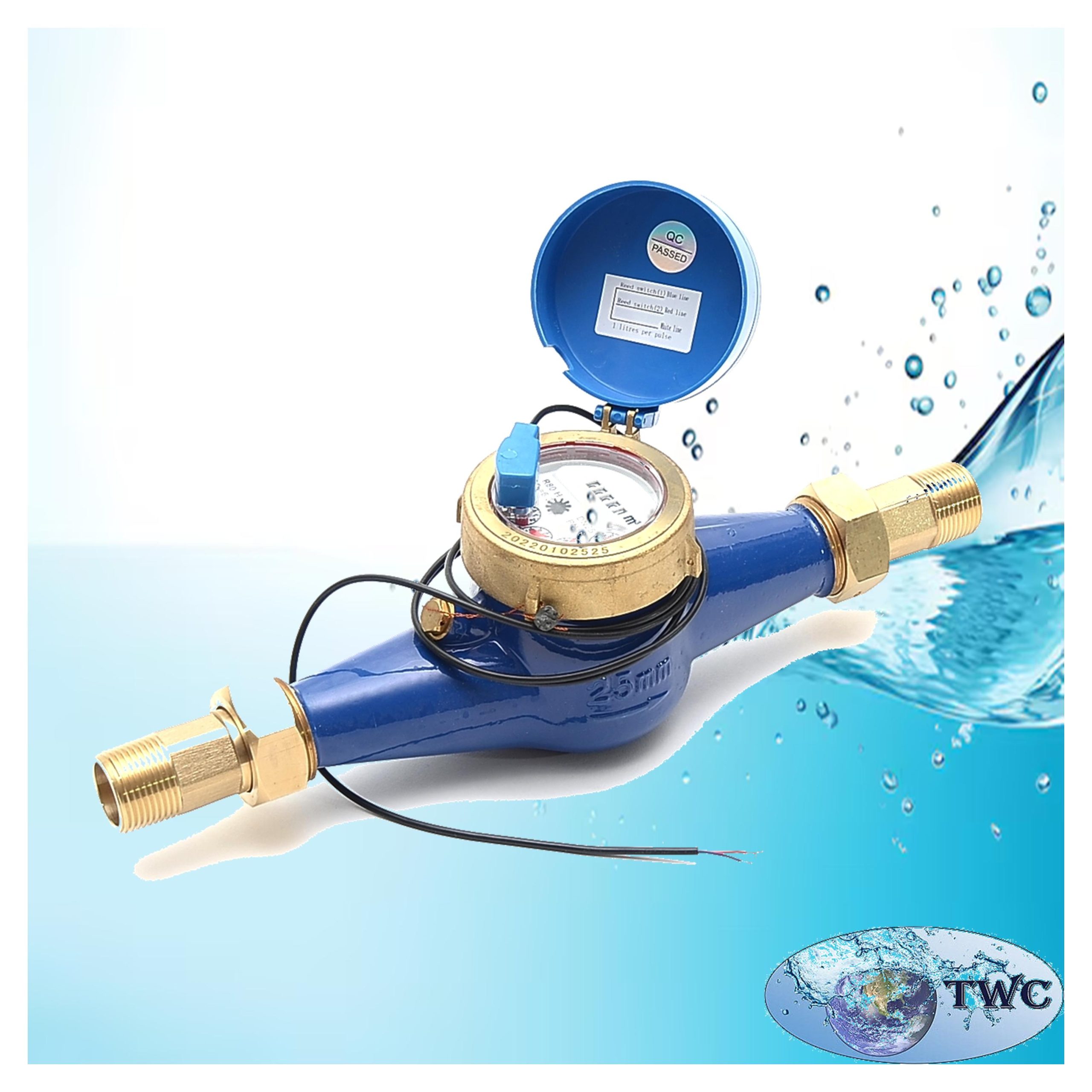

The multi-jet brass water meter with tails & reed switches – 40mm is designed to measure cold water consumption in commercial, industrial and larger water supply installations. Its multi-jet measuring design provides reliable water measurement, while the integrated reed switch pulse emitter allows consumption data to be transmitted to compatible monitoring and dosing equipment.
The manufacturer builds the meter using materials selected for their resistance to corrosion, and the meter is suitable for water temperatures up to 50°C (T50). Its impeller is the only moving component in contact with the water, helping provide dependable operation.
The meter has a 6-roller indicator register with 4 pointers and an inlet filter that you can clean without breaking the metrological seal. Magnetic protection helps guard against external magnetic influences.
Supplied with brass tail pieces and a reed switch pulse emitter, this meter is suitable for applications requiring remote pulse monitoring or proportional chemical dosing.
Features:
- 40mm Multi-jet brass water meter.
- Suitable for cold water applications up to 50°C (T50).
- Supplied with brass tail pieces.
- 6-Roller indicator register with 4 pointers.
- Integrated reed switch pulse emitter.
- Standard 1.5m cable with 2 cores (red and black).
- Optional configuration with 2 reed switches and a 3-core cable.
- 10 litres per pulse output.
- Maximum switching voltage of 24V AC/DC.
- Maximum switched current of 0.01A (10mA).
- Magnetic protection against external influences.
- Inlet filter can be cleaned without breaking the metrological seal.
- Impeller is the only moving part in contact with water.
Specifications:
- Nominal size: 40mm.
- Meter type: Multi-jet brass water meter.
- Water temperature: Maximum 50°C (T50).
- Register: 6 rollers and 4 pointers.
- Pulse output: 10 litres per pulse.
- Standard reed switch cable: 1.5m, 2-core cable (red and black).
- Optional reed switch configuration: 2 reed switches with a 1.5m, 3-core cable.
- Maximum switching voltage: 24V AC/DC.
- Maximum switched current: 0.01A (10mA).
- Installation position: Horizontal pipeline only.
- Connections: Supplied with brass tail pieces.
Applications:
- Commercial water consumption measurement.
- Industrial water monitoring.
- Larger water supply installations.
- Remote water meter reading systems.
- Water consumption monitoring.
- Proportional chemical dosing systems.
- Compatible dosing pumps and telemetry equipment.
Why choose the multi-jet brass water meter with tails & reed switches – 40mm?
- Reliable water measurement: Multi-jet design for dependable cold water consumption monitoring.
- Pulse output: Allows water consumption data to be transmitted to compatible monitoring and dosing equipment.
- Durable construction: Materials selected for their resistance to corrosion.
- Clear register: The 6-roller register and 4 pointers provide a mechanical water consumption reading.
- Convenient installation: Supplied with brass tail pieces for pipeline connections.
- Flexible monitoring: Standard and optional reed switch configurations provide flexibility for compatible monitoring systems.
- Versatile applications: Suitable for commercial, industrial and water management installations.
