Description

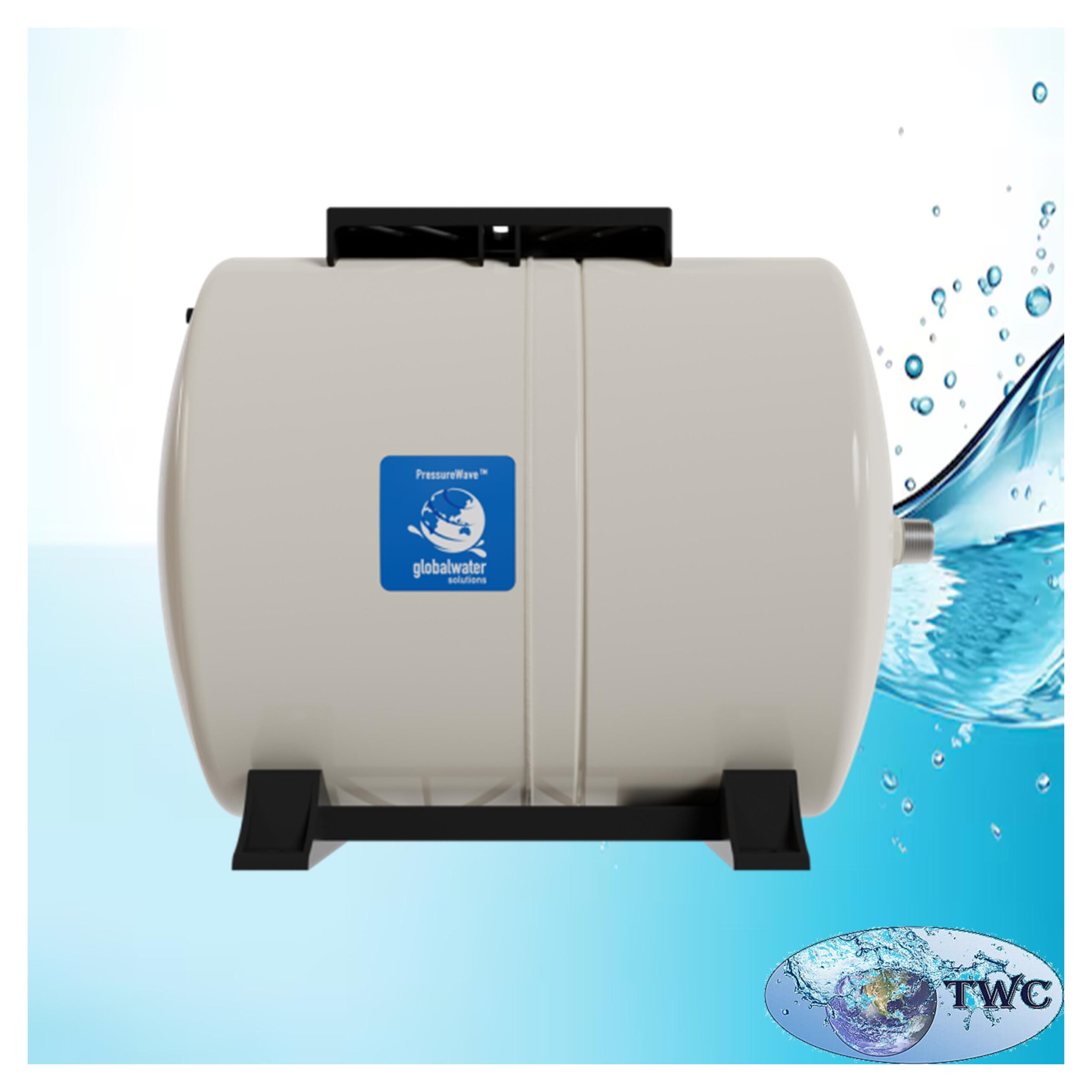

The Global Water Solutions PressureWave™ horizontal 60-liter pressure tank is a premium-quality diaphragm pressure vessel designed to deliver reliable water pressure, improve pump performance, and extend the lifespan of your water system. Manufactured by Global Water Solutions (GWS), the PressureWave™ series is renowned worldwide for its innovative engineering, superior construction, and long-lasting reliability.
Designed specifically for horizontal installation, the 60-liter model is ideal for applications where vertical space is limited or where a pressure pump is mounted directly onto the tank. The tank incorporates a 100% butyl diaphragm and a precision-molded virgin polypropylene liner, ensuring complete separation between water and compressed air. This advanced design prevents water-logging, protects the diaphragm from excessive wear, and maintains excellent water quality.
The heavy-duty welded steel shell is finished with a durable polyurethane epoxy coating, providing exceptional resistance to corrosion, impact, and harsh environmental conditions. An integrated pump mounting platform allows for a compact, secure installation, making the PressureWave™ Horizontal 60L an excellent choice for residential, agricultural, commercial, and light industrial water systems.
By reducing pump cycling and maintaining consistent water pressure, the Global Water Solutions PressureWave™ Horizontal 60-Liter Pressure Tank improves system efficiency, lowers energy consumption, and provides years of dependable, maintenance-free operation.
Features:
- 60-Liter horizontal diaphragm pressure tank.
- Manufactured by Global Water Solutions (GWS).
- PressureWave™ series.
- Horizontal design with integrated pump mounting platform.
- Premium 100% butyl diaphragm.
- Virgin polypropylene liner for superior durability.
- Complete separation of water and compressed air.
- Heavy-duty welded steel construction.
- Corrosion-resistant polyurethane epoxy-coated exterior.
- Stainless steel water connection for enhanced durability.
- Reduces pump starts and stops.
- Extends pump and pressure system lifespan.
- Maintains constant and reliable water pressure.
- Factory pre-charged for quick and easy installation.
- Suitable for potable drinking water systems.
- Maintenance-free operation under normal conditions.
Specification:
- Brand: Global Water Solutions (GWS).
- Series: PressureWave™.
- Tank type: Horizontal diaphragm pressure tank.
- Nominal capacity: 60 Litres.
- Maximum working pressure: 10 Bar (145 psi).
- Internal membrane: 100% Butyl diaphragm.
- Internal liner: Virgin polypropylene.
- Construction: Heavy-duty welded steel.
- Water connection: 1″ BSP Male.
- Factory pre-charge: 1.9 Bar (28 psi).
- Orientation: Horizontal.
- Pump mounting: Integrated pump mounting platform.
- Exterior finish: Polyurethane epoxy-coated steel.
- Application: Water pressure boosting and storage.
Applications:
- Borehole water systems.
- Domestic water pressure systems.
- Pressure booster pump installations.
- Irrigation systems.
- Rainwater harvesting systems.
- Reverse osmosis systems.
- Water filtration and purification systems.
- Agricultural water supply.
- Commercial buildings.
- Hotels, lodges, and guest houses.
- Light industrial water systems.
Why choose the PressureWave™ horizontal 60-liter pressure tank?
- Compact horizontal design is ideal for installations with limited space.
- Integrated pump mounting platform simplifies installation and reduces the system footprint.
- Advanced diaphragm technology prevents water-logging and maintains stable pressure.
- Reduces pump cycling, extending pump and motor lifespan.
- Improves system efficiency and lowers electricity consumption.
- Provides reliable and consistent water pressure throughout the system.
- Corrosion-resistant construction ensures long-term durability.
- Suitable for potable drinking water applications.
- Maintenance-free operation reduces servicing requirements and operating costs.
- Premium Global Water Solutions engineering trusted worldwide.
