Description

APPLICATION OF DP SERIES PUMP

• Agriculture/Yacht / RV/Caravan pressurized water system
• Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
• Cleaning machine, Humidifier, Water purification, Medical apparatus
• Food beverage filling & liquid transfer
• Any other pressurization system

FEATURES OF DP SERIES WATER PUMPLong life, no leak, quiet operation

• Positive displacement pump
• Can run dry
• Industry-standard mount pattern
• Built thermal protector
• Self-priming, fully automatic, easy installation
• Special valve for liquid input and output
• 12v,24vDC and 120v,230v AC motors standard(consult factory for other voltages
• Numerous fittings options for greater mounting flexibility
• High-pressure diaphragm pump
• Small size, Lightweight and Stable performance
• special EPDM valve for liquid input and output
• Antivibration pad, easy installation with stable function
• Self-priming, Automatic Pressure Switch
• Automatic Pressure Protection
• Low Noise, with excellent resistant to chemical corrosion

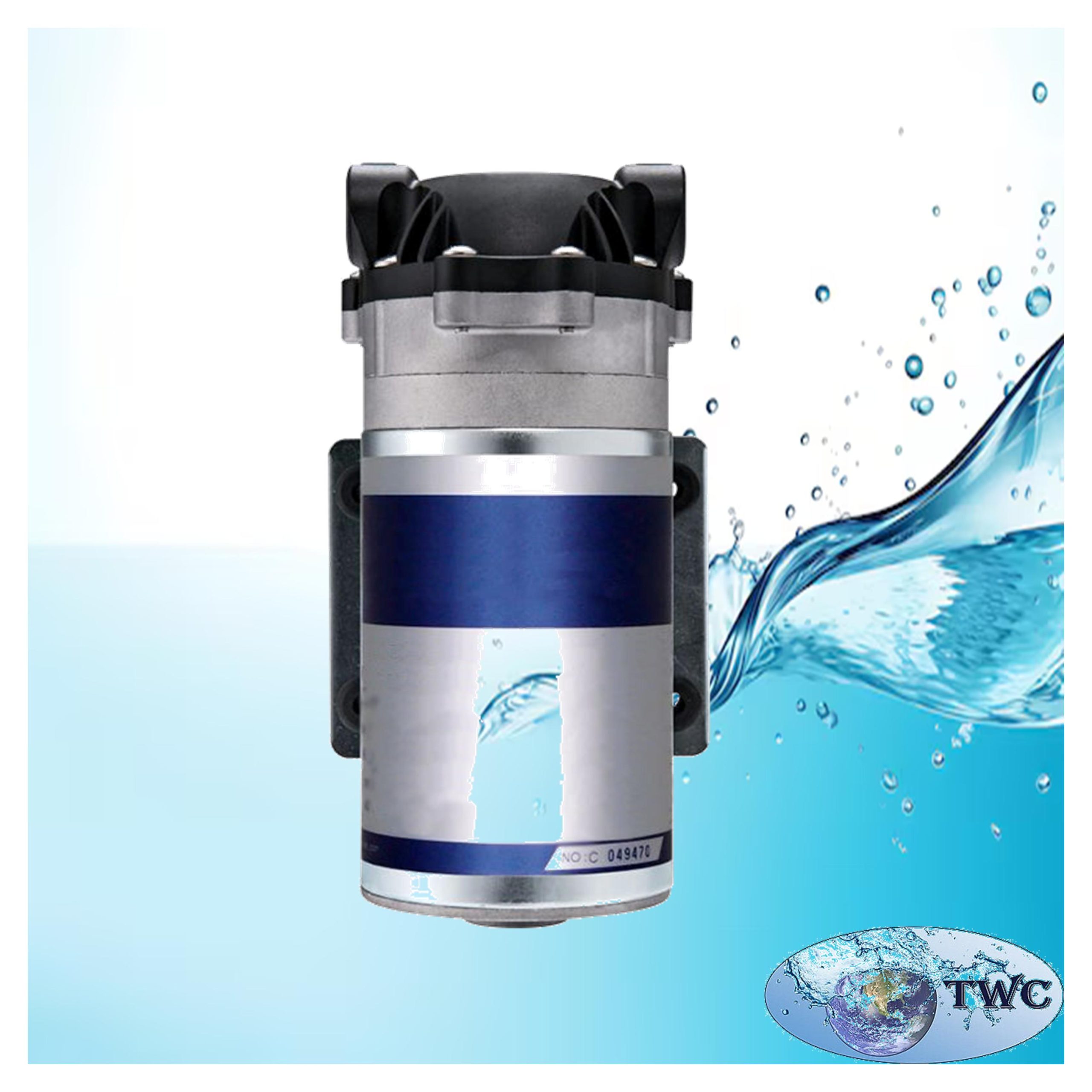

SPECIFICATION OF DP-80 DIAPHRAGM PUMPPump design: 3 chamber diaphragm

• Max. flow: 1.14GPM(5.1L/min)
• Port size: 3/8”(9.5mm)Hose Barb
• Pressure max: 170psi
• Diaphragm materials: Santoprene
• Check valve made: EPDM or Viton
• Voltage:12vdc, 24v dc,120v ac, 220v ac, 230v ac
• Liquid temp: 140 °F(60°C) Maximum
• Body material: Cast Iron
• Duty cycle: Intermittent
