Description

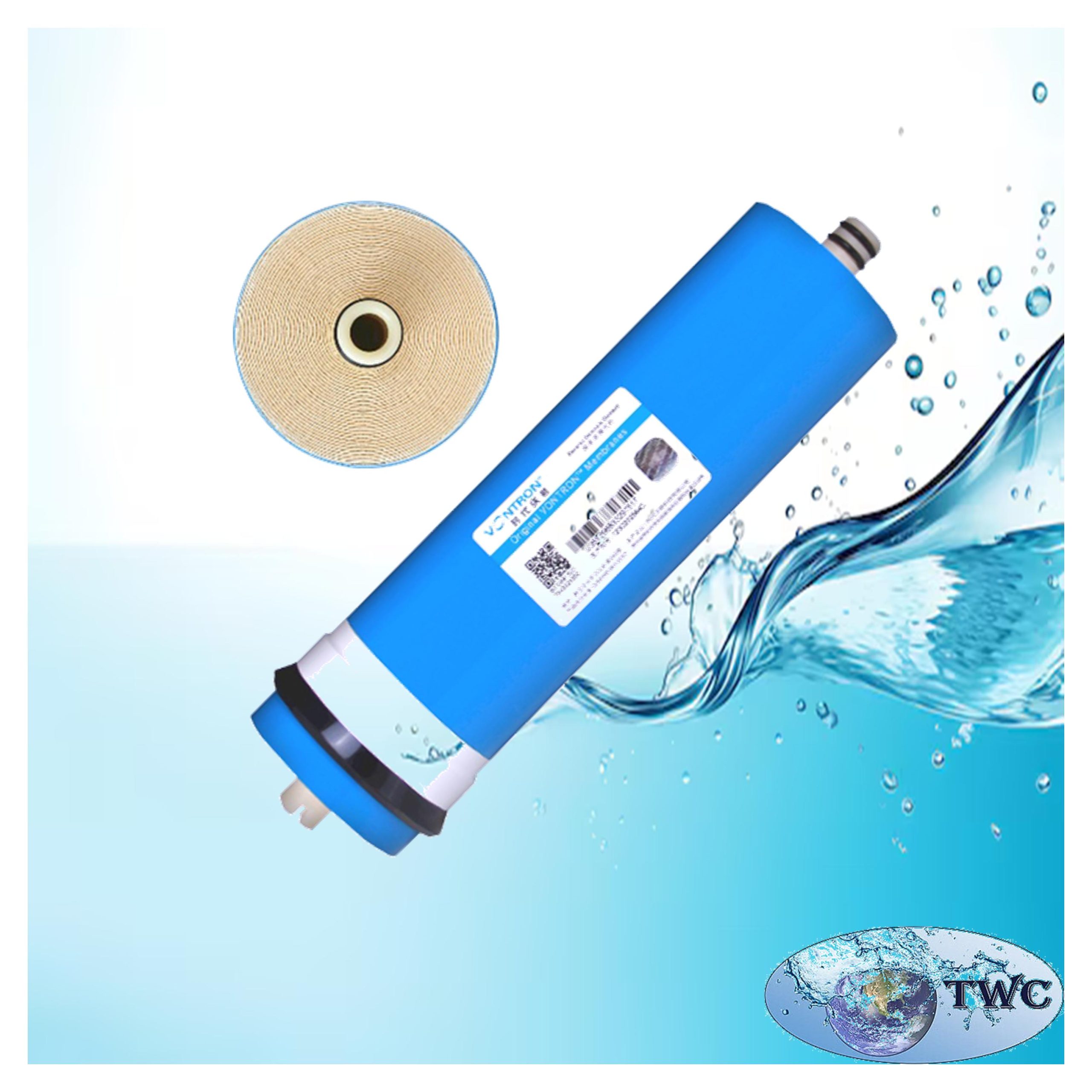

The 3012 300 GPD Reverse Osmosis Membrane is a high-performance thin-film composite (TFC) membrane designed for residential and light commercial Reverse Osmosis (RO) systems. It delivers high permeate flow and excellent salt rejection, making it ideal for applications requiring higher water production than standard domestic membranes.

Suitable for desalinating water sources with a salt concentration below 2,000 ppm, the 3012 300 GPD membrane effectively removes dissolved salts, Total Organic Carbon (TOC), and other impurities to produce high-quality purified water. It is widely used in household water purifiers, small commercial RO systems, hospitals, laboratories, food processing, and pharmaceutical applications.

Designed for reliability and long service life, the 3012 membrane offers consistent performance when paired with proper pretreatment and regular maintenance.

Features:

• High-capacity membrane producing up to 300 GPD.
• Excellent salt rejection for superior water quality.
• Suitable for low-salinity water sources.
• High permeate flow for increased water production.
• Thin-film composite (TFC) membrane technology.
• Compatible with standard 3012 membrane housings.
• Designed for residential and light commercial RO systems.
• Long service life with proper pretreatment.
• Excellent contaminant removal performance.
• Easy installation and replacement.

Specifications:

• Model: 3012 300 GPD.
• Membrane Type: Thin-Film Composite (TFC).
• Active Membrane Area: 3.5 ft² (0.32 m²).
• Average Permeate Flow: 300 GPD (approximately 1,135 L/day).
• Stable Salt Rejection: 97.5%.
• Minimum Salt Rejection: 96.0%.

Standard Test Conditions:

• Test Pressure: 100 psi (0.69 MPa).
• Feed Water Temperature: 25°C.
• Test Solution: 500 ppm NaCl.
• Feed Water pH: 6.5 to 8.5.
• Single Element Recovery: 15%.

Operating Limits:

• Maximum Operating Pressure: 300 psi (2.07 MPa).
• Maximum Feed Water Temperature: 45°C.
• Maximum Feed Water SDI: 5.
• Maximum Free Chlorine: <0.1 ppm.
• Continuous Operating pH Range: 3 to 10.
• Chemical Cleaning pH Range: 2 to 12.
• Maximum Pressure Drop Per Membrane Element: 10 psi (0.07 MPa).

Applications:

• Residential Reverse Osmosis systems.
• Domestic drinking water purification.
• Light commercial RO systems.
• Hospital water purification.
• Laboratory water purification.
• Municipal water treatment.
• Borehole water treatment.
• Food and beverage processing.
• Pharmaceutical water production.
• Boiler feed water and high-purity water production.

Why Choose the 3012 300 GPD Reverse Osmosis Membrane?

• Produces up to 300 gallons (approximately 1,135 litres) of purified water per day.
• High permeate flow improves overall system efficiency.
• Excellent salt rejection ensures consistently high-quality water.
• Suitable for treating municipal, tap, borehole, groundwater, and surface water with salinity below 2,000 ppm.
• Removes dissolved salts, organic contaminants, and other impurities.
• Compatible with most standard 3012 RO membrane housings.
• Durable membrane construction provides long service life.
• Ideal for residential, commercial, laboratory, and healthcare applications.
• Easy to install and replace.
• Delivers reliable, high-performance water purification every day.
