Description

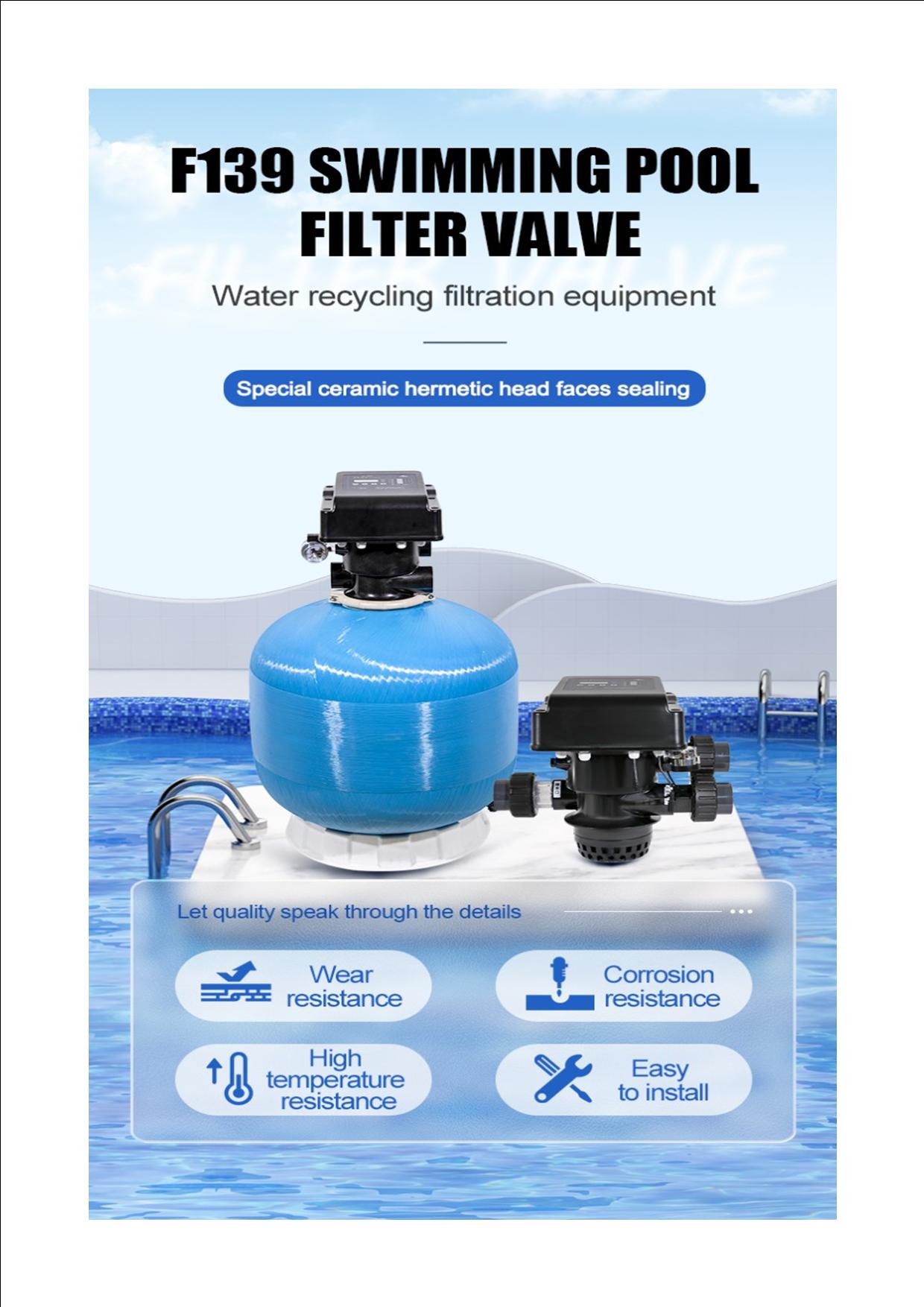

The Runxin F139A automatic swimming pool valve 24 m³/h is an automatic multiport control valve designed for residential and commercial swimming pool filtration systems. Combining six essential operating functions into one compact unit, it provides efficient filtration management while reducing maintenance requirements and improving overall system performance.

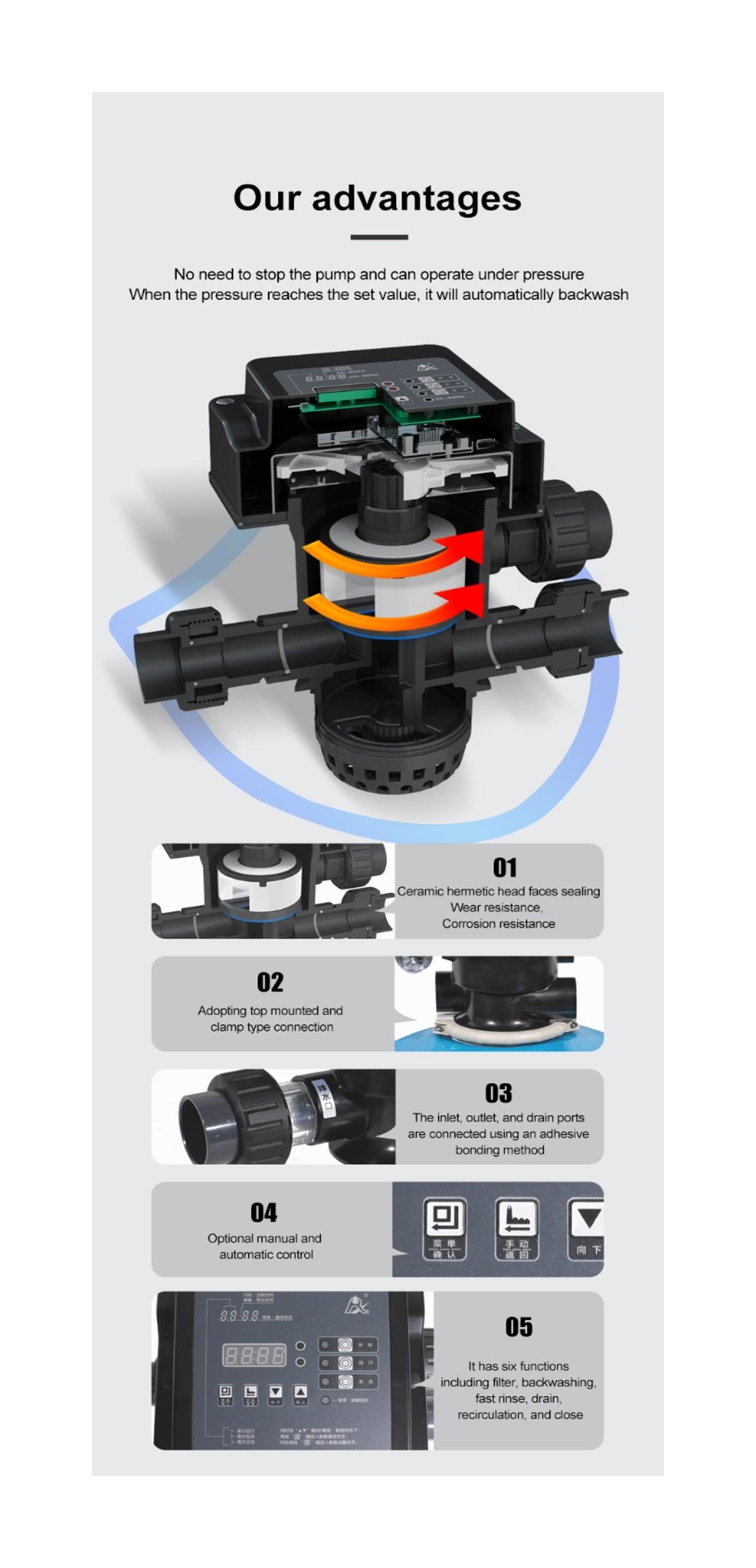

Featuring Runxin’s advanced ceramic face seal technology, the valve offers excellent wear resistance, corrosion resistance, and long-term reliability. The F139A can switch between operating modes under pressure without shutting down the circulation pump, making operation simple while reducing downtime.

The automatic backwash function can be activated by either a preset pressure differential or a programmed time interval, ensuring optimum filter performance with minimal manual intervention. Its compact side-mounted design makes it ideal for larger swimming pool filtration systems where reliable automatic operation is required.

Features:

• Automatic six-function swimming pool control valve.
• Maximum filtration capacity of 24 m³/h.
• Automatic pressure or time-controlled backwash.
• Ceramic face seal technology for exceptional durability.
• Switches operating modes without shutting down the pump.
• Side-mounted design.
• Compact construction for integrated filtration systems.
• Corrosion-resistant materials.
• Automatic and manual backwash operation.

Operating functions:

• Filter.
• Backwash.
• Rinse.
• Waste.
• Recirculate.
• Closed.

Specifications:

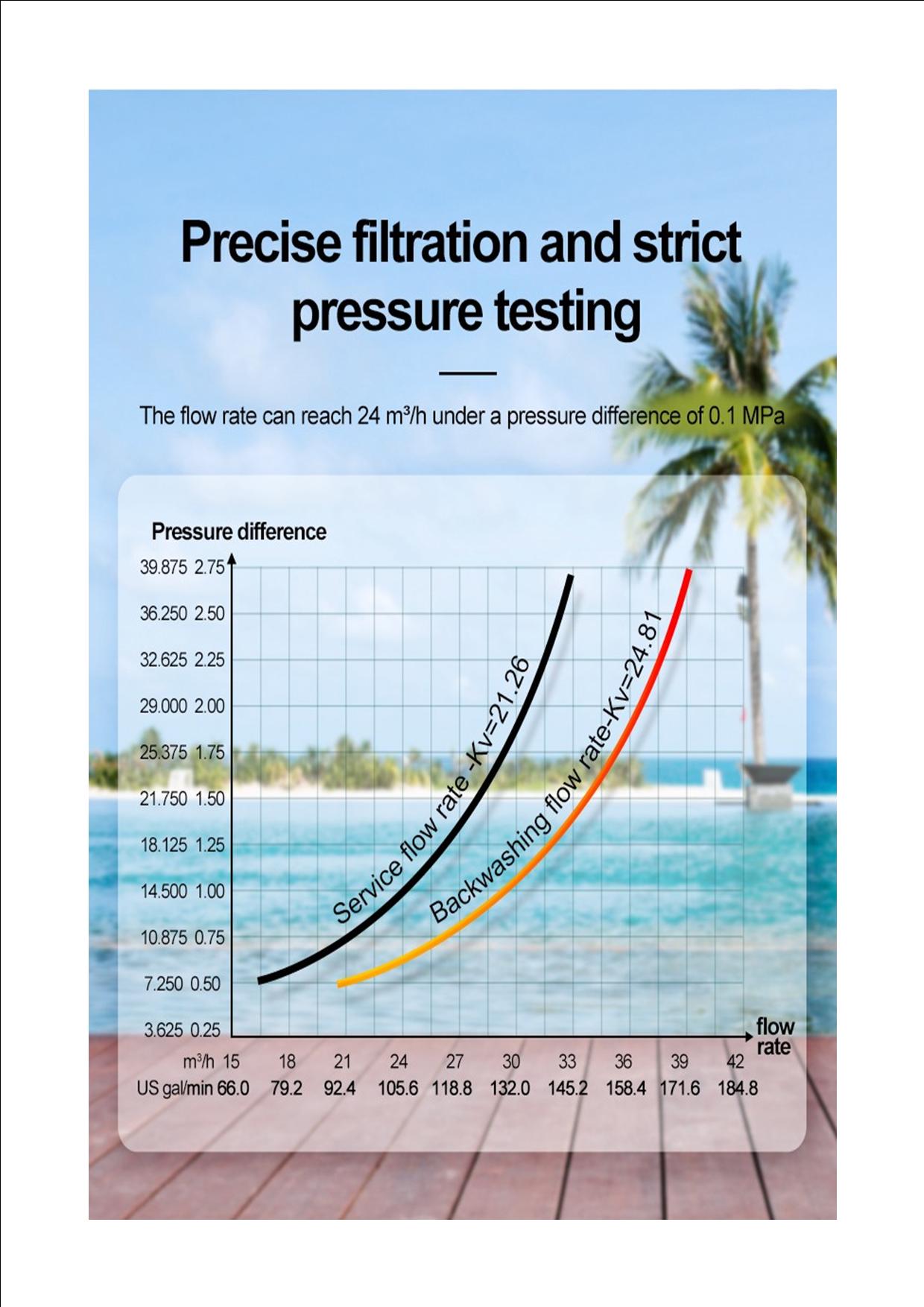

• Maximum flow rate: 24 m³/h.
• Operating pressure: Up to 0.25 MPa.
• Water temperature: 5°C to 50°C.
• Power supply: AC 100 to 240 V, 50/60 Hz.
• Valve type: Automatic side-mounted swimming pool filter valve.
• Applications: Residential and commercial swimming pool filtration systems.

Applications:

• Swimming pool filtration systems: Automates filtration and water circulation cycles.
• Pool sand filter systems: Controls the different operating positions of a sand filtration system.
• Automatic backwashing: Controls the backwash cycle to clean the filter media.
• Filter rinsing: Provides automatic control of the rinse cycle following backwashing.
• Pool water treatment systems: Suitable for integrated pool filtration and water-treatment installations.
• Residential swimming pools: Ideal for automated filtration systems in homes and private pools.
• Commercial swimming pools: Suitable for larger pool installations requiring automated filtration control.
• Hotels, lodges and guest houses: Helps automate routine pool filtration and maintenance cycles.
• Pool pump and filtration installations: Designed to work as part of an automated circulation and filtration system.
• Pool maintenance systems: Reduces the need for manual valve operation during routine filter servicing.

Installation:

• Install the valve close to the swimming pool filtration system where practical.
• Leave sufficient space for operation and maintenance.
• Install the controller in a protected location away from direct sunlight and excessive weather exposure.
• Do not install where temperatures may fall below 5°C or exceed 50°C.

Why choose the Runxin F139A automatic swimming pool valve 24 m³/h?

• Automates swimming pool filter backwashing.
• Reduces manual maintenance and operating costs.
• Helps maintain optimum filtration efficiency.
• Ceramic sealing surfaces provide excellent wear and corrosion resistance.
• Allows pressure switching without shutting down the circulation pump.
• Combines six operating functions into one compact valve.
• Suitable for residential and commercial swimming pool filtration systems.
• Compact side-mounted design simplifies installation and saves space.
