Description

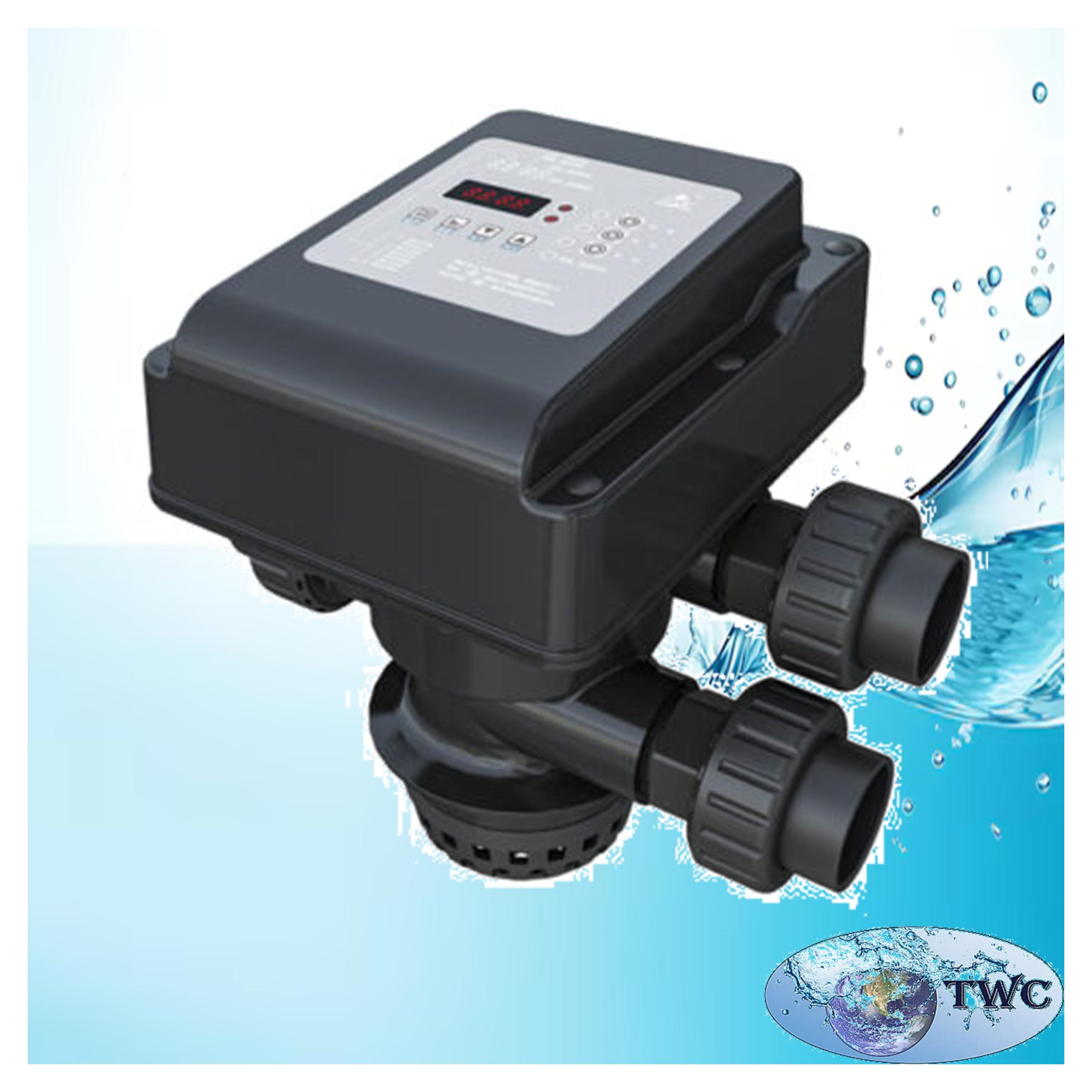

The Runxin F138C Automatic Swimming Pool Valve 12 m³/h is an automatic multiport control valve designed for swimming pool filtration systems. Engineered for residential and commercial pools, it combines six essential operating functions into one compact unit, providing efficient filtration management while improving system performance and reducing maintenance costs.

Featuring Runxin’s advanced ceramic face seal technology, the valve offers excellent wear resistance, corrosion resistance, and long-term reliability. Unlike conventional multiport valves, the F138C can switch between operating modes under pressure without shutting down the pump, simplifying operation and reducing downtime.

The automatic backwash function can be activated by either a preset pressure differential or a programmed time interval, ensuring optimum filter performance while minimising manual maintenance. Its compact side-mounted design also makes it ideal for integrated swimming pool filtration systems where space is limited.

Features:

• Automatic six-function swimming pool control valve.
• Maximum filtration capacity of 12 m³/h.
• Automatic pressure or time-controlled backwash.
• Ceramic face seal technology for exceptional durability.
• Switches operating modes without shutting down the pump.
• Side-mounted design.
• Compact construction for integrated filtration systems.
• Corrosion-resistant materials.
• Automatic and manual backwash operation.

Operating Functions:

• Filter
• Backwash
• Rinse
• Waste
• Recirculate
• Closed

Specifications:

• Maximum Flow Rate: 12 m³/h.
• Operating Pressure: Up to 0.25 MPa.
• Water Temperature: 5°C to 50°C.
• Power Supply: AC 100 to 240 V, 50/60 Hz.
• Valve Type: Automatic side-mounted swimming pool filter valve.
• Application: Swimming pool filtration systems.

Installation:

• Install close to the swimming pool filtration system where practical.
• Leave adequate space for operation and maintenance.
• Protect the valve from direct sunlight and weather exposure.
• Do not install where temperatures may fall below 5°C or exceed 50°C.

Why Choose the Runxin F138C Automatic Swimming Pool Valve 12 m³/h?

• Automates swimming pool filter backwashing.
• Reduces manual maintenance and operating costs.
• Helps maintain optimum filtration efficiency.
• Ceramic sealing surfaces provide outstanding wear and corrosion resistance.
• Allows pressure switching without shutting down the circulation pump.
• Combines six operating functions into one compact valve.
• Suitable for residential and commercial swimming pool filtration systems.
• Compact side-mounted design simplifies installation in integrated filtration equipment.
