Description

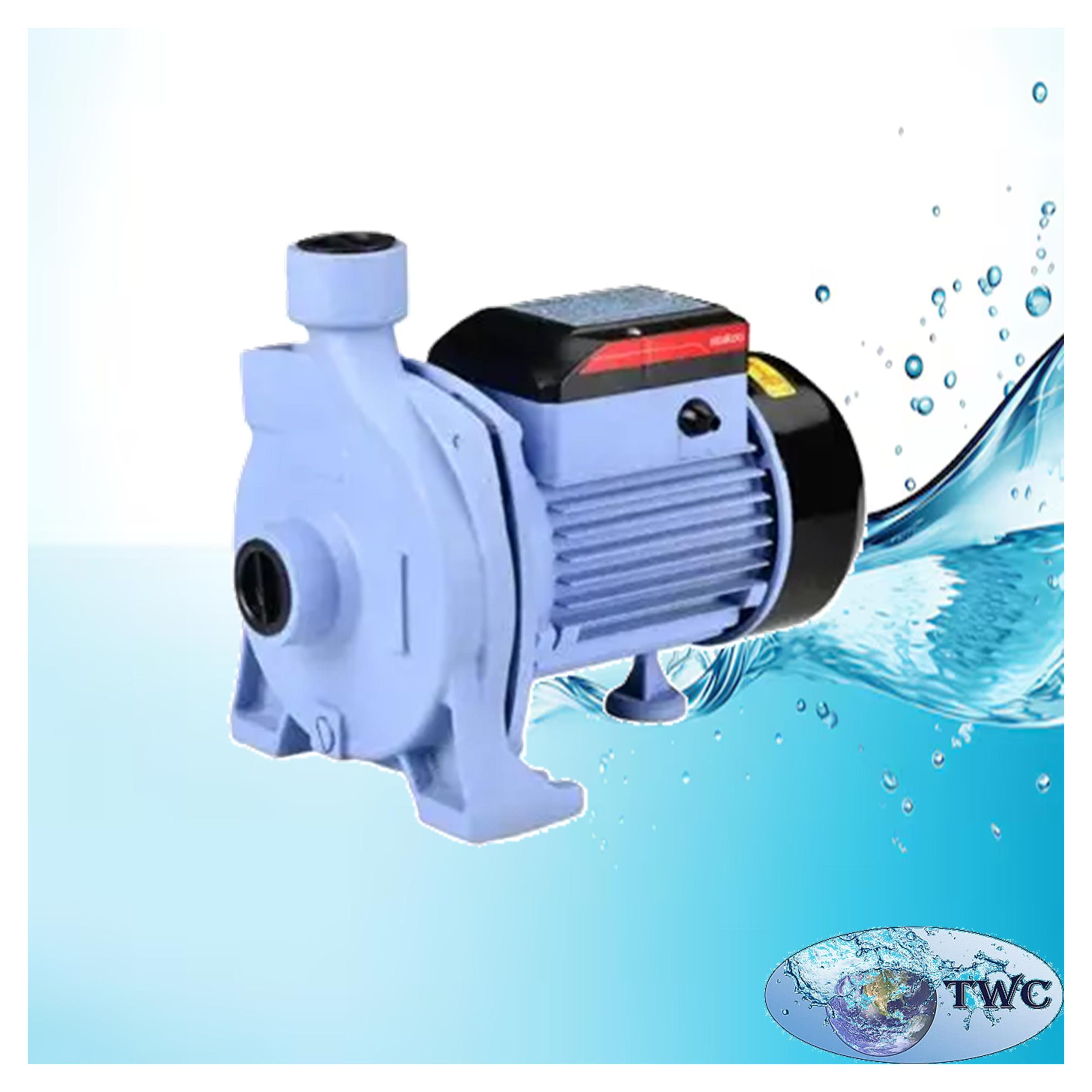

Centrifugal Pump Motor

◆ 2 pole induction motor.

◆Single phase 220V, 50/60Hz; Three phase 380V, 50/60Hz.

◆Insulation: Class B/Class F.

◆Protection:IP44.

◆With capacitor and thermal overload protector.

Centrifugal Pump Material

◆ Pump body: Cast Iron.

◆ Motor support: Aluminum.

◆ Impeller: Brass.

◆ Motor shaft: Stainless Steel or CS45#.

◆ Mechanical seal: Ceramic-Graphite.

◆ 100% copper winding.

Centrifugal Pump Operating Conditions

◆ Suction lift up to 7m.

◆ Liquid temperature up to +40℃.

◆ Ambient temperature up to +40℃.

◆ Max. working pressure: 6bar.
