Description

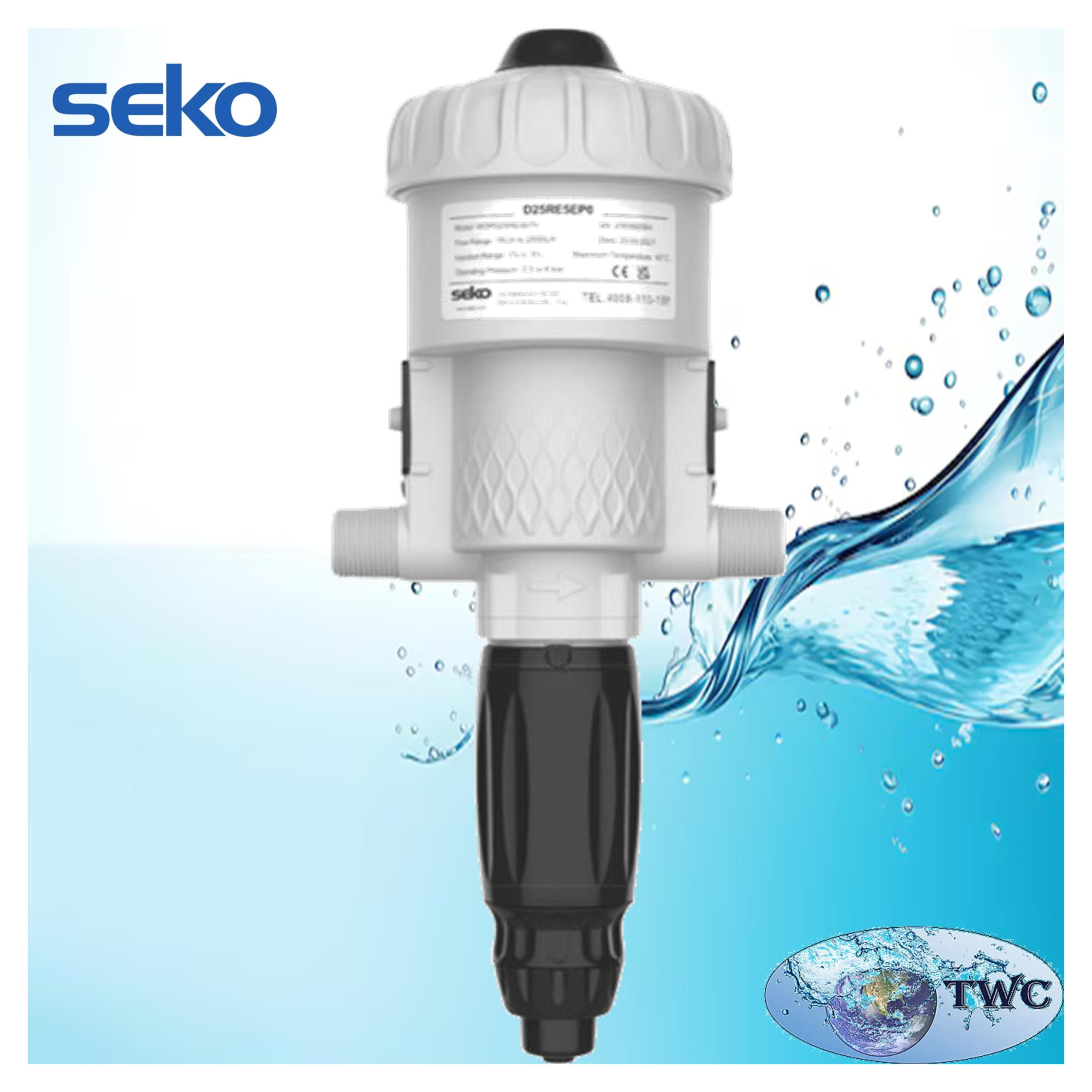

The Seko HYDRAKOS Water-Driven Pump 2500 L/h 0.2-2% PVDF/EPDM is a non-electric proportional chemical dosing pump designed to provide accurate and repeatable chemical injection using only water pressure and flow. Manufactured with a PVDF (Polyvinylidene Fluoride) pump body and EPDM seals, this model offers outstanding chemical resistance and is ideal for dosing alkaline chemicals and many water treatment solutions.
The pump operates without electricity by using a hydraulic piston driven by the water flowing through the system. As water passes through the pump, it proportionally injects a precise amount of chemical, ensuring consistent dosing regardless of fluctuations in water flow or pressure.
Its self-priming design, adjustable dosing ratio, and corrosion-resistant construction make it an excellent solution for agricultural irrigation, drinking water treatment, industrial processing, livestock farming, cooling towers, car wash systems, and chemical injection applications.
Features:
- Non-electric water-driven proportional dosing pump.
- Adjustable dosing ratio from 0.2% to 2%.
- Maximum water flow rate of 2,500 L/h.
- PVDF pump body with exceptional chemical resistance.
- EPDM seals for alkaline chemical compatibility.
- Self-priming operation.
- Accurate and repeatable proportional dosing.
- Injection automatically stops when water flow stops.
- Internal hydraulic drive requires no external power.
- Suitable for fresh water, salt water, and deionised water.
- Compact, lightweight, and easy to install.
- Low operating and maintenance costs.
- Corrosion-resistant construction.
Specifications:
- Model code: WDPD25RE020PE00.
- Series: Seko HYDRAKOS D25RE020.
- Pump type: Water-driven proportional dosing pump.
- Body material: PVDF (Polyvinylidene Fluoride).
- Seal material: EPDM.
- Adjustable dosing range: 0.2% to 2%.
- Water flow range: 10 to 2,500 L/h.
- Maximum chemical viscosity: 400 cPs at 20°C.
- Power supply: Water pressure and flow only (Non-electric).
Applications:
- Drinking water treatment
- Water purification systems
- Agricultural irrigation
- Fertigation systems
- Fertiliser dosing
- Livestock and poultry farming
- Water disinfection
- Cooling towers
- Car wash systems
- Industrial process dosing
- Legionella control
- Mining applications
- Chemical injection systems
Installation:
Install the pump directly into the water supply line following the indicated flow direction. Ensure the operating water pressure and flow remain within the recommended limits. Use compatible suction tubing and ensure the dosed chemical is suitable for PVDF and EPDM wetted materials. For optimum performance, install an inlet filter where debris may be present and inspect the seals and suction line periodically as part of routine maintenance.
Why choose the Seko HYDRAKOS water-driven pump 2500 L/h 0.2-2% PVDF/EPDM?
- Provides precise proportional chemical dosing without electricity.
- Outstanding chemical compatibility with the PVDF pump body.
- EPDM seals are ideal for alkaline chemicals and sodium-based solutions.
- Adjustable dosing ratio from 0.2% to 2% for accurate chemical control.
- Water-driven operation reduces installation and running costs.
- Self-priming design allows quick commissioning.
- Automatically stops dosing when water flow stops, preventing chemical waste.
- Durable corrosion-resistant construction ensures long service life.
- Suitable for agricultural, commercial, industrial, and water treatment applications.
- Trusted SEKO engineering for reliable and consistent dosing performance.
HYDRAKOS – Water-Driven Pumps
