Description

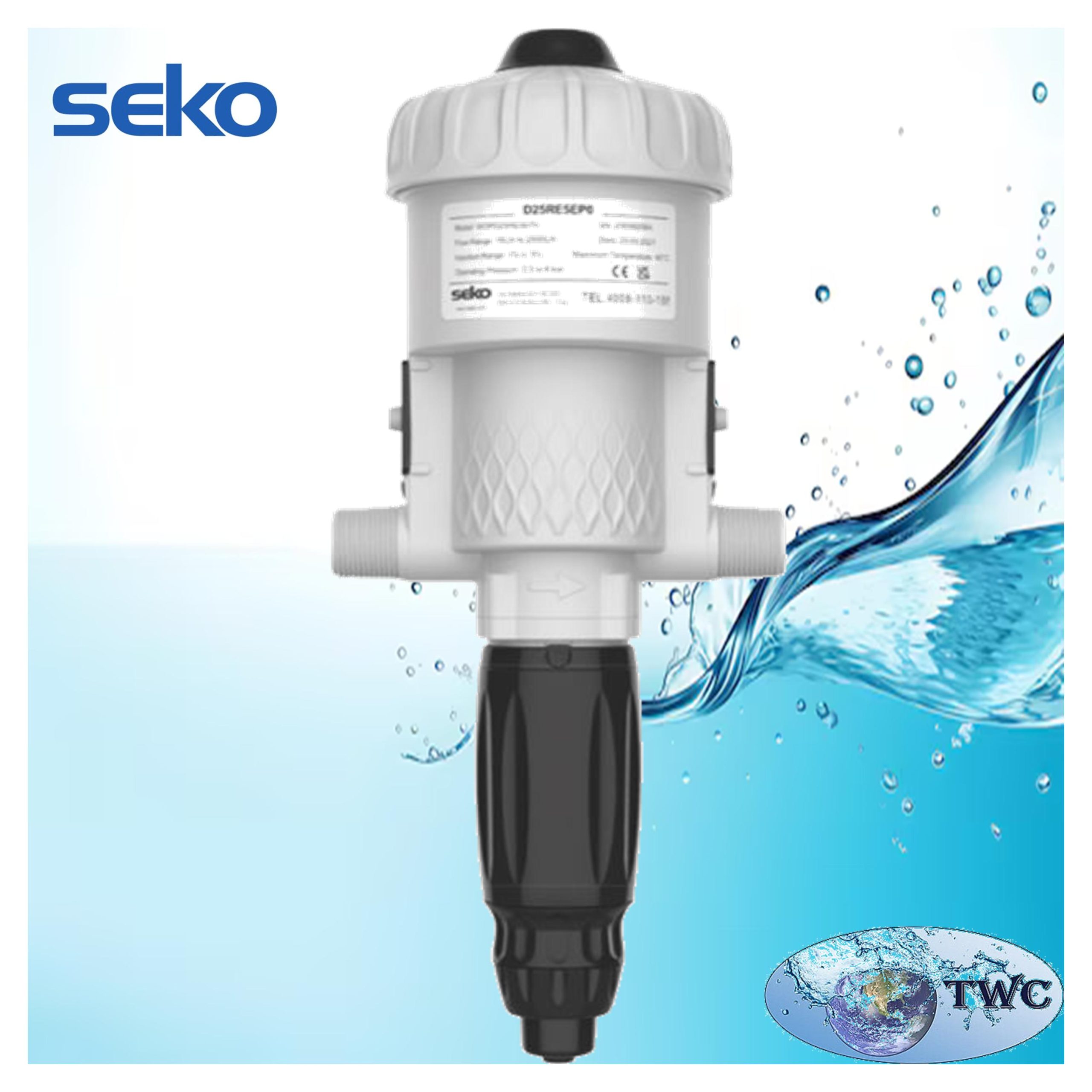

The Seko HYDRAKOS – Water-Driven Pumps 2500 l/ph 0,2-2% PVDF/FPM is a non-electric proportional chemical dosing pump designed to deliver accurate and repeatable chemical injection using only water pressure and flow. Manufactured with a PVDF (Polyvinylidene Fluoride) pump body and FPM (Viton®) seals, this model offers outstanding chemical compatibility and is ideal for dosing a wide range of aggressive chemicals, solvents, acids, oxidising agents, and water treatment chemicals.

Powered entirely by a hydraulic piston, the pump automatically injects chemicals in direct proportion to the water flow, ensuring precise dosing regardless of changes in water pressure or flow rate. The self-priming design, adjustable dosing ratio, and corrosion-resistant construction make it suitable for demanding agricultural, industrial, commercial, and water treatment applications

Features:

• Water-driven proportional dosing pump.
• No electrical power required.
• Adjustable dosing range from 0.2% to 2%.
• Maximum water flow rate of 2,500 L/h.
• PVDF pump body with exceptional chemical resistance.
• FPM (Viton®) seals for excellent compatibility with aggressive chemicals.
• Self-priming operation.
• Accurate and repeatable proportional dosing.
• Injection automatically stops when water flow stops.
• Suitable for fresh, salt, and deionised water.
• Compact, lightweight, and easy to install.
• Low operating and maintenance costs.
• Corrosion-resistant construction.

Specifications:

• Model Code: WDPD25RE020FP00.
• Series: Seko HYDRAKOS D25RE020.
• Pump Type: Water-driven proportional dosing pump.
• Body Material: PVDF (Polyvinylidene Fluoride).
• Seal Material: FPM (Viton®).
• Adjustable Dosing Range: 0.2% to 2%.
• Water Flow Range: 10 to 2,500 L/h.
• Maximum Chemical Viscosity: 400 cPs at 20°C.
• Power Supply: Water pressure and flow only (Non-electric).

Applications:

• Drinking water treatment.
• Water purification systems.
• Agricultural irrigation.
• Fertigation systems.
• Fertiliser dosing.
• Livestock and poultry farming.
• Water disinfection.
• Cooling towers.
• Car wash systems.
• Industrial process dosing.
• Legionella control.
• Mining applications.
• Chemical injection systems.

Installation:

Install the pump directly into the water supply line following the indicated flow direction. Ensure the operating water pressure and flow remain within the recommended limits. Use compatible suction tubing and confirm that the chemical being dosed is suitable for PVDF and FPM (Viton®) wetted materials. For optimum performance, install an inlet filter where debris may be present and periodically inspect the seals and suction line as part of routine maintenance.

Why Choose the Seko HYDRAKOS – Water-Driven Pumps 2500 L/ph 0,2-2% PVDF/FPM?

• Provides precise proportional chemical dosing without electricity.
• Outstanding chemical compatibility with the PVDF pump body.
• FPM (Viton®) seals offer excellent resistance to aggressive chemicals, solvents, and acids.
• Adjustable dosing ratio from 0.2% to 2% for precise chemical control.
• Water-driven operation reduces installation and operating costs.
• Self-priming design simplifies commissioning.
• Automatically stops dosing when water flow stops, preventing chemical waste.
• Durable corrosion-resistant construction ensures a long service life.
• Suitable for agricultural, commercial, industrial, and water treatment applications.
• Trusted SEKO engineering for reliable, accurate, and consistent chemical dosing.

HYDRAKOS – Water-Driven Pumps
