Description

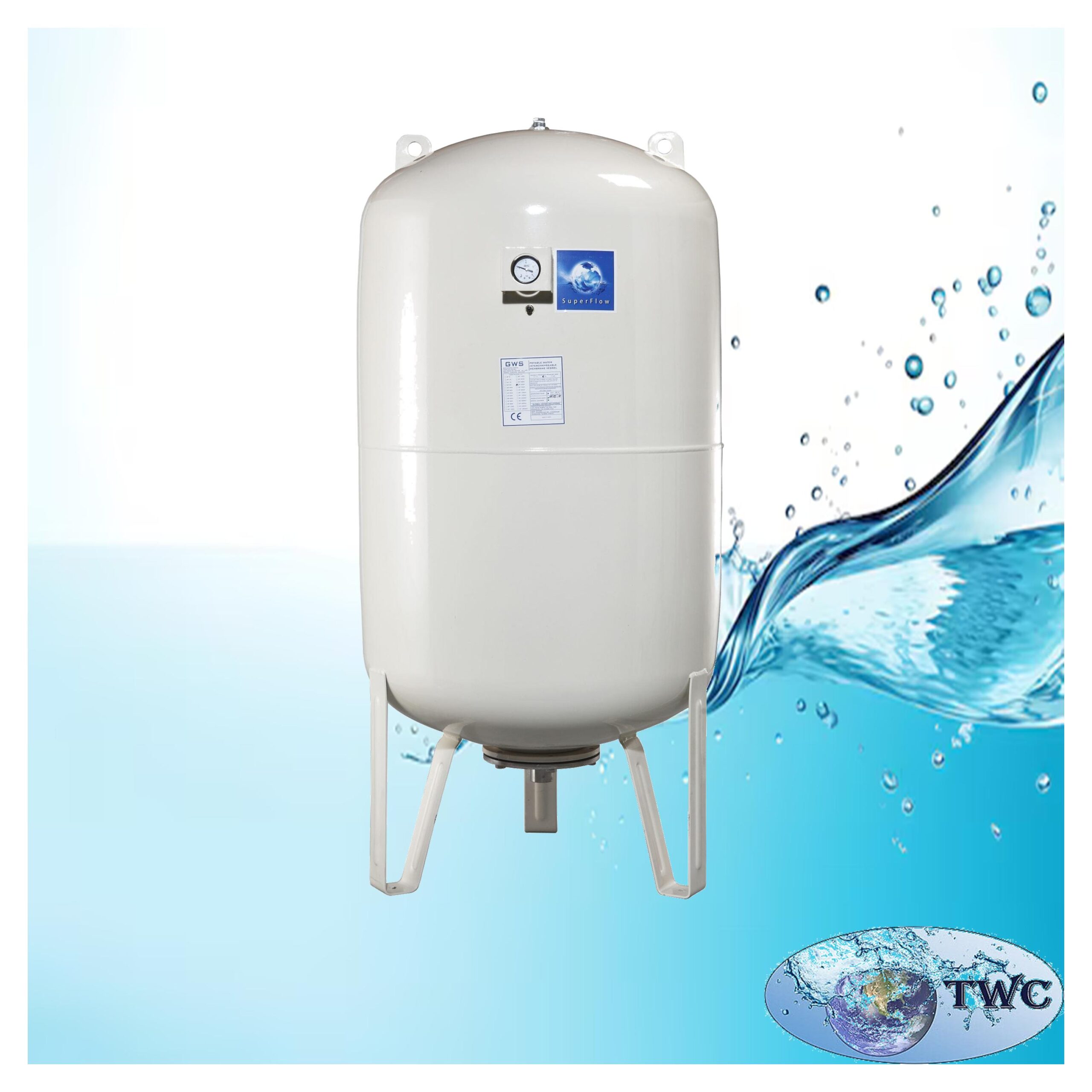

The Global Water Solutions SuperFlow™ 1000-Liter 10 Bar Pressure Tank is a heavy-duty industrial pressure vessel engineered for high-volume water storage and pressure management in demanding commercial, industrial, and municipal applications. Manufactured by Global Water Solutions (GWS), the SuperFlow™ Series is designed to deliver outstanding reliability, long service life, and exceptional performance where large water reserves and stable system pressure are essential.
The SuperFlow™ 1000L Vertical Pressure Tank (Model: SFB-INT-1000LV) features a replaceable high-grade butyl membrane, allowing for quick and cost-effective maintenance without replacing the complete tank. This advanced design keeps water completely separated from the air chamber, preventing waterlogging, maintaining consistent pressure, and significantly reducing pump cycling to improve system efficiency and extend pump life.
Constructed from heavy-duty carbon steel and protected with a durable powder-coated finish, the SuperFlow™ tank is designed to withstand harsh operating environments while providing excellent corrosion resistance. Integrated lifting lugs simplify transportation and installation, while the built-in pressure gauge allows for convenient system monitoring. Designed in accordance with EN13831:2007 and the Pressure Equipment Directive 2014/68/EU, the SuperFlow™ series meets internationally recognised quality and safety standards.
The 1000-liter model is ideal for high-rise buildings, commercial pressure booster systems, municipal water networks, district heating systems, industrial process water, hotels, hospitals, and other high-demand applications where dependable pressure and high water volumes are required.
Features:
- 1000-Liter vertical pressure tank.
- Manufactured by Global Water Solutions (GWS).
- SuperFlow™ Series.
- Model: SFB-INT-1000LV.
- Maximum working pressure: 10 Bar (150 psi).
- Replaceable high-grade butyl membrane.
- Heavy-duty carbon steel shell.
- Durable powder-coated corrosion-resistant finish.
- Built-in pressure gauge for easy monitoring.
- Patented stainless steel water connection.
- Integrated lifting lugs for easier handling and installation.
- Reduces pump cycling and extends pump life.
- Maintains stable and consistent water pressure.
- Factory pre-charged for immediate installation.
- Designed for continuous heavy-duty operation.
- Manufactured in ISO 9001, ISO 14001 and ISO 45001 certified facilities.
- Complies with EN13831:2007 and the Pressure Equipment Directive 2014/68/EU.
Specifications:
- Brand: Global Water Solutions (GWS).
- Series: SuperFlow™.
- Model: SFB-INT-1000LV.
- Tank type: Vertical steel pressure tank.
- Nominal capacity: 1000 Litres.
- Maximum working pressure: 10 Bar (150 psi).
- Factory pre-charge: 4 Bar (58 psi).
- Maximum operating temperature: 95°C.
- Minimum operating temperature: -10°C (avoid freezing).
- Membrane: Replaceable high-grade butyl membrane.
- Construction: Heavy-duty carbon steel shell.
- Water connection: 2″ BSPT Male.
- Diameter: 806 mm.
- Height: 2376 mm.
- Gross weight: Approximately 169 kg.
- Colour: Almond.
- Orientation: Vertical.
- Application: High-volume pressure boosting and water storage.
Applications:
- High-rise residential buildings.
- Commercial pressure booster systems.
- Hotels and resorts.
- Hospitals and healthcare facilities.
- Municipal water distribution.
- Industrial process water systems.
- Manufacturing plants.
- Water treatment and reverse osmosis plants.
- District heating water circulation.
- Agricultural water supply.
- Large irrigation systems.
- High-volume water utility installations.
Why Choose the Global Water Solutions SuperFlow™ 1000-Liter Pressure Tank?
- Designed specifically for high-capacity commercial, industrial, and municipal applications.
- Replaceable butyl membrane reduces maintenance costs and extends service life.
- Reduces pump cycling to improve system efficiency and lower energy consumption.
- Maintains stable and reliable water pressure across large-scale installations.
- Heavy-duty carbon steel construction provides exceptional strength and durability.
- Powder-coated finish delivers outstanding corrosion resistance.
- Built-in pressure gauge allows for convenient system monitoring.
- Integrated lifting lugs simplify transportation and installation.
- Complies with internationally recognised quality and safety standards.
- Ideal for continuous-duty applications requiring dependable long-term performance.
