Description

The Global Water Solutions SuperFlow™ 500-Liter 16 Bar Pressure Tank is a premium heavy-duty steel pressure vessel designed to deliver reliable pressure regulation and fluid expansion in demanding high-pressure applications. Manufactured by Global Water Solutions (GWS), the SuperFlow™ SMB Series is engineered for exceptional durability, long-term reliability, and superior performance in commercial, industrial, municipal, and infrastructure water systems.

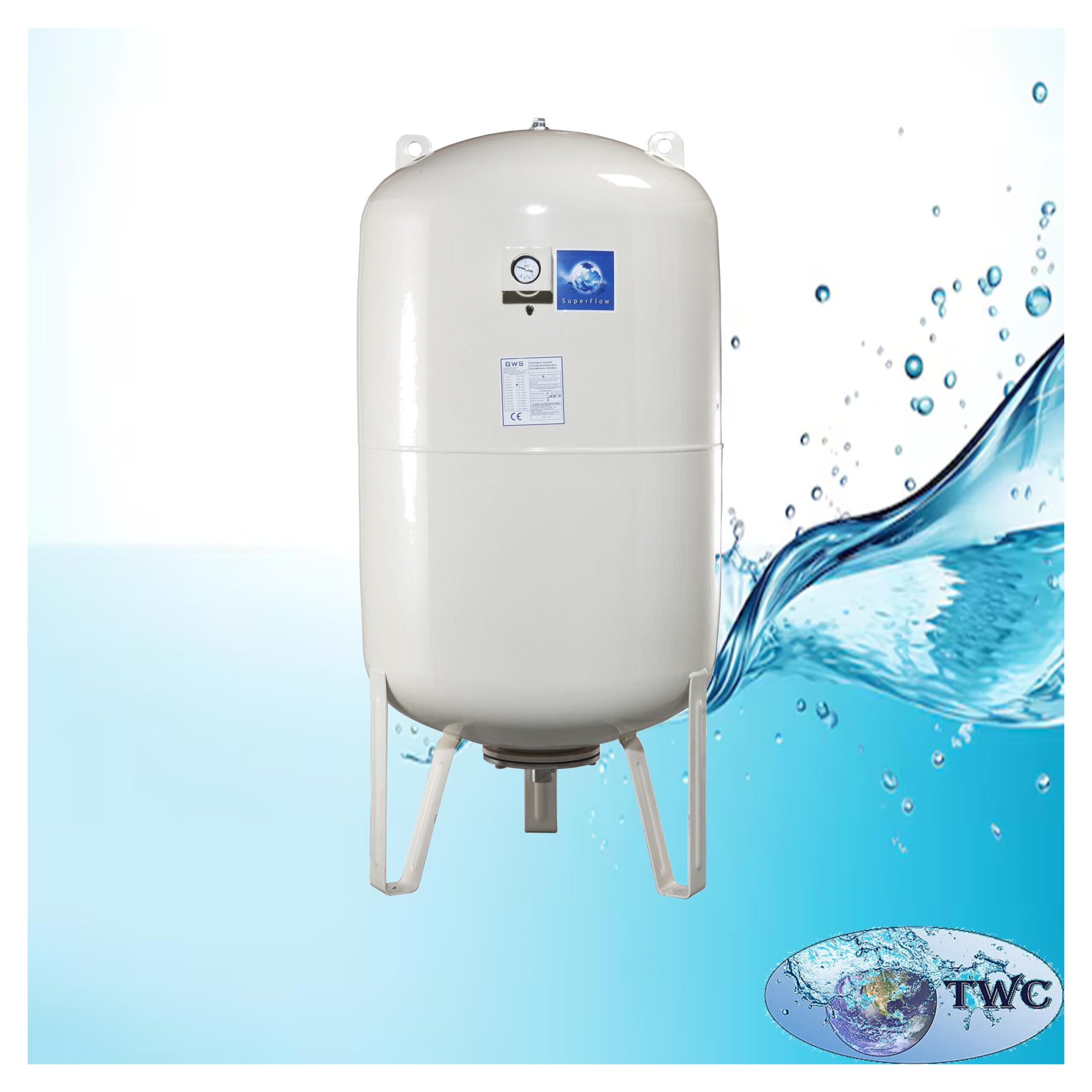

The SuperFlow™ 500L Vertical Pressure Tank (Model: SMB-INT-500LV-BTL) features a replaceable high-grade butyl membrane that completely separates water from the compressed air chamber. This advanced design prevents waterlogging, maintains stable system pressure, reduces pump cycling, and allows for cost-effective maintenance by enabling membrane replacement without replacing the entire pressure vessel.

Constructed from heavy-duty carbon steel and protected by a durable powder-coated finish, the tank offers excellent resistance to corrosion and harsh operating conditions. The integrated lifting lugs simplify transportation and installation, while the built-in pressure gauge provides convenient system monitoring.

Designed in accordance with EN13831:2007 and the Pressure Equipment Directive (PED) 2014/68/EU, the SuperFlow™ 500-Liter Pressure Tank meets internationally recognised quality and safety standards. With a maximum operating pressure of 16 Bar (232 psi), it is ideally suited for commercial hot water circulation, pressure booster systems, municipal water networks, reverse osmosis plants, industrial process water, and other high-volume, high-pressure applications.

Features:

• 500-Liter vertical steel pressure tank.
• Manufactured by Global Water Solutions (GWS).
• SuperFlow™ SMB Series.
• Model: SMB-INT-500LV-BTL.
• Maximum working pressure: 16 Bar (232 psi).
• Replaceable high-grade butyl membrane.
• Complete separation of water and compressed air.
• Heavy-duty carbon steel construction.
• Durable corrosion-resistant powder-coated finish.
• Built-in pressure gauge for easy monitoring.
• Patented stainless steel water connection.
• Integrated lifting lugs for easy transportation and installation.
• Reduces pump cycling and extends pump lifespan.
• Improves system efficiency and reduces energy consumption.
• Factory pre-charged for quick installation.
• Suitable for potable water systems.
• Manufactured in ISO 9001, ISO 14001, and ISO 45001 certified facilities.
• Complies with EN13831:2007 and the Pressure Equipment Directive (PED) 2014/68/EU.

Specifications:

• Brand: Global Water Solutions (GWS).
• Series: SuperFlow™ SMB.
• Model: SMB-INT-500LV-BTL.
• Tank type: Vertical steel pressure tank.
• Nominal capacity: 500 Litres.
• Maximum working pressure: 16 Bar (232 psi).
• Factory pre-charge: 4 Bar (58 psi).
• Maximum operating temperature: 95°C.
• Minimum operating temperature: -10°C (avoid freezing).
• Membrane: Replaceable high-grade butyl membrane.
• Construction: Heavy-duty carbon steel shell.
• Water connection: 1¼” BSPT Male.
• Height: 1565 mm.
• Diameter: 760 mm.
• Gross weight: Approximately 160 kg.
• Colour: Almond.
• Orientation: Vertical.

Applications:

• High-rise residential buildings.
• Commercial pressure booster systems.
• Industrial process water systems.
• Municipal water distribution.
• Hotels and resorts.
• Hospitals and healthcare facilities.
• Manufacturing plants.
• Reverse osmosis and water treatment plants.
• Agricultural irrigation systems.
• Water utility infrastructure.
• District heating water circulation.
• High-pressure water supply systems.

Why Choose the SuperFlow™ 500-Liter 16 Bar Pressure Tank?

• Designed specifically for demanding high-pressure applications up to 16 Bar.
• Replaceable membrane design reduces long-term maintenance costs.
• Complete separation of water and compressed air prevents waterlogging.
• Heavy-duty carbon steel construction ensures exceptional durability.
• Powder-coated protection provides excellent corrosion resistance.
• Reduces pump cycling to extend pump and motor lifespan.
• Improves system efficiency and lowers energy consumption.
• Integrated lifting lugs simplify installation and handling.
• Built-in pressure monitoring allows for quick system checks.
• Manufactured to internationally recognised quality and safety standards for dependable long-term performance.
