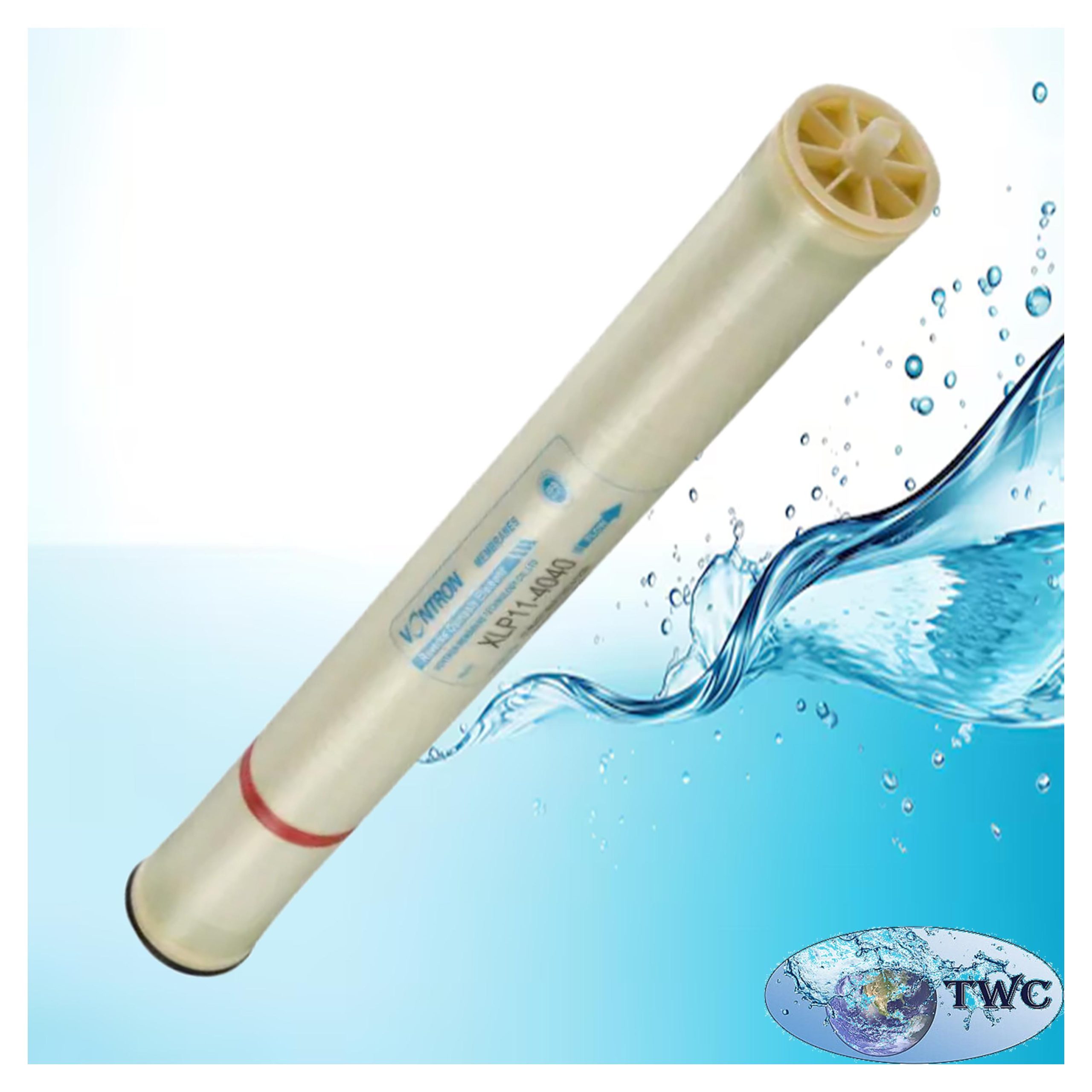

Vontron reverse osmosis membrane XLP11-4040

R3,631.30

INCLUDING VAT

Please note that shipping and installation is not included.

XLP11-4040 – Newly developed by Vontron Technology Co., Ltd. XLP series of extremely low-pressure aromatic polyamide compound membrane elements can work under ultra-low pressure to reach as high permeate flow and salt rejection as regular low-pressure membrane element can, and is applicable to desalination of surface water and underground water. It operates under approximately half the operating pressure of a regular low-pressure composite membrane and achieves a salt rejection rate of up to 99.0%, which can decrease the investment costs for such relevant facilities as pump, piping, and container, etc. and the operating cost for the RO system, thus increasing the economic efficiency.

Description

Vontron Reverse Osmosis Membrane XLP11-4040 series of extremely low-pressure aromatic polyamide compound membrane elements can work under ultra-low pressure to reach as high permeate flow and salt rejection as regular low-pressure membrane elements can, and is applicable to desalination of surface water and underground water.

It operates under approximately half the operating pressure of a regular low-pressure composite membrane and achieves a salt rejection rate of up to 99.0%, which can decrease the investment costs for such relevant facilities as pump, piping, and container, etc. and the operating cost for the RO system, thus increasing the economic efficiency.

Being suitable for the desalination treatment of those water sources with low salinity not requiring high salt rejection such as surface water, underground water, tap water, and municipal water, which have a salt concentration lower than 1000 ppm, XLP series of membrane elements is particularly applicable to the second-pass desalination with two-pass RO system, and is mainly applied to numerous applications of various scales, such as pure water production, boiler water replenishment, foodstuff processing, and pharmaceutical production.

Model Active Membrane
Area ft2(m2)
Average Permeate
GPD(m3/d)
Stable Rejection
Rate %
Min. Rejection
Rate %
XLP11-4040 90(8.4) 2000(7.6) 98.0 97.5
Testing
Conditions
Testing Pressure
Testing Solution Temperature
Concentration of Testing Solution (NaCl)
pH value of Testing Solution
Recovery Rate of Single Element
100 psi (0.69MPa)
25˚C
500ppm
7.5
15%
Operation Limits & Conditions Max. Working Pressure
Max. Volume of Feedwater
Max. Temperature of Feedwater
Max. Feedwater SDI15
pH Range of Feedwater during Continuous Operation
pH Range of Feed Water during Chemical Cleaning
Residual Chlorine Concentration of Feed Water
Max. Pressure Drop of Single Membrane Element
Max. Pressure Drop of Single Pressure Vessel with Six RO Membranes
600psi(4.14MPa)
16gpm(3.6 m3/h)
4˚C
5
3~10
2~12
<0.1ppm
15psi (0.1MPa)
50psi (0.34MPa)
Vontron reverse osmosis membrane XLP11-4040
