Description

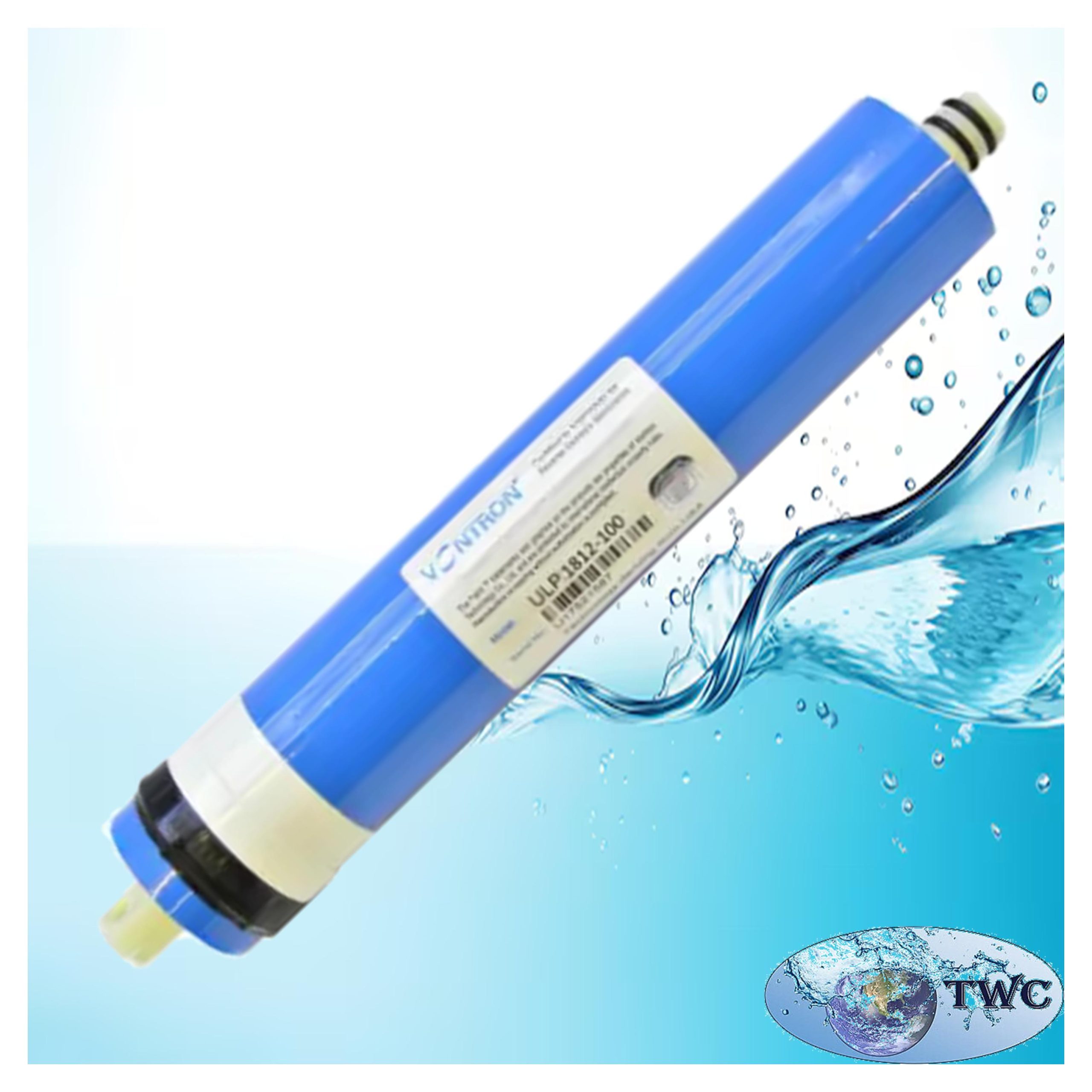

The Vontron 2012 100 GPD Reverse Osmosis Membrane is a high-quality replacement membrane designed for domestic reverse osmosis water purification systems. With a rated production capacity of up to 100 gallons per day (approximately 380 litres per day), it provides reliable purification performance and excellent rejection of dissolved salts and other common contaminants.

The membrane is suitable for residential drinking water systems and is designed to provide consistently high-quality purified water when operated with appropriate pre-treatment and within the specified operating conditions.

Features:

• 100 GPD permeate production capacity.
• Designed for domestic reverse osmosis systems.
• High rejection of dissolved salts and contaminants.
• Thin-film composite membrane technology.
• Compact 2012 membrane format.
• Reliable and consistent purification performance.
• Suitable for residential drinking water applications.
• Long service life when correctly maintained.
• Compatible with suitable standard 2012 RO membrane housings.

Specifications:

• Model: Vontron 2012 100 GPD.
• Membrane Type: Reverse Osmosis (RO).
• Active Membrane Area: 3.5 ft² (0.32 m²).
• Average Permeate Flow: 100 GPD.
• Stable Rejection Rate: 98.0%.
• Minimum Rejection Rate: 96.0%.

Testing Conditions:

• Testing Pressure: 60 psi (0.41 MPa).
• Testing Solution Temperature: 25°C.
• Testing Solution Concentration: 250 ppm NaCl.
• Testing Solution pH: 6.5–8.5.
• Single Element Recovery: 15%.

Operating Limits:

• Maximum Working Pressure: 200 psi (1.38 MPa).
• Maximum Feed Water Temperature: 45°C.
• Maximum Feed Water SDI: 5.
• Maximum Free Chlorine Concentration: <0.1 ppm.
• Continuous Operating pH Range: 3–10.
• Chemical Cleaning pH Range: 2–12.
• Maximum Pressure Drop per Membrane Element: 10 psi (0.07 MPa).

Applications:

• Domestic reverse osmosis water purification systems.
• Residential drinking water systems.
• Under-counter RO systems.
• Point-of-use water purification.
• Replacement of compatible 2012 RO membranes.
• Household water purification applications.

Why Choose the Vontron 2012 100 GPD RO Membrane?

• 100 GPD capacity provides a reliable supply of purified water for domestic applications.
• 98% stable rejection rate helps reduce dissolved salts and other contaminants.
• Compact 2012 design makes it suitable for compatible domestic RO membrane housings.
• Reliable performance for everyday residential water purification.
• Wide operating range when operated within the manufacturer’s specified conditions.
• Cost-effective replacement for compatible domestic RO systems.
• Long service life when protected by suitable pre-treatment and maintained correctly.
