Description

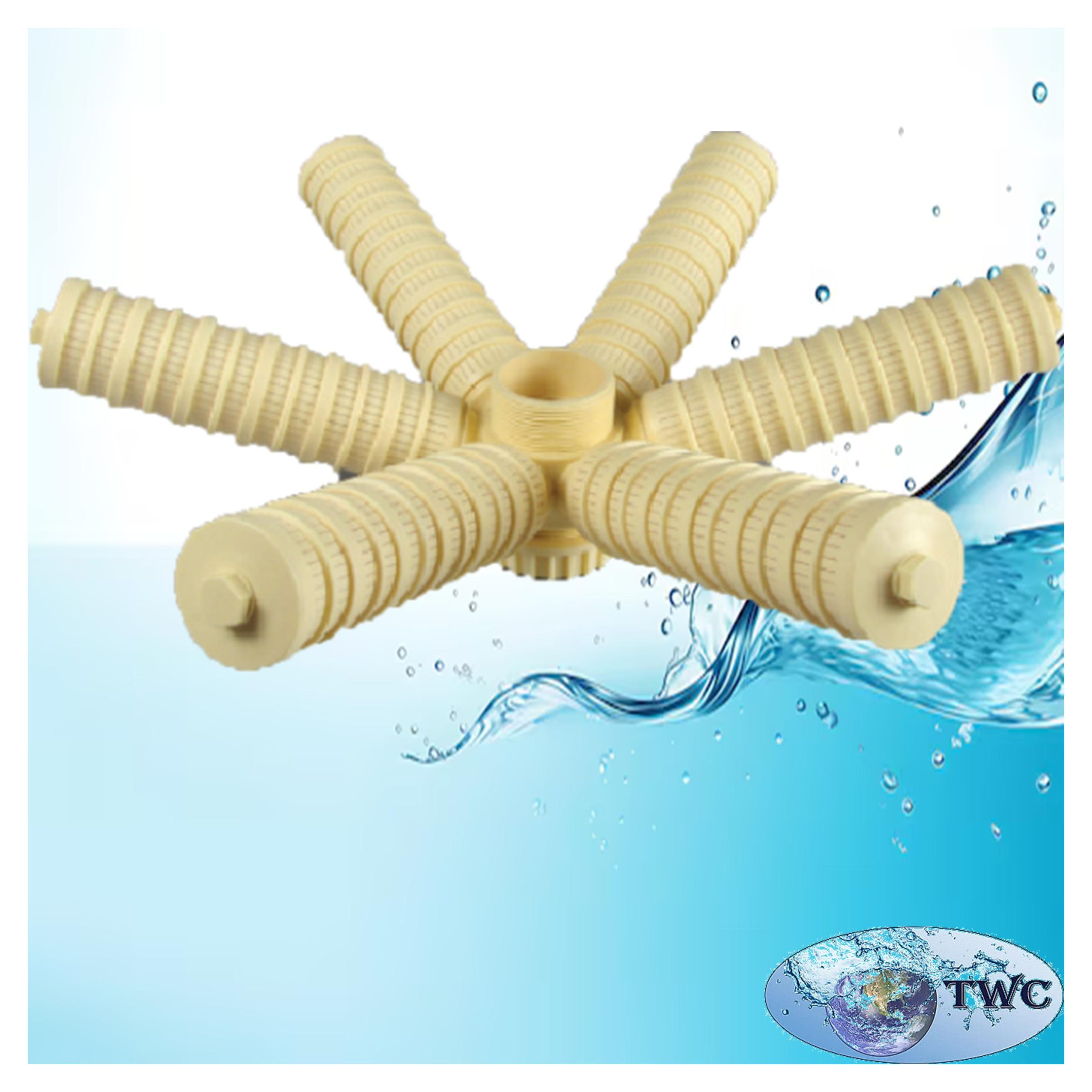

The Bottom Distributor High Flow Bayonet for 36″ Tank with 4″ Mount is a high-flow internal distributor designed for compatible 36″ diameter FRP water-treatment vessels. Installed at the bottom of the vessel, it works together with the central riser or lifting tube to distribute water through the treatment media and collect treated water during normal filtration.

The distributor features calibrated slots that allow water to pass through while helping retain the treatment media within the vessel. By promoting more even water distribution across the media bed, the distributor helps increase contact between the water and treatment media while reducing the risk of channeling.

It is suitable for compatible media-based water-treatment systems, including water softening, iron filtration, activated carbon filtration, sediment filtration, backwashing and up-flow filtration applications.

Features:

• High-flow bottom distributor.
• Bayonet-style design.
• Designed for compatible 36″ FRP filter vessels.
• 4″ mounting connection.
• Designed for high-flow water-treatment applications.
• Helps distribute water evenly through the treatment media.
• Helps reduce channeling through the media bed.
• Collects treated water and directs it to the central riser/lifting tube.
• Helps prevent filter media from entering the water-flow pathway.
• Suitable for backwashing systems.
• Suitable for up-flow filtration systems.
• Durable, impact-resistant plastic construction.
• Calibrated slots for controlled water flow.
• Designed to work with compatible FRP riser/lifting tube assemblies.
• Suitable for a variety of water-treatment media.

Specifications:

• Product type: Bottom distributor.
• Design: Bayonet.
• Flow type: High flow.
• Suitable tank diameter: 36″.
• Mounting connection: 4″.
• Dimension L1: 331 mm.
• Dimension L2: 710 mm.
• Dimension L3: 175 mm.
• Slot size / total slot area: 0.2 mm / 15.84 cm².
• Material: Durable, impact-resistant plastic.
• Installation position: Bottom of FRP vessel.
• Application: FRP water-treatment vessels.

Applications:

1. Water Softening:

Used in compatible water-softening vessels containing ion-exchange resin. The distributor helps distribute water through the resin bed and collect the treated water.

2. Iron Filtration:

Suitable for compatible iron-removal media systems where even water distribution and effective water collection are required.

3. Activated Carbon Filtration:

Used in activated carbon filter vessels to distribute water through the carbon media and collect treated water.

4. Sediment Filtration:

Suitable for compatible media-based sediment filtration systems.

5. Backwashing Filter Systems:

Suitable for systems where the treatment media is periodically backwashed to remove accumulated contaminants.

6. Up-Flow Filtration:

Suitable for compatible up-flow filtration systems where water is distributed through the media in the required flow direction.

How the Bottom Distributor Works:

The bottom distributor is installed at the base of the FRP vessel and works together with the central riser or lifting tube.

During normal filtration:

Water enters the vessel
↓
Water flows through the treatment media
↓
Treated water reaches the bottom distributor
↓
The distributor collects the treated water
↓
Water enters the central riser/lifting tube
↓
Water returns through the filter head

The calibrated slots allow water to pass through the distributor while helping retain the treatment media inside the vessel. This helps promote more even water distribution through the media bed and can reduce channeling.

During backwashing, the flow direction is reversed. Water enters through the riser and distributor before flowing upward through the media bed. The upward flow loosens the media and carries accumulated contaminants out through the filter head.
