Description

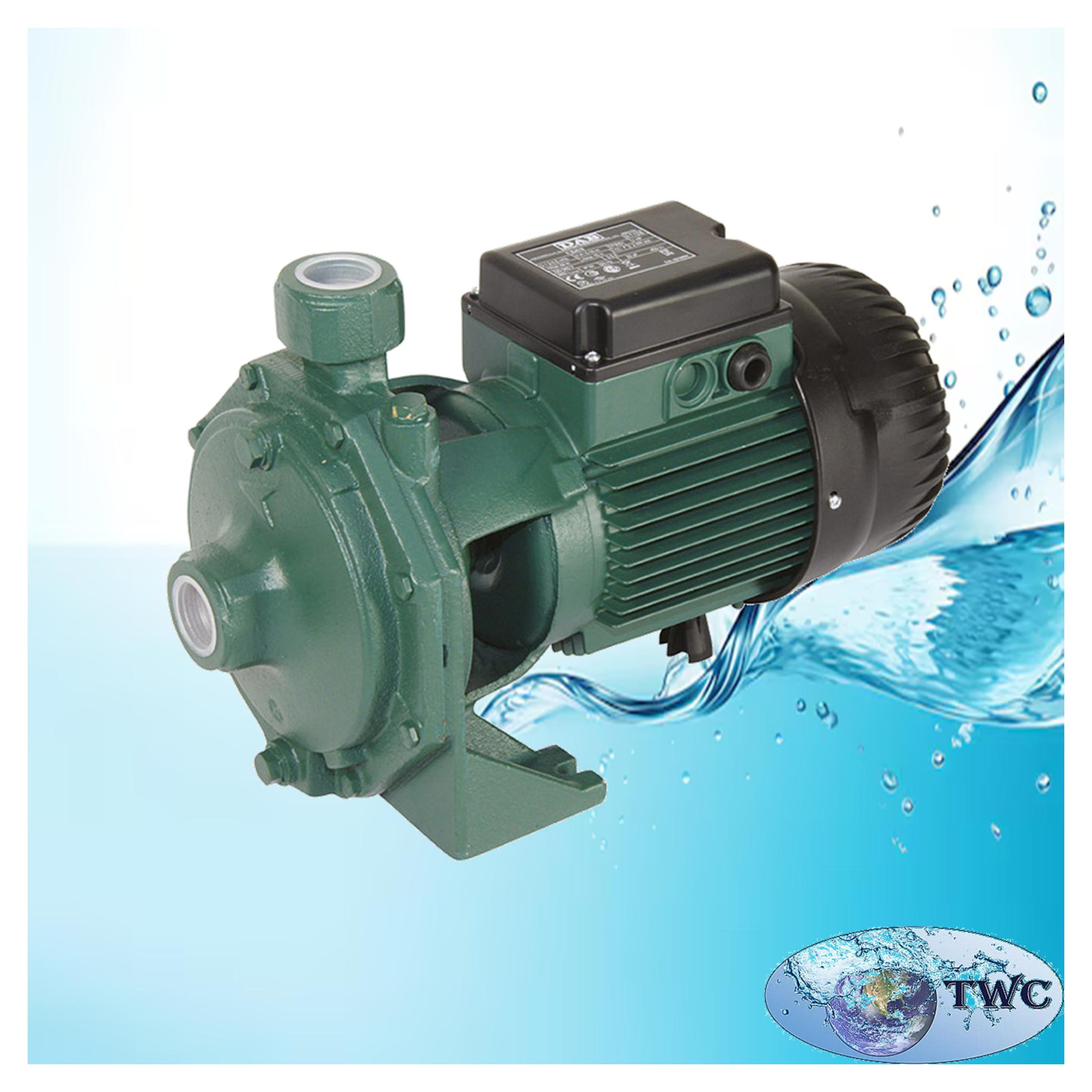

The DAB Centrifugal Double Impeller K Pump 1.1kW – Single Phase K35/100 is a premium twin-impeller centrifugal pump designed to deliver exceptional pressure and reliable water flow for domestic, agricultural, commercial, and light industrial applications. Its double-impeller design provides significantly higher pressure than a conventional single-impeller pump, making it ideal for demanding pressure boosting systems, irrigation, water transfer, and general water supply installations.
Powered by a 1.1kW (1.5 HP) single-phase motor, the K35/100 delivers dependable, energy-efficient performance with quiet operation and minimal maintenance. The heavy-duty cast iron pump body, corrosion-resistant stainless steel shaft, and carbon/ceramic mechanical seal ensure long-lasting durability and reliable operation under continuous service.
Designed for pumping clean, non-abrasive water free from suspended solids, the DAB K35/100 is perfectly suited for pressurisation units, pressure vessel systems, sprinkler irrigation, and water transfer applications where high pressure is essential. The pump can be installed in either a horizontal or vertical position, provided the motor remains above the pump.
Features:
- Twin-impeller centrifugal pump for high-pressure applications.
- 1.1kW (1.5 HP) single-phase motor.
- 220–240V, 50Hz power supply.
- High-pressure performance for pressure boosting systems.
- Maximum flow rate: up to 10.2 m³/h (170 L/min).
- Maximum head: up to 97 metres.
- Heavy-duty cast iron pump body.
- Cast iron motor support.
- Technopolymer twin impellers.
- Carbon/ceramic mechanical seal.
- Stainless steel motor shaft.
- Built-in thermal overload protection.
- Quiet, energy-efficient operation.
- Suitable for horizontal or vertical installation (motor positioned above the pump).
- Easy installation and low maintenance.
Specifications:
- Pump model: K35/100 M.
- Pump type: Twin-impeller centrifugal pump.
- Motor power: 1.1kW (1.5 HP).
- Power supply: 220–240V, Single phase, 50Hz.
- Maximum flow rate: 10.2 m³/h (170 L/min).
- Maximum head: 97 m.
- Maximum operating pressure: 6 bar.
- Inlet connection: 1½”.
- Outlet connection: 1″.
- Liquid temperature: -10°C to +50°C.
- Maximum ambient temperature: +40°C.
- Protection class: IP44.
- Insulation class: F.
- Pump body: Cast iron.
- Impellers: Technopolymer.
- Mechanical seal: Carbon/Ceramic.
- Motor shaft: AISI 303 stainless steel.
- Suitable for: Clean, non-abrasive, chemically neutral water.
Applications:
- Domestic water supply.
- Pressure boosting systems.
- Irrigation and sprinkler systems.
- Water transfer.
- Pressure vessel systems.
- Commercial buildings.
- Agricultural water supply.
- Industrial water circulation.
- General clean water distribution.
