Description

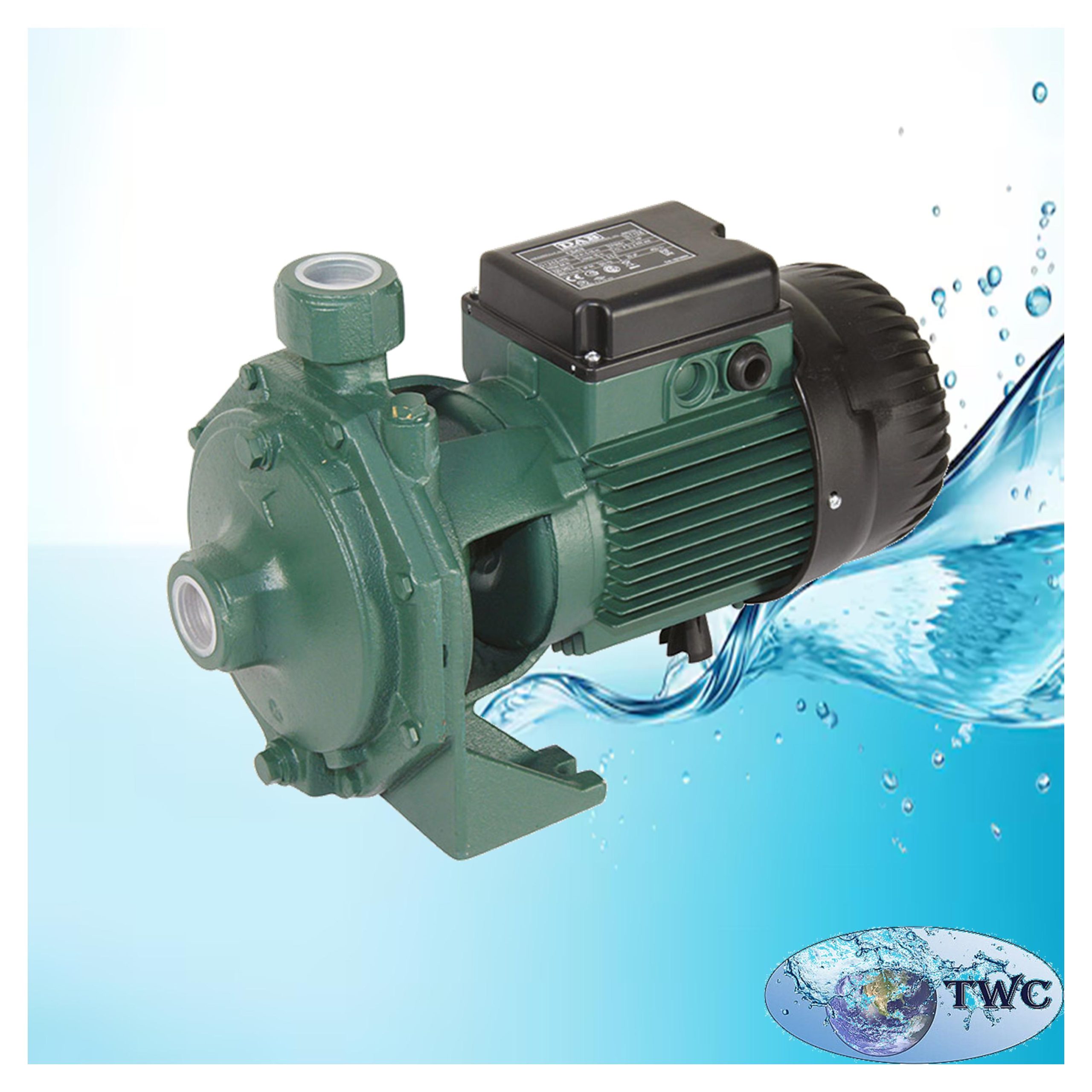

The DAB Centrifugal Double Impeller K Pump 1.8kW – Single Phase K40/100 is a premium heavy-duty twin-impeller centrifugal pump engineered to provide outstanding pressure and reliable water delivery for demanding domestic, agricultural, commercial, and industrial applications. Its advanced double-impeller hydraulic design delivers exceptional pressure performance, making it the ideal choice for pressure boosting systems, pressure vessels, irrigation networks, water transfer, and high-demand water supply installations.
Powered by a 1.8kW (2.5 HP) single-phase motor, the K40/100 combines powerful performance with energy-efficient operation. The pump features a robust cast iron pump body, corrosion-resistant stainless steel motor shaft, durable technopolymer impellers, and a carbon/ceramic mechanical seal to ensure long service life and dependable operation under continuous duty.
Designed for pumping clean, non-abrasive, chemically neutral water, the DAB K40/100 is suitable for continuous operation in residential, civil, agricultural, and light industrial installations. It can be installed in either a horizontal or vertical position, provided the motor remains above the pump.
Features:
- Twin-impeller centrifugal pump for high-pressure applications.
- 1.8kW (2.5 HP) single-phase motor.
- 220–240V, 50Hz power supply.
- Excellent pressure boosting performance.
- Maximum flow rate: up to 12 m³/h (200 L/min).
- Maximum head: up to 97 metres.
- Heavy-duty cast iron pump body.
- Cast iron motor support.
- High-efficiency technopolymer twin impellers.
- Carbon/ceramic mechanical seal.
- Stainless steel motor shaft.
- Built-in thermal overload protection.
- Quiet, energy-efficient operation.
- Suitable for horizontal or vertical installation (motor positioned above the pump).
- Easy installation and minimal maintenance.
Specifications:
- Pump model: K40/100 M.
- Pump type: Twin-impeller centrifugal pump.
- Motor power: 1.8kW (2.5 HP).
- Power supply: 220–240V, Single phase, 50Hz.
- Maximum flow rate: 12 m³/h (200 L/min).
- Maximum head: 97 m.
- Maximum operating pressure: 6 bar.
- Inlet connection: 1½”.
- Outlet connection: 1″.
- Liquid temperature: -10°C to +50°C.
- Maximum ambient temperature: +40°C.
- Protection class: IP44.
- Insulation class: F.
- Pump body: Cast Iron.
- Impellers: Technopolymer.
- Mechanical seal: Carbon/Ceramic.
- Motor shaft: Stainless steel.
- Suitable for: Clean, non-abrasive, chemically neutral water.
Applications:
- Domestic water supply.
- Pressure boosting systems.
- Irrigation and sprinkler systems.
- Pressure vessel installations.
- Water transfer.
- Agricultural water supply.
- Commercial buildings.
- Industrial water circulation.
- General clean water distribution.
