Description

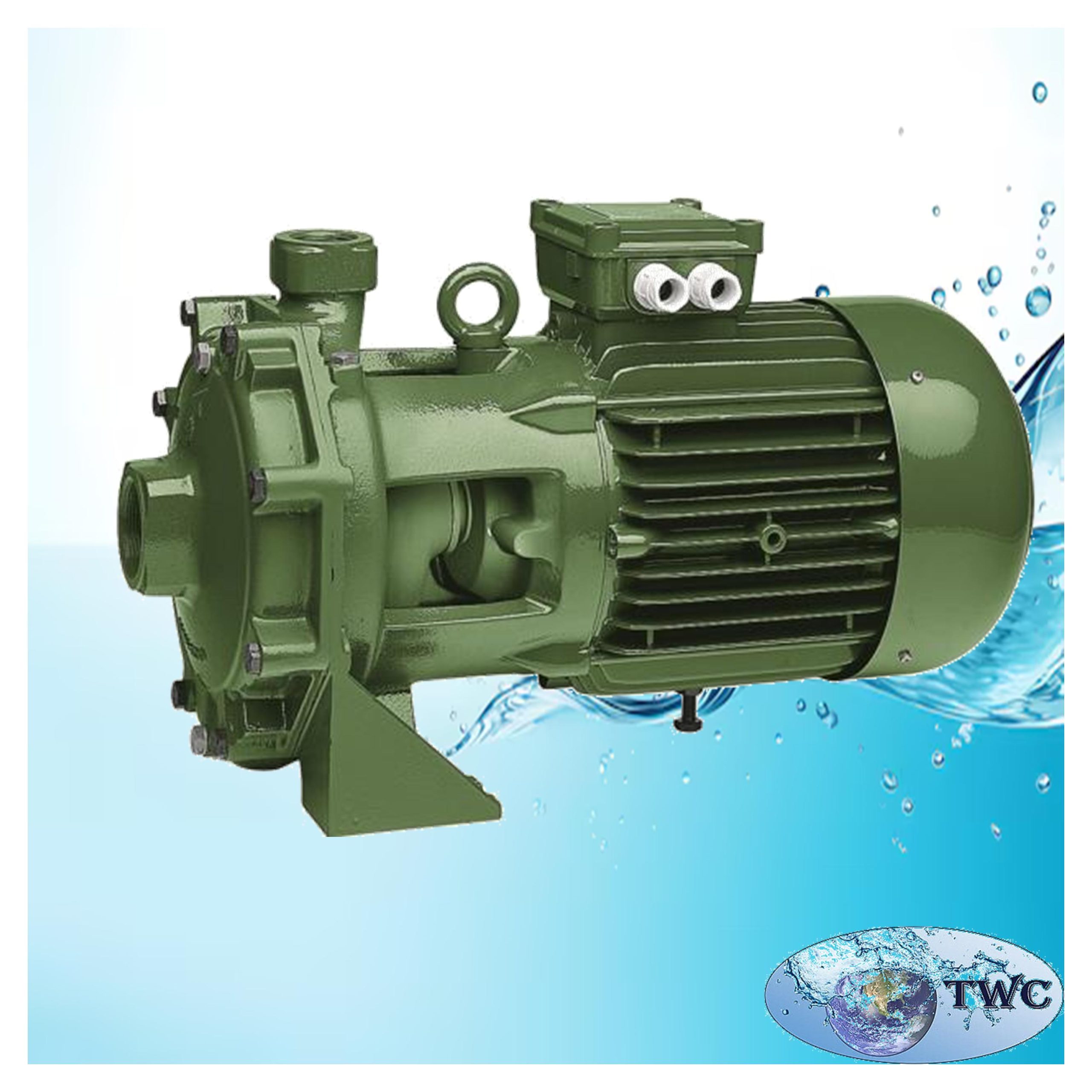

The DAB K66/100T 3kW three-phase centrifugal double-impeller pump is a robust and reliable high-pressure water pump designed for domestic, commercial, civil, industrial and agricultural water systems.

The twin-impeller centrifugal design provides excellent pressure performance, making the K66/100T suitable for water boosting, irrigation, water transfer, pressure systems, tank filling, sprinkler systems and general clean-water supply applications.

The pump features a durable cast-iron pump body and motor support, a technopolymer impeller, and a carbon/ceramic mechanical seal. The enclosed asynchronous three-phase motor is externally ventilated and fitted with ball bearings designed for reliable and durable operation.

The DAB K twin-impeller range is designed for booster sets, domestic and civil water systems, industrial applications, sprinkler irrigation and general water supply.

Features:

• High-pressure double-impeller design.
• Robust cast-iron pump construction.
• Cast-iron motor support.
• Technopolymer impeller.
• Carbon/ceramic mechanical seal.
• Stainless-steel shaft.
• Enclosed asynchronous motor.
• External ventilation cooling.
• Ball-bearing motor construction.
• Oversized bearings for durability.
• Built-in thermo-amperometric motor protection.
• Suitable for horizontal or vertical installation.
• Motor must remain above the pump.
• Maximum operating pressure of 10 bar.
• Suitable for clean water and water-like liquids.
• Suitable for domestic, commercial, agricultural and industrial applications.

Specifications:

• Brand: DAB.
• Model: K66/100T.
• Product type: Twin-impeller centrifugal pump.
• Motor power: 3.0 kW.
• Motor power: Approximately 4 HP.
• Motor type: Three-phase asynchronous motor.
• Power supply: 3 × 230–400 V.
• Frequency: 50 Hz.
• Motor efficiency: IE3.
• Motor speed: Approximately 2900 rpm.
• Maximum operating pressure: 10 bar / 1000 kPa.
• Maximum ambient temperature: +40°C.
• Liquid temperature: -10°C to +50°C.
• Maximum head: Approximately 73 m.
• Suction connection: 1½” G.
• Discharge connection: 1″ G.
• Pump body: Cast iron.
• Motor support: Cast iron.
• Impeller: Technopolymer.
• Mechanical seal: Carbon/ceramic.
• Motor cooling: External ventilation.
• Motor protection: Built-in thermo-amperometric protection.
• Protection rating: IP44.
• Terminal board protection: IP55.
• Insulation class: F.
• Installation: Horizontal or vertical.
• Motor position: Motor must remain above the pump.
• Pumped liquid: Clean water and water-like liquids.
• Approximate weight: 42 kg.
• Construction: Heavy-duty centrifugal pump with twin impellers.

Applications:

• Domestic water supply systems.
• Commercial water supply systems.
• Civil water systems.
• Industrial water supply systems.
• Agricultural water systems.
• Water pressure boosting.
• Booster pump systems.
• Irrigation systems.
• Agricultural irrigation.
• Sprinkler irrigation.
• Garden and landscape irrigation.
• Water transfer systems.
• Water storage tank filling.
• Pressure vessel filling.
• Water distribution systems.
• Water treatment installations.
• Clean-water pumping.
• Water decanting.
• Water mixing.
• Industrial process-water applications.
• General water supply applications.
