Description

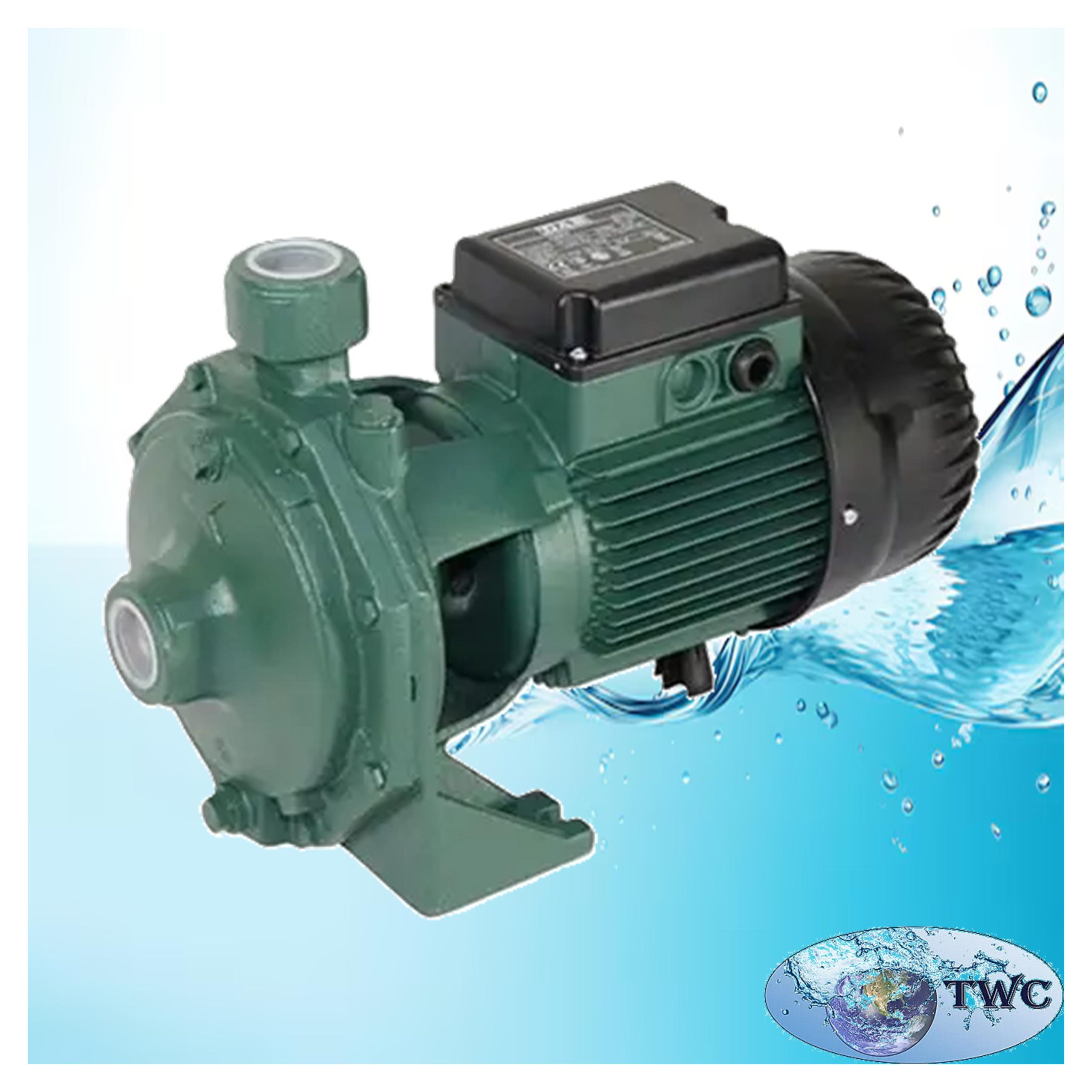

The DAB K 11/500 T 2.2kW Three-Phase Single-Impeller Centrifugal Pump is a heavy-duty centrifugal pump designed for reliable water movement in domestic, civil, agricultural and industrial installations.

Part of the DAB K Single-Impeller range, the K 11/500 T combines a robust cast-iron construction with a three-phase asynchronous motor and single centrifugal impeller. The pump is designed for applications including water supply, irrigation, water transfer, decanting, mixing and general industrial fluid-handling duties where the pumped liquid has characteristics similar to clean water.

The pump body, motor support and impeller are manufactured from cast iron, while the shaft with rotor is stainless steel AISI 303. A carbon/ceramic mechanical seal and EPDM O-ring provide sealing at the hydraulic section.

The K 11/500 T is fitted with a 2.2 kW (3 HP) IE2 three-phase motor, operating at approximately 2,950 rpm. The motor is rated for 3 × 230–400 V at 50 Hz, with a nominal current of approximately 9.3 A at 230 V / 5.4 A at 400 V.

With 2½″ suction and 2″ discharge connections, the pump is suitable for higher-volume water-transfer installations. The K 11/500 T has a maximum operating pressure of 8 bar (800 kPa).

The pump may be installed horizontally or vertically, provided that the motor remains above the pump. The pumped liquid should be clean, free from solids and abrasive substances, non-viscous, non-aggressive and chemically neutral, with characteristics similar to water.

Features:

• DAB K Single-Impeller centrifugal pump.
• Model: K 11/500 T.
• DAB product code: 60168866.
• 2.2 kW / 3 HP motor.
• Three-phase electrical supply.
• 3 × 230–400 V, 50 Hz.
• IE2 motor efficiency.
• Approximately 2,950 rpm.
• Cast-iron pump body.
• Cast-iron motor support.
• Cast-iron impeller.
• AISI 303 stainless-steel shaft with rotor.
• Carbon/ceramic mechanical seal.
• EPDM rubber O-ring.
• External ventilation motor cooling.
• Ball-bearing motor construction.
• 2½″ suction connection.
• 2″ discharge connection.
• Maximum operating pressure 8 bar.
• Maximum ambient temperature +40°C.
• Liquid temperature range -15°C to +110°C.
• Horizontal or vertical installation.
• Motor must remain above the pump.
• Designed for clean-water applications.
• Suitable for domestic, civil, agricultural and industrial installations.

Specifications:

• Product range: K single-Impeller.
• Pump type: Single-impeller centrifugal pump.
• Model: K 11/500 T.
• Product code: 60168866.
• Motor type: Three-phase asynchronous.
• Application: Water supply and water transfer.
• Rated motor power P2: 2.2 kW.
• Motor power: 3 HP.
• Maximum input power P1: 2.9 kW.
• Voltage: 3 × 230–400 V.
• Frequency: 50 Hz.
• Nominal current: 9.3 / 5.4 A.
• Motor efficiency class: IE2.
• Rated speed: approximately 2,950 rpm.
• Motor cooling: External ventilation.
• Motor protection: IP44.
• Insulation: Class F.
• Suction / inlet: 2½″ G.
• Discharge / outlet: 2″ G.
• Maximum operating pressure: 8 bar / 800 kPa.

Applications:

• Water supply:

  Suitable for water transfer and general water-supply systems where a reliable centrifugal pump is required.

• Domestic water systems:

  Can be used in larger domestic water-transfer and pressure-boosting installations where the three-phase electrical supply is available.

• Commercial & civil installations:

  Suitable for water circulation, transfer and supply duties in commercial and civil infrastructure.

• Industrial water transfer:

  Suitable for industrial water-transfer applications involving clean, non-aggressive liquids with characteristics similar to water.

• Agricultural irrigation:

  Suitable for irrigation systems, water transfer and agricultural water-supply duties.

• Water treatment systems:

  The pump can be used as part of suitable water-treatment installations for transferring clean or appropriately pre-treated water between tanks, treatment stages and storage systems.

• Water transfer:

  Suitable for transferring water between storage tanks, reservoirs and process systems.

• Decanting:

  Suitable for decanting and transferring water between vessels or tanks.

• Mixing:

  Can be incorporated into suitable water mixing and circulation systems.
