Description

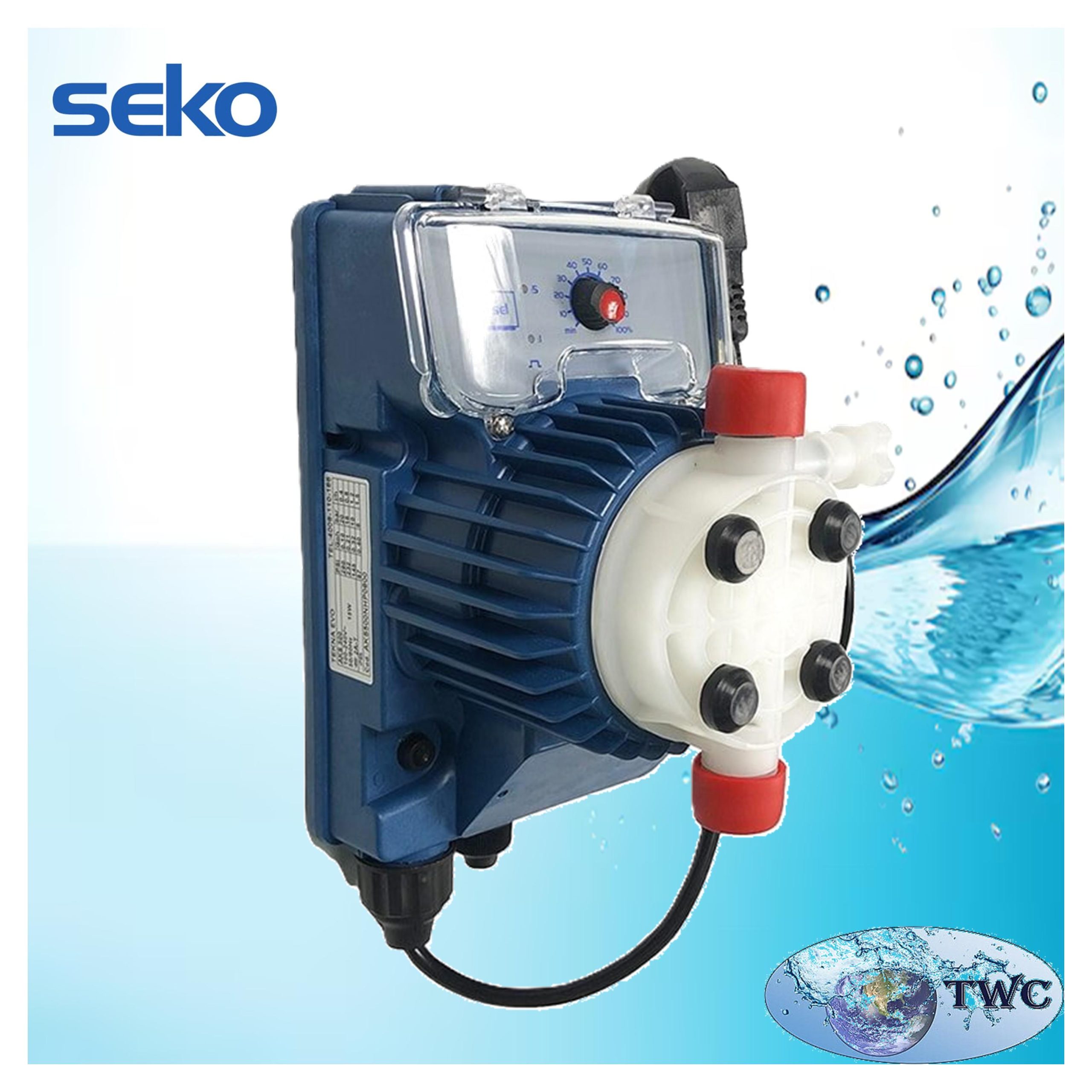

Dosing pump Seko AKS600 is an analog dosing pump with constant flow rate. A knob mounted on the front panel manually adjusts it, and it has a level control input in addition to the Tekna AKS.

The flow rate has two frequency ranges:

• 0÷20 % of max flow rate
• 0÷100% of max flow rate

Another key point is only 5 sizes that pump can cover a wide range of performances, having a flow rate range from 0.4 to 110l/h and a back pressure from 0.1 to 20 bar. The power supply is 100÷240 Vac – 50/60 Hz therefore the same pump can operate with different supply voltage, moreover the model AKL603 have the possibility for 24÷48 Vac power supply.

The standard pump head is in PVDF, therefore high chemical compatibility with several liquids end but is available in PVC as well, on request.

Seko dosing pump AKS600 is equipped with a manually priming pump for the start up.

The pump is furnished with a complete standard installation kit, which includes: PVDF foot filter and injection valve, PVC suction tube, PE delivery tube. Moreover is available an installation kit in PVDF-T, on request. The ambient temperature at the site of pump installation cannot exceed 40°C, and the relative humidity cannot be above 90%; the pump cannot be installed in a place exposed to sun or bad weather.

Hydraulic Characteristics:

Power Supply:

100÷240Vac

Flow rates:

2.5 l/ph – 20 bar pressure

3.0 l/ph – 18 bar pressure

4.2 l/ph – 14 bar pressure

7.0 l/ph – 8 bar pressure

Max Frequency -Strokes per min:

120

Stroke Capacity (cc/str.):

2.5 l/ph – 20 bar pressure – 0.35

3.0 l/ph – 18 bar pressure – 0.42

4.2 l/ph – 14 bar pressure – 0.58

7.0 l/ph – 8 bar pressure – 0.97

Installation Kit Available:

PVDF-T

PDVF

Seals Available:

FKM-B

EPDM

PTFE
