Description

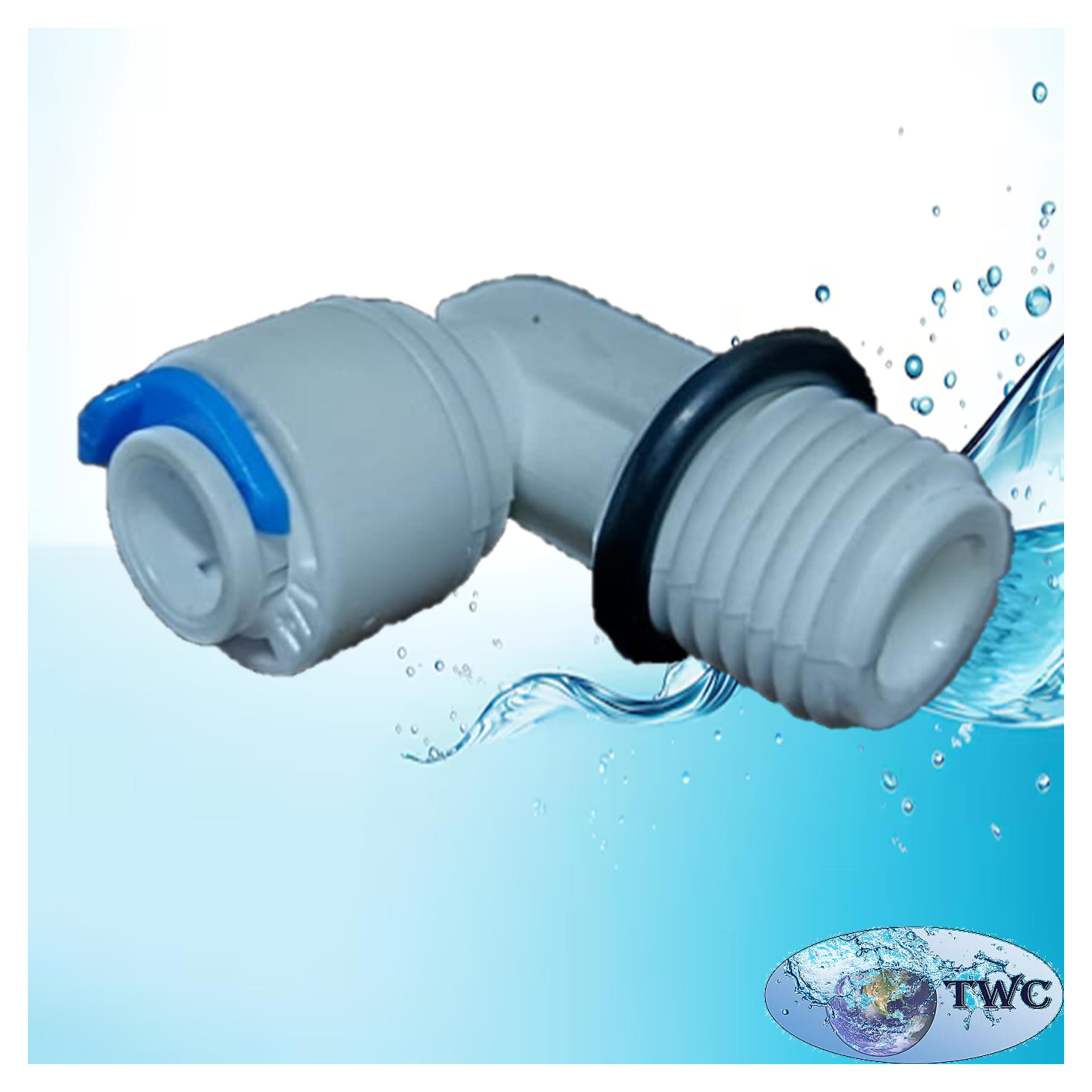

The 1/4″ male NPT × 1/4″ tube elbow fitting is a compact 90° connection designed to connect compatible 1/4″ tubing to a component with a 1/4″ male NPT threaded connection.

The elbow configuration allows the tubing to change direction by 90°, helping create neat and organised installations while reducing the space required compared with a straight fitting.

Suitable for compatible reverse osmosis (RO), water filtration, water purification and other water-treatment applications, this fitting is useful for installing, modifying, repairing and maintaining tubing connections within water-treatment systems.

Features:

• 90° elbow configuration.
• 1/4″ threaded connection.
• 1/4″ tube connection.
• Compact design.
• Allows tubing to change direction by 90°.
• Suitable for compatible 1/4″ tubing.
• Easy to install.
• Push-to-connect tubing connection.
• Tool-free tubing installation.
• Useful in confined installation spaces.
• Suitable for RO systems.
• Suitable for water filtration systems.
• Suitable for water purification systems.
• Suitable for system repairs and modifications.
• Suitable for replacement applications.

Specifications:

• Product type: 90° Elbow tube fitting.
• Thread size: 1/4″.
• Thread connection: Male.
• Tube size: 1/4″ OD.
• Configuration: 90° Elbow.
• Connection type: Threaded × tube connection.
• Compatible tubing: 1/4″ OD tubing.
• Application: RO, water filtration and water-treatment systems.

Applications:

• Domestic reverse osmosis systems.
• Commercial reverse osmosis systems.
• Drinking water filtration systems.
• Water purification systems.
• Water treatment systems.
• Under-sink filtration systems.
• Water filter housings.
• RO membrane systems.
• Water dispensers.
• Refrigerator and ice-maker water connections.
• 1/4″ water tubing installations.
• General water filtration plumbing.

Why choose elbow 1/4″ thread x 1/4″ tube?

• 90° Direction change: Allows compatible tubing to be routed neatly around corners and components.
• Space-saving design: The elbow configuration can help reduce the space required for tubing connections.
• Easy tubing connection: Push-to-connect design allows compatible 1/4″ tubing to be connected quickly.
• Neat installation: Helps keep tubing organised in compact water-treatment systems.
• Versatile: Suitable for compatible RO, water filtration, water purification and water treatment applications.
• Easy maintenance: Useful when replacing, modifying or servicing existing tubing connections.
• Practical replacement fitting: Suitable for repairs and replacement of compatible elbow fittings.
