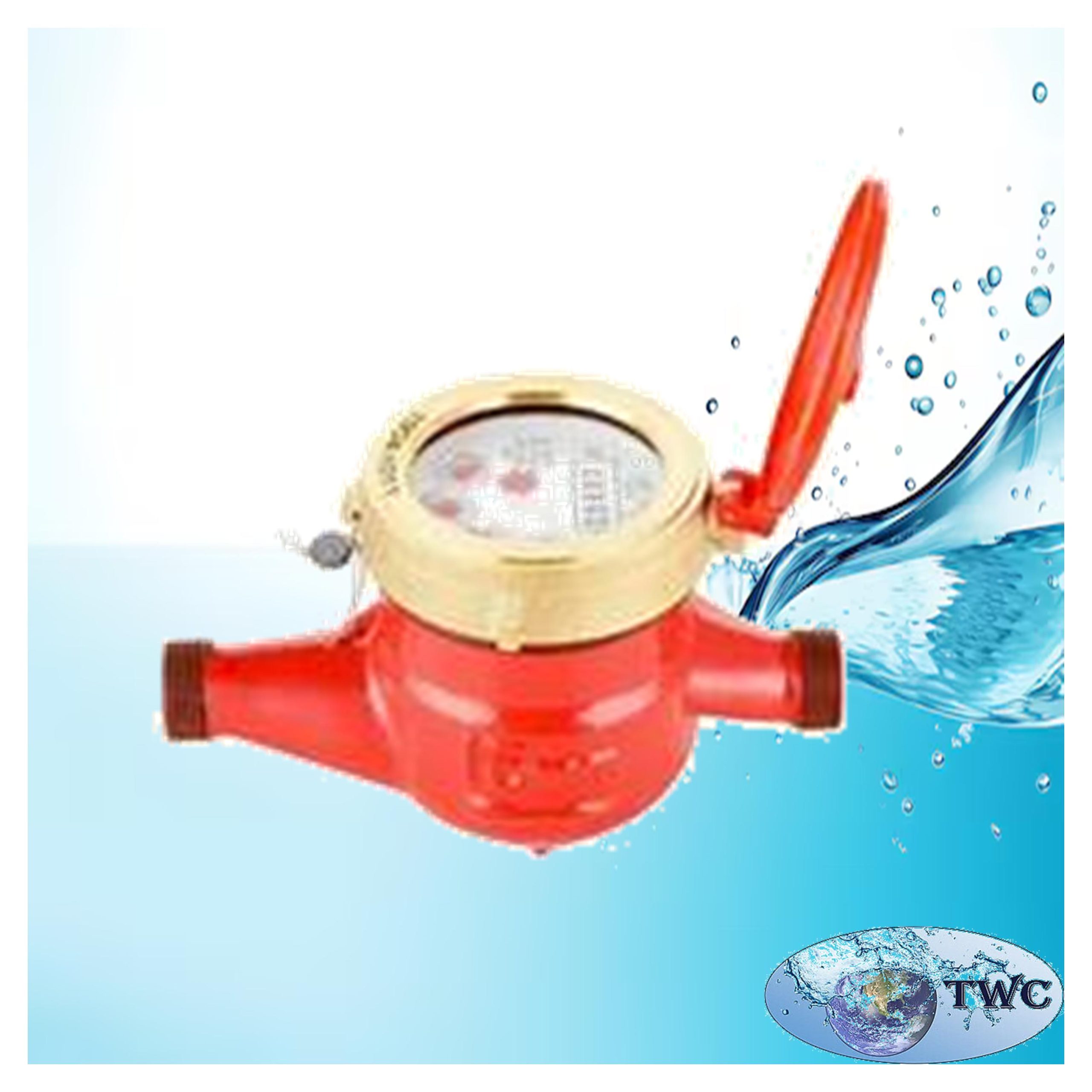

Multi-Jet brass hot water meter – 15mm

R1.490.40

Please note that shipping and installation is not included.

15mm Multi-jet brass hot water meter with DZR brass body, dry dial register and pulse-ready functionality for potable water measurement.

Description

The multi-jet brass hot water meter – 15mm is a durable and accurate water meter designed for measuring hot and cold potable water consumption in domestic and small commercial applications. Its multi-jet design provides reliable water measurement, while the DZR brass body offers excellent durability for long-term use.

Designed for hot water applications up to 90°C, this 15mm water meter is well suited to domestic hot water systems, geysers, apartments, sectional-title properties, guest accommodation and small commercial installations where accurate water usage measurement is required.

The meter features a clear, sealed dry-dial register that records water consumption in cubic meters (m³), making readings easy to view and record. It is also pulse-ready, allowing the meter to be integrated with suitable remote monitoring, automated reading or water-management systems.

The meter complies with SANS 1529-1:2019 Class B requirements and is suitable for potable water measurement. The removable strainer helps protect the internal measuring mechanism from suspended particles while allowing easier maintenance.

Features:
  • 15mm Multi-jet water meter for hot and cold potable water.
  • Suitable for hot water temperatures up to 90°C.
  • DZR (Dezincification Resistant) brass body for durability.
  • Clear, sealed dry-dial register for easy reading.
  • Measures water consumption in m³.
  • Reading resolution down to 0.0002 m³.
  • Pulse-ready for remote monitoring and automated water management.
  • Standard pulse configuration of 1 pulse per 10 liters.
  • Removable inlet strainer for easier maintenance.
  • Suitable for domestic and small commercial applications.
  • Working pressure up to 1600 kPa.
  • Designed for reliable measurement with reduced susceptibility to suspended solids.
  • Complies with SANS 1529-1:2019 Class B requirements.
  • Suitable for potable water measurement.
  • ISO metric-compatible inlet and outlet connections.
Specifications:
  • Product: Multi-jet brass hot water meter.
  • Nominal Size: 15mm.
  • Meter type: Multi-jet inferential water meter.
  • Body Material: DZR brass.
  • Application: Hot and cold potable water.
  • Maximum hot water temperature: 90°C.
  • Maximum cold water temperature: 50°C.
  • Maximum working pressure: 1600 kPa.
  • Register type: Sealed dry dial.
  • Register unit: Cubic meters (m³).
  • Reading resolution: 0.0002 m³.
  • Pulse ready: Yes.
  • Pulse configuration: 1 Pulse per 10 liters.
  • Strainer: Removable.
  • Installation: Suitable for horizontal installation.
  • Connection: ISO metric-compatible inlet and outlet threads.
  • Compliance: SANS 1529-1:2019 Class B.
  • Meter length: 165mm.
  • Approximate weight: 1.1 kg.
  • Product dimensions: Approximately 18 × 12 × 14 cm.
Application:
  • Domestic hot water systems.
  • Geyser and hot water installations.
  • Residential properties.
  • Apartments and sectional-title developments.
  • Individual unit sub-metering.
  • Guest houses and accommodation facilities.
  • Small businesses and offices.
  • Hot water consumption monitoring.
  • Water usage management and billing.
  • Installations requiring pulse-ready water metering.
Why choose the multi-jet brass hot water meter – 15mm?
  • The multi-jet brass hot water meter – 15mm combines accurate water measurement, durable construction and hot-water capability in a compact 15mm meter.
  • Its DZR brass construction provides a robust solution for long-term water metering, while the sealed dry-dial register makes consumption easy to read. The removable strainer provides an added layer of protection for the meter mechanism and makes maintenance more convenient.
  • For applications requiring more than a traditional visual meter reading, the pulse-ready output allows the meter to be incorporated into suitable monitoring and water-management systems.
  • With a 90°C maximum hot-water temperature rating, 1600 kPa working pressure, and SANS 1529-1:2019 Class B compliance, this meter is a practical choice for domestic and small commercial hot water measurement.
  • Whether you need to monitor hot water consumption in a home, apartment, guest accommodation or small commercial property, this 15mm multi-jet brass water meter provides a dependable solution for measuring and managing water usage.
Multi-Jet brass hot water meter – 15mm

Additional information

Weight 1.1 kg
Dimensions 18 × 12 × 14 cm
