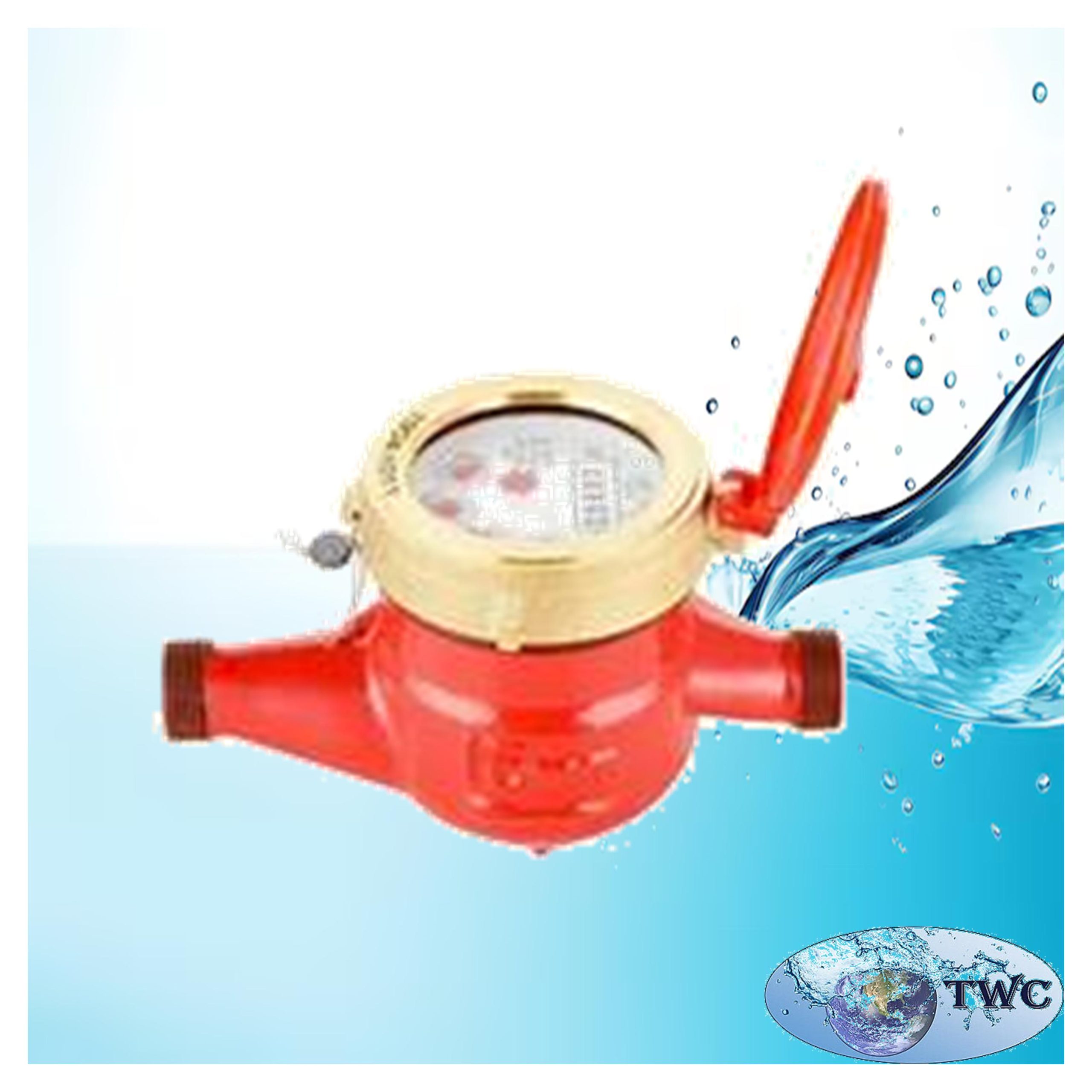

Multi-Jet brass hot water meter – 40mm

R5.666.63

Please note that shipping and installation is not included.

Multi-jet brass hot water meter 40 mm is designed to measure potable water consumption in suitable domestic and commercial installations. It features a dezincification-resistant brass body, a dry dial counter and a magnetic measuring mechanism. With pulse output options available on request, it provides a practical solution for monitoring water consumption in compatible plumbing systems.

Description

The Multi-Jet Brass Hot Water Meter 40 mm is designed to measure hot and cold potable water consumption in suitable domestic, commercial and building water supply installations.

Manufactured with a dezincification-resistant brass body and an epoxy-coated finish, this meter is designed for durability in compatible water metering applications. The dry dial counter provides a clear reading, while the magnetic drive mechanism transfers movement from the measuring assembly to the register.

The meter includes an inlet strainer to help prevent larger particles from entering the measuring mechanism. Pulse output options are available on request, allowing integration with compatible water monitoring equipment when the appropriate configuration is selected.

With a nominal size of 40 mm, this meter is intended for suitable installations requiring higher water flow capacity than smaller domestic meters.

Features:
  • 40mm Nominal size designed for compatible 40 mm water supply installations.
  • Multi-jet measuring technology designed to measure water consumption through a multi-jet inferential mechanism.
  • DZR brass body manufactured from dezincification-resistant brass with an epoxy-coated finish.
  • Dry dial counter provides clear mechanical water consumption readings.
  • Magnetic drive mechanism transfers movement to the register without a direct mechanical connection between the measuring assembly and the counter.
  • Hot and cold water measurement suitable for potable water metering within the specified operating temperature and pressure limits.
  • Inlet strainer helps protect the measuring mechanism from particles entering through the supply line.
  • Pulse output options available on request, subject to the selected pulse configuration.
  • Recalibration capability the datasheet states that the meter can be recalibrated.
  • Horizontal installation the supplied datasheet specifies installation on a horizontal pipeline.
  • Domestic and commercial applications suitable for compatible water consumption monitoring installations.
Specifications:
  • Product type: -jet brass hot water meter.
  • Model: LXSG-40.
  • Nominal size: 40 mm.
  • Metering class: Class B, subject to confirmation of the supplied model.
  • Body material: Dezincification-resistant brass (DZR).
  • Body finish: Epoxy coated.
  • Measuring mechanism: Multi-jet inferential.
  • Drive mechanism: Magnetic drive.
  • Counter type: Dry dial.
  • Maximum flow rate: 20 m³/h.
  • Nominal flow rate: 10 m³/h.
  • Transitional flow rate: 0.8 m³/h.
  • Minimum flow rate: 0.2 m³/h.
  • Maximum hot water temperature: 90°C.
  • Maximum hot water working pressure: 10 bar.
  • Maximum cold water temperature: 50°C.
  • Maximum cold water working pressure: 16 bar.
  • Hot water accuracy: ±5% in the lower zone and ±3% in the upper zone.
  • Cold water accuracy: ±5% in the lower zone and ±2% in the upper zone.
  • Pulse output options: 10 or 100 litres per pulse.
  • Minimum register reading: 0.001 m³.
  • Maximum register reading: 999999 m³.
  • Connection thread: BSP 50 mm.
  • Strainer: Inlet strainer.
  • Installation orientation: Horizontal pipeline only, .
  • Pipeline preparation: Flush the pipeline before installation.
  • Operating requirement: The meter must remain full of water during operation.
Applications:
  • Hot water consumption measurement in commercial buildings.
  • Hot water sub-metering in suitable building plumbing systems.
  • Cold potable water consumption measurement within the specified operating limits.
  • Water consumption monitoring in suitable domestic and commercial installations.
  • Commercial plumbing and water management systems.
  • Water monitoring installations requiring a nominal 40 mm meter.
Why choose the multi-jet brass hot water meter 40 mm?
  • Durable construction features a DZR brass body with an epoxy-coated finish.
  • Clear readings provides a dry dial register for monitoring accumulated water consumption.
  • High flow capacity supports suitable installations with flow requirements up to the specified maximum of 20 m³/h.
  • Protective inlet strainer helps prevent particles from entering the measuring mechanism.
  • Pulse output options provide potential integration with compatible monitoring equipment when the appropriate configuration is selected.
  • Recalibration capability supports recalibration according to the applicable verification requirements.
  • Versatile water measurement is suitable for compatible hot and cold potable water applications.
Multi-Jet brass hot water meter – 40mm

Additional information

Weight 4 kg
Dimensions 32 × 15 × 17 cm
