Description

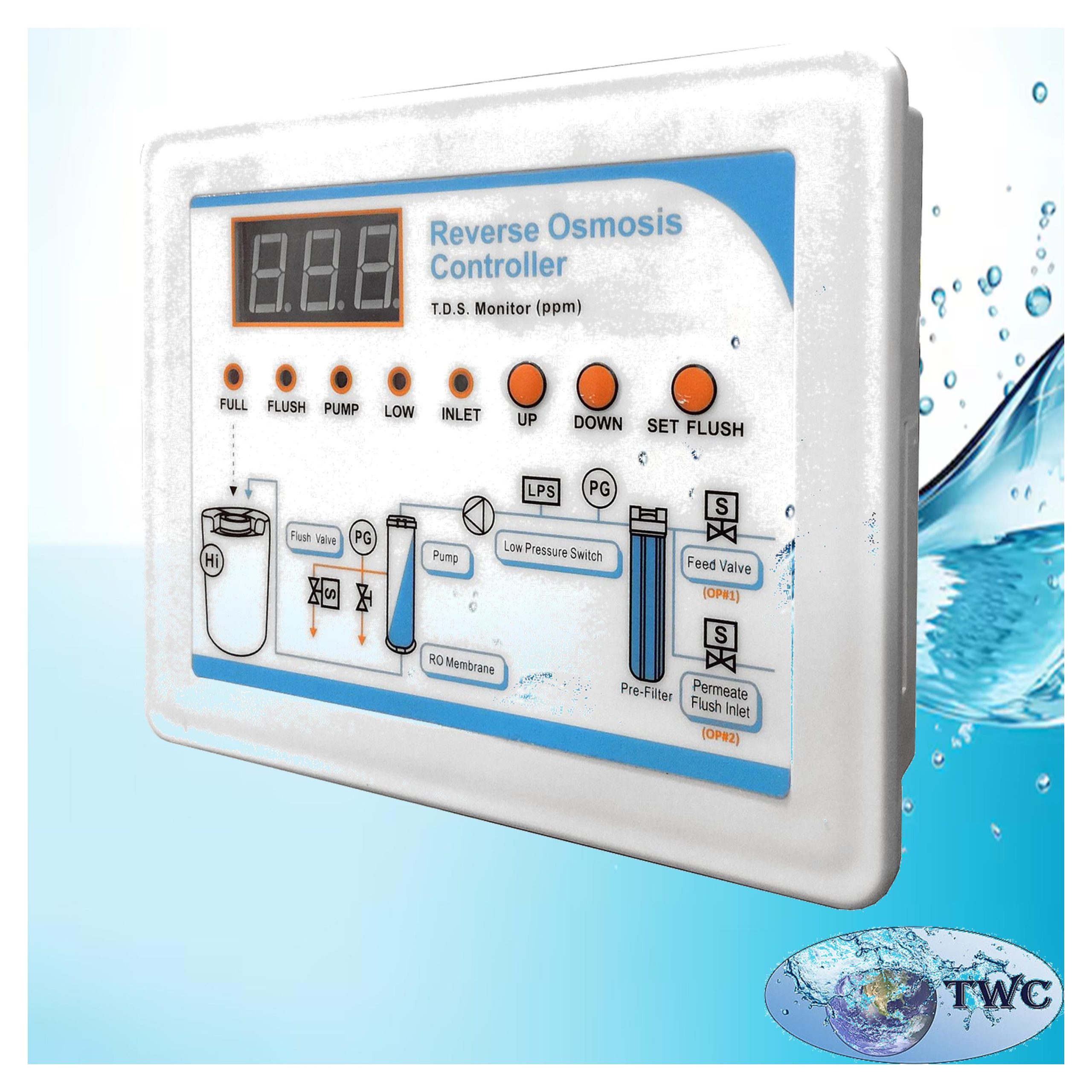

The Rotek C-5TM Reverse Osmosis Controller is a panel-mounted control unit designed to monitor and control the operation of compatible single-pump reverse osmosis (RO) water purification systems.

The controller manages key operating functions of the RO system, including pump operation, feed-water control, membrane flushing and system shutdown. It also provides system status indications and permeate total dissolved solids (TDS) monitoring, allowing operators to monitor important operating conditions during system operation.

The controller includes automatic and manual flushing functions, low feed-water pressure shutdown and permeate storage-tank full shutdown. These functions help protect the RO system, support membrane maintenance and simplify day-to-day operation.

The C-5TM is suitable for compatible commercial and industrial RO systems and is designed for panel-mounted installation. The controller is particularly suited to RO plants where automatic system control and monitoring are required.

Features:

• Rotek C-5TM reverse osmosis controller.
• Designed for single-pump RO systems.
• Panel-mounted design.
• Permeate TDS monitoring.
• TDS display for monitoring permeate water quality.
• Automatic membrane flushing.
• Automatic permeate flush.
• Manual membrane flush.
• Adjustable flush timing.
• Permeate storage-tank full shutdown.
• Low feed-water pressure shutdown.
• System status LED indicators.
• Selectable operating modes.
• Delayed feed-solenoid valve closing.
• Helps protect the RO system during abnormal operating conditions.
• Compact control-panel design.
• Suitable for commercial and industrial RO applications.

Specifications:

• Brand: Rotek.
• Model: C-5TM.
• Product type: Reverse osmosis system controller.
• Controller type: Single-pump RO controller.
• Dimensions: 151 × 121 × 40 mm.
• Panel cut-out: 141 × 111 mm.
• Power supply: 110 / 220 VAC ±10%, 50/60 Hz.
• Inputs: Dry contact, DC 5 V.
• Output relay rating: 110 VAC, 1.0 A / 220 VAC, 0.5 A.
• TDS monitoring: Permeate TDS.
• TDS range: 1–999 ppm.
• Operating temperature: 0–50°C.
• Operating humidity: ≤85%.
• Installation: Panel mounted.

Applications:

• Commercial reverse osmosis systems.
• Industrial reverse osmosis systems.
• Single-pump RO plants.
• 4,500 GPD RO systems, where compatible.
• 8,000 GPD RO systems, where compatible.
• Commercial drinking-water purification systems.
• RO water-treatment plants.
• RO membrane flushing systems.
• Automated commercial and industrial RO installations.
• RO system replacement and upgrade applications.

How the RO Controller Works:

The Rotek controller receives signals from compatible RO system components and uses them to control and monitor the RO plant. During normal operation, the controller controls the feed-water supply and high-pressure pump while monitoring system conditions.

If the permeate storage tank reaches its full level, the controller can shut down RO production and initiate the programmed flush sequence. Similarly, a low feed-water pressure condition can trigger system shutdown to help protect the RO equipment. The controller also provides permeate TDS monitoring, allowing the operator to observe the quality of the produced water directly from the control panel.

Control Functions:

• Automatic Flushing:
  • The controller can perform automatic membrane flushing according to the selected operating mode and programmed flush settings.
•  Manual Flushing:
  • The manual flush function allows an operator to initiate or stop a membrane-flushing cycle when required for maintenance or system operation.
• Low-Pressure Protection:
  • The controller can monitor the low-pressure input and shut down the RO system when feed-water pressure falls below the required operating condition.
• Tank-Full Shutdown:
  • When the permeate storage tank reaches its full-level condition, the controller can stop RO production and place the system into standby.
• TDS Monitoring:
  • The controller provides permeate TDS monitoring, allowing the operator to monitor the dissolved-solids level of the treated water.

Why Choose the Rotek C-5TM?

• Automated RO Control: Automates important RO system operating functions.
• System Monitoring: Provides clear operating and status information to help operators monitor RO system performance.
• TDS Monitoring: Allows permeate water quality to be monitored directly from the controller.
• Membrane Flushing: Supports automatic and manual membrane flushing.
• Low-Pressure Protection: Helps protect the RO system when feed-water pressure is insufficient.
• Tank-Level Control: Allows the RO system to stop production when the permeate tank is full.
• Panel-Mounted: Designed for neat installation in RO control panels.
• Commercial & Industrial Use: Suitable for compatible single-pump RO plants.
• Adjustable Flushing: Allows flushing parameters to be configured for compatible RO applications.
