Description

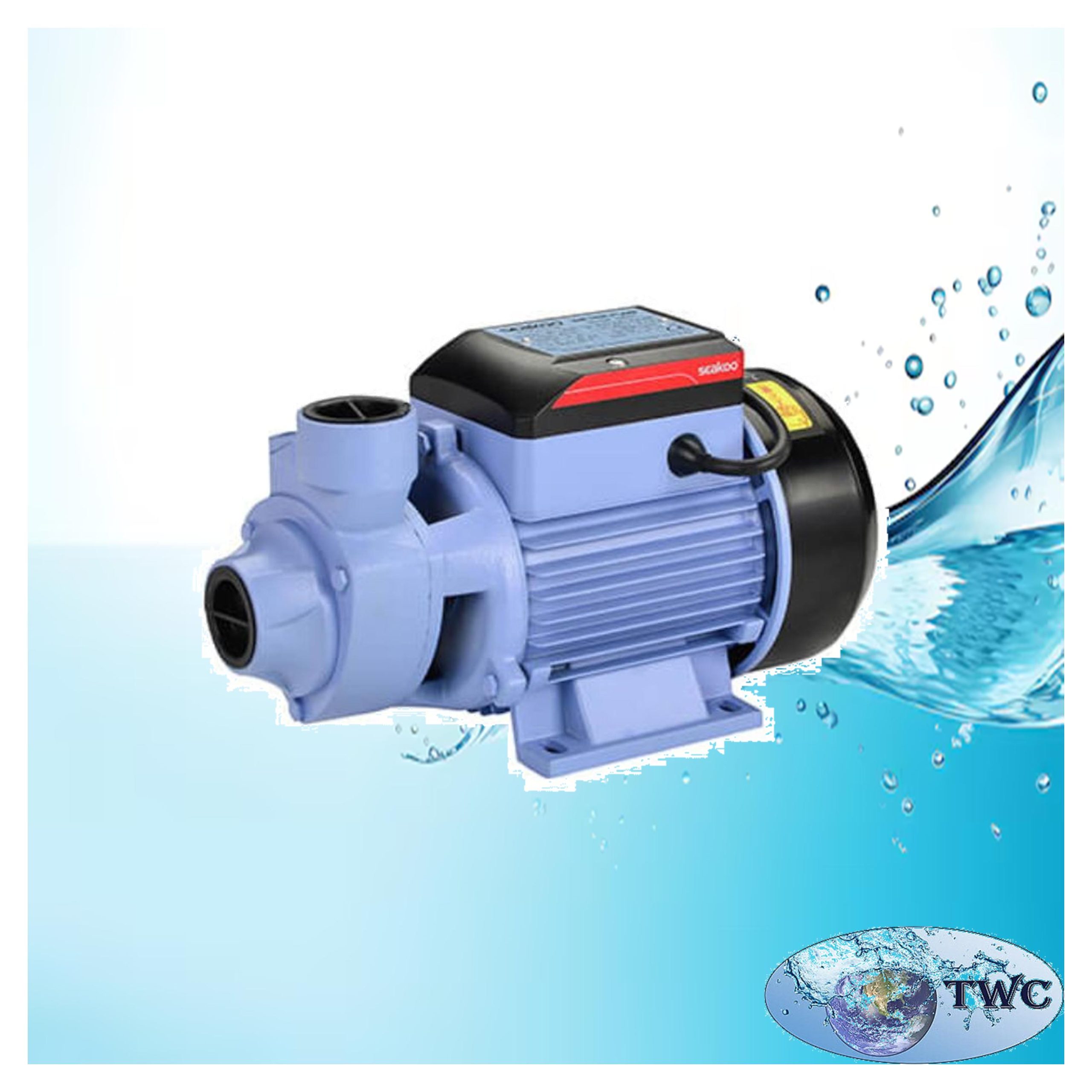

The Seakoo QB60L is a compact self-priming peripheral pump designed for domestic water supply, garden irrigation and water transfer applications. Its peripheral impeller design provides relatively high pressure for its motor size, making it suitable for applications where moderate water flow and higher delivery head are required.

The pump is designed for clean water without abrasive particles or chemically aggressive liquids. It features a cast-iron pump body, brass impeller, copper motor winding and ceramic-graphite mechanical seal.

Features:

• 0.37 kW (0.5 HP) motor.
• Self-priming peripheral pump design.
• Single-phase 220V electrical supply.
• Maximum flow rate of 1,800 L/h.
• Maximum head of 32 metres.
• Maximum suction lift of 8 metres under suitable conditions.
• Cast-iron pump body.
• Brass impeller.
• 100% copper motor winding.
• Ceramic-graphite mechanical seal.
• Built-in capacitor and thermal overload protection.
• IP44 motor protection rating.
• Suitable for domestic water supply, irrigation and water transfer.

Specifications:

• Brand: Seakoo.
• Model: QB60L.
• Product type: Self-priming peripheral water pump.
• Rated motor power: 0.37 kW.
• Motor power: 0.5 HP.
• Voltage: 220V AC.
• Phase: Single phase.
• Frequency: 50/60Hz.
• Motor type: Two-pole induction motor.
• Motor speed: Approximately 2,850 RPM.
• Maximum flow rate: 1,800 L/h (30 L/min).
• Maximum head: 32 metres.
• Maximum suction lift: 8 metres.
• Maximum liquid temperature: 40°C.
• Maximum ambient temperature: 40°C.
• Maximum working pressure: 6 bar.
• Motor insulation: Class B/class F.
• Motor protection rating: IP44.
• Pump body: Cast iron.
• Motor support: Aluminium.
• Impeller: Brass.
• Motor shaft: Stainless steel or CS45# steel, depending on configuration.
• Mechanical seal: Ceramic-graphite.
• Motor winding: 100% Copper.
• Capacitor: Included.
• Thermal overload protection: Included.
• Inlet connection: 25mm (1 inch), confirm thread configuration.
• Outlet connection: 25mm (1 inch), confirm thread configuration.

Applications:

• Domestic water supply.
• Water transfer between storage tanks.
• Garden irrigation.
• Small water pressure systems.
• Water supply from storage tanks.
• Compatible domestic pressure-boosting systems.
