Description

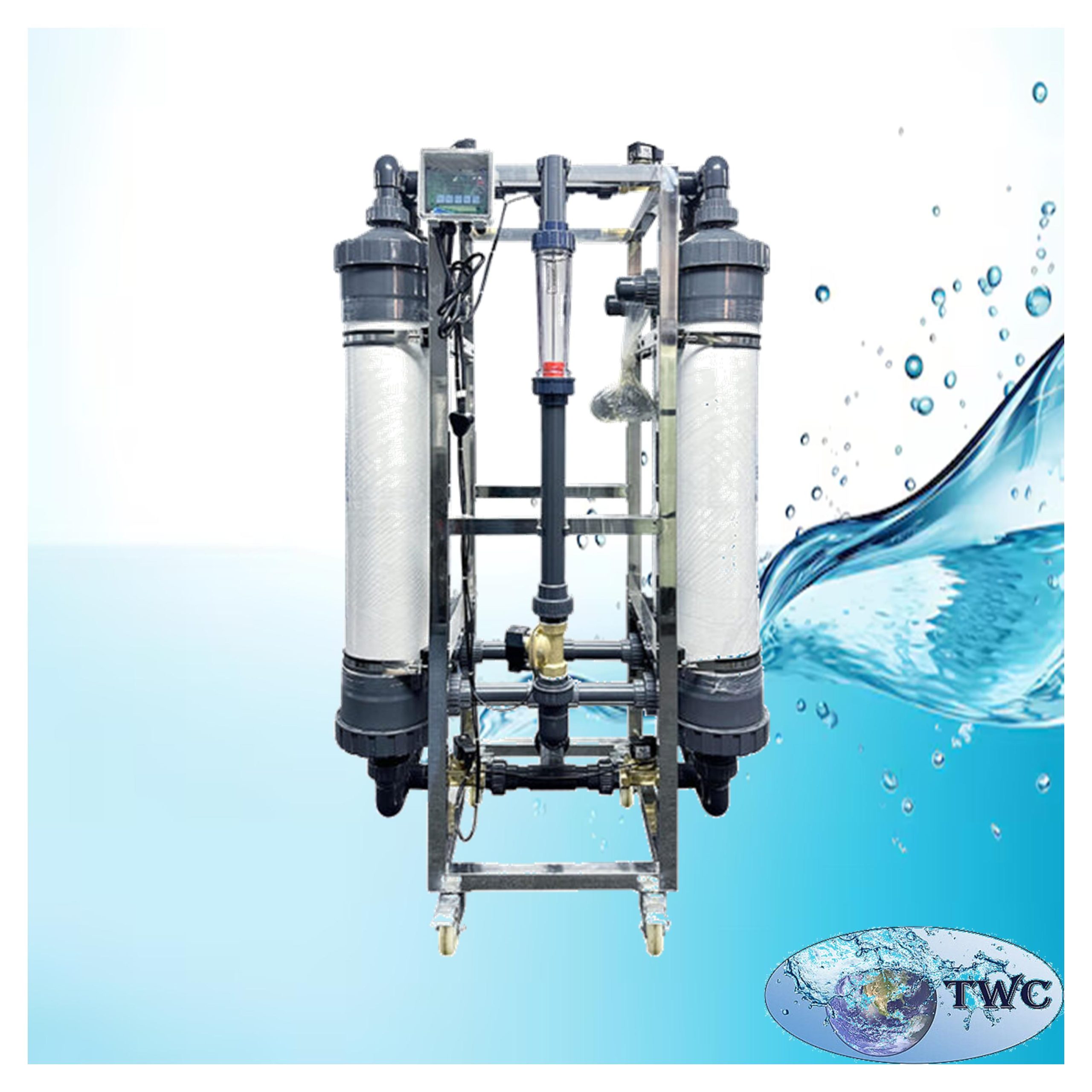

The 5,000 L/h Automatic Ultrafiltration System is a high-performance membrane filtration solution designed to remove suspended solids, fine particles, colloids, turbidity, bacteria, and other contaminants from water before it is used or transferred to further treatment processes. Using ultrafiltration membrane technology, the system provides reliable high-volume water filtration for commercial, agricultural, industrial, and water treatment applications.

Ultrafiltration (UF) uses pressure to force water through a semi-permeable membrane with very small filtration pores. The membrane retains suspended particles and many microorganisms while allowing water and smaller dissolved substances to pass through. This makes ultrafiltration an effective treatment stage where improved water clarity and microbiological reduction are required without the high reject-water volumes associated with conventional reverse osmosis.

The system is supplied with automatic backwash functionality to help maintain membrane performance and reduce manual maintenance. During operation, filtered water passes through the ultrafiltration membrane while retained contaminants are periodically removed through the backwash and rinse cycles.

Pre-treatment is required before the ultrafiltration system. The incoming water should be properly conditioned and filtered according to the raw-water quality to protect the UF membranes from excessive fouling, scaling, iron, manganese, suspended solids, and other contaminants that may reduce membrane performance or service life. We can select a suitable pre-treatment system based on a water analysis and the intended application.

With a nominal system capacity of up to 5,000 L/h, this automatic ultrafiltration system is suitable for applications requiring continuous production of filtered water while maintaining a compact and efficient treatment process. It can be used as a standalone filtration stage or as part of a larger water treatment plant, including systems incorporating reverse osmosis, UV sterilisation, water storage, and other purification technologies.

Important: Pre-treatment required

We recommend suitable pre-treatment before the ultrafiltration system, as it is vital for maintaining optimal membrane performance and service life. Operators should analyse raw water and appropriately treat it before it enters the UF membranes. Depending on the source-water quality, pre-treatment may include sediment filtration, multimedia or glass filtration, activated carbon, iron and manganese removal, softening, or other treatment stages. Proper pre-treatment helps reduce membrane fouling, scaling, and contamination and can significantly improve membrane performance and service life.

Features:

• High-capacity automatic ultrafiltration system.
• Nominal filtration capacity of up to 5,000 L/h, subject to confirmed operating conditions.
• Ultrafiltration membrane technology.
• Fine membrane filtration for suspended solids and colloidal particles.
• Reduces turbidity and fine particulate matter.
• Helps reduce bacteria and other microorganisms.
• Automatic backwash and rinse cycles.
• Programmable automatic cleaning operation.
• Integrated product-water flow meter.
• Integrated wastewater flow meter.
• Separate valves for product water, inlet water, backwash, rinse, and drain operation.
• Helps protect downstream reverse osmosis membranes and other treatment equipment.
• Suitable for continuous commercial and industrial water treatment.
• Compact and efficient filtration design.
• Suitable for integration into larger water treatment plants.
• Low wastewater generation compared with conventional reverse osmosis systems.
• Suitable for applications requiring high-volume filtered water.
• Requires suitable pre-treatment to protect the UF membranes.

Specifications:

• Product: Automatic ultrafiltration system.
• Model: 5,000 L/h Automatic UF system.
• SKU: WC-PT-UF-5000A.
• Filtration technology: Ultrafiltration (UF).
• Rated capacity: 5,000 L/h.
• Inlet pressure: Below 3 bar.
• Backwash pressure: Approximately 2 bar.
• Operation: Automatic.
• Backwash: Automatic.
• Rinse cycle: Automatic.
• Product water connection: 1″.
• Raw water connection: 1″.
• Wastewater connection: 1″.
• Product water flow meter: Included.
• Wastewater flow meter: Included.
• Membrane type: Ultrafiltration membrane.
• Filtration range: Approximately 0.01 micron.
• Pre-treatment: Required.

Applications:

• Borehole water treatment.
• Municipal water treatment.
• Surface water filtration.
• Commercial water purification.
• Industrial water treatment.
• Reverse osmosis pre-treatment.
• Drinking water treatment.
• Guest houses and lodges.
• Hotels and hospitality facilities.
• Food and beverage processing.
• Agricultural water treatment.
• Irrigation water filtration.
• Process water treatment.
• Manufacturing facilities.
• Water treatment plants.
• High-volume commercial water supply.
• Pre-treatment for larger purification systems.

Why choose the 5,000 l /h automatic ultrafiltration system?

• Provides high-volume membrane filtration for commercial and industrial water treatment.
• Automatic backwashing reduces the need for frequent manual cleaning.
• Helps remove suspended solids, turbidity, colloids, and microorganisms.
• Produces consistently filtered water for downstream treatment processes.
• Can reduce the fouling load placed on reverse osmosis membranes.
• Uses significantly less reject water than conventional reverse osmosis when used for appropriate applications.
• Integrated flow meters make it easier to monitor system operation.
• Automatic cleaning helps maintain membrane performance.
• Suitable for integration with RO, UV sterilisation, storage, and other treatment systems.
• Suitable for commercial, agricultural, and industrial applications.
• Compact system design helps simplify installation.
• Pre-treatment can be tailored to the raw-water quality to improve membrane performance and service life.
• Provides a scalable filtration solution for high-volume water requirements.
