Description

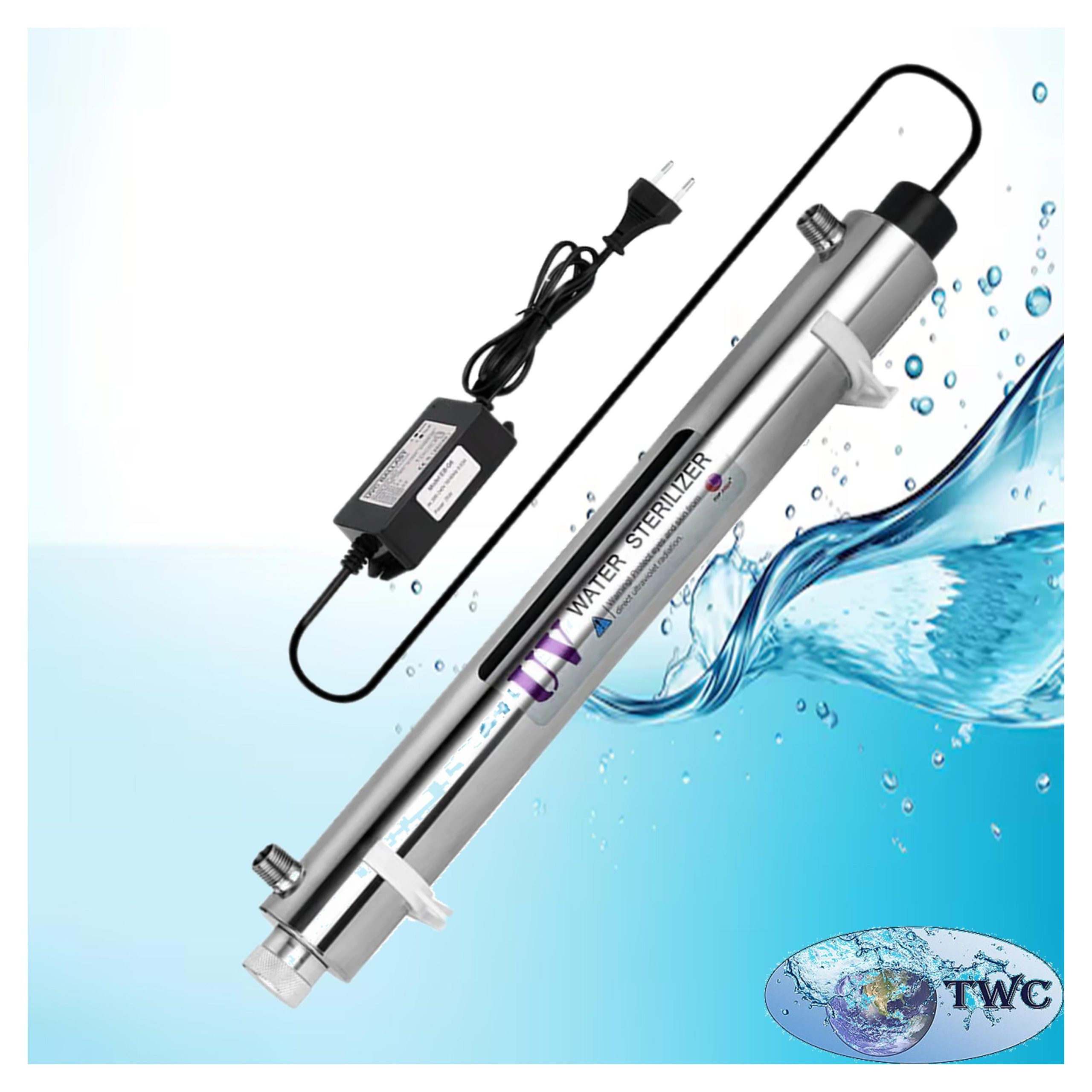

The UV Light 55 Watt 3500 LPH 1″ is a complete ultraviolet water-treatment unit designed to provide UV-C microbial treatment for water flows of up to 3,500 litres per hour.

The system features a stainless-steel UV chamber and a 55W UV lamp. As water passes through the chamber, it is exposed to UV-C radiation, which helps inactivate microorganisms in the treated water.

This is a chemical-free water-disinfection process and does not add chemicals to the treated water. UV treatment also does not remove suspended solids, dissolved minerals, salts, iron, hardness or other non-microbial contaminants. Appropriate pre-treatment should therefore be used where required.

The unit features 1″ NPT male inlet and outlet connections and is rated for a maximum working pressure of 10 bar. The complete unit is suitable for domestic, borehole, drinking-water and compatible small commercial water-treatment applications.

Features:

• Complete 55W UV water-treatment unit.
• Water treatment capacity of up to 3,500 LPH.
• 55W UV lamp.
• Stainless-steel UV chamber.
• Electronic ballast.
• Quartz sleeve.
• 1″ NPT male inlet and outlet connections.
• 110/240V, 50/60Hz electrical specification.
• Maximum working pressure of 10 bar / 145 psi.
• Test water pressure of 15 bar / 218 psi.
• UV lamp life of more than 8,000 hours.
• Designed for UV-C microbial treatment.
• Chemical-free disinfection process.
• Suitable for domestic and compatible commercial applications.
• Suitable for compatible borehole water-treatment systems.
• Replacement lamp, ballast and quartz sleeve available separately.
• Compact inline UV treatment solution.

Specifications:

• Product type: UV Water Treatment System.
• UV lamp power: 55W.
• Rated treatment capacity: Up to 3,500 LPH (3.5 m³/h).
• Housing material: Stainless steel.
• Inlet connection: 1″ NPT Male.
• Outlet connection: 1″ NPT Male.
• Voltage: 110/240V.
• Frequency: 50/60Hz.
• Maximum working pressure: 10 bar / 145 psi.
• Test water pressure: 15 bar / 218 psi.
• UV lamp life: >8,000 hours.
• UV chamber: Included.
• UV lamp: Included.
• Electronic ballast: Included.
• Quartz sleeve: Included.
• UV treatment: UV-C microbial treatment.
• Application: Water treatment and UV disinfection.
• Installation: Inline water-treatment installation.
• Product supplied: Complete UV treatment unit.

Applications:

• Domestic water treatment.
• Drinking-water treatment.
• Borehole water treatment.
• Household water purification systems.
• Point-of-entry water treatment.
• Small commercial water-treatment systems.
• UV microbial treatment.
• Water-treatment systems requiring flows up to 3,500 LPH.
• Compatible rainwater-treatment applications.
• Water-treatment installations that require chemical-free microbial treatment.

Why choose the UV light 55 watt 3500 lph?

• Complete UV system: The lamp, ballast, quartz sleeve and chamber are supplied as a complete unit.
• 55W UV lamp: Provides the UV-C source for the treatment process.
• 3,500 LPH capacity: Suitable for applications requiring treatment flows up to 3.5 m³/h.
• 1″ connections: Provides larger connections for compatible domestic, borehole and small commercial plumbing installations.
• Stainless-steel chamber: Provides a durable chamber for inline UV water treatment.
• Long lamp life: The UV lamp is specified for more than 8,000 hours of operation.
• High pressure rating: Maximum working pressure of 10 bar.
• Chemical-free treatment: Uses UV-C radiation rather than chemical disinfectants.
• Complete component package: The major UV components are supplied together, simplifying system selection.
• Replaceable components: The lamp, ballast and quartz sleeve can be replaced during maintenance.

How the UV unit works:

• Water enters the UV chamber.
• Water flows around the quartz sleeve containing the UV lamp.
• The 55W UV lamp produces UV-C radiation.
• UV-C exposure helps inactivate microorganisms as the water passes through the chamber.
• Treated water exits the UV unit and continues to the point of use.

Installation & maintenance:

• Install the UV unit in the correct direction of water flow.
• Confirm that the plumbing is compatible with the 1″ NPT male connections.
• Suitable 1″ NPT female fittings are required to connect to the UV unit.
• Install suitable pre-filtration before the UV system where required.
• Ensure the incoming water is suitable for UV treatment.
• Do not exceed the 10 bar maximum working pressure.
• Isolate the water and electrical supply before servicing.
• Never operate the UV lamp outside the chamber.
• Never look directly at an operating UV lamp.
• Avoid direct exposure of skin and eyes to UV-C radiation.
• Clean the quartz sleeve periodically according to the water quality and maintenance requirements.
• Replace the UV lamp when it reaches the end of its recommended service life.
• Inspect the quartz sleeve during maintenance and replace it if cracked or damaged.
• Check all water connections for leaks after installation.
• Protect the ballast from water ingress.
• Use suitable surge protection to help protect the electrical components.

Warranty & electrical safety:

Due to the sensitive nature of electrical products, consumables such as bulbs and ballasts do not carry a warranty. It is recommended that suitable surge protection be installed to help protect the electrical components from voltage fluctuations and electrical surges.
