Description

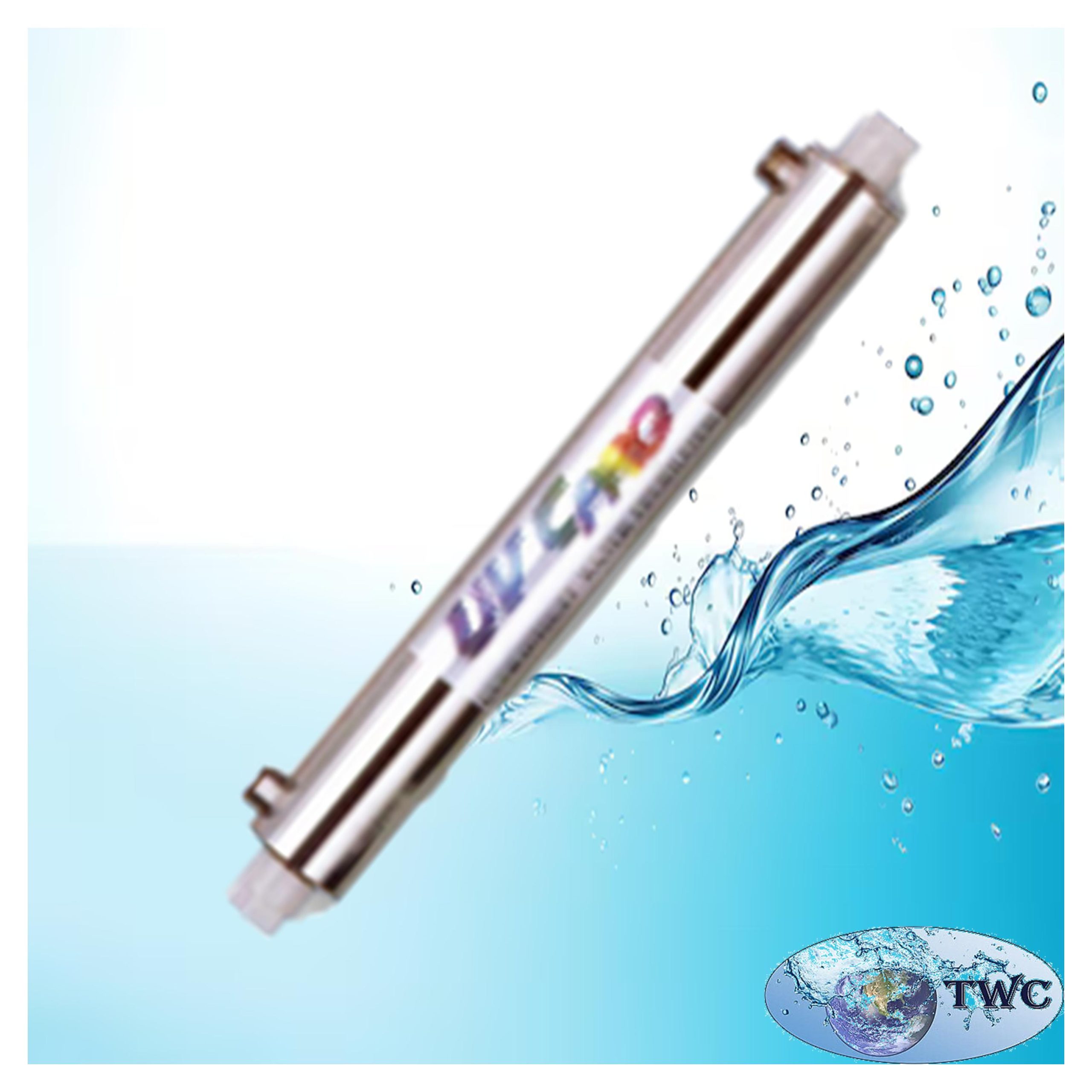

The UVC Pro UV Reactor 24W PRO-06 is a compact ultraviolet water-treatment unit designed to provide UV-C microbial treatment for compatible water-treatment systems with flow rates of up to approximately 20 litres per minute.

The system uses a 24W UVC Pro UV lamp inside a 304 stainless-steel UV reactor. As water passes through the reactor, it is exposed to UV-C radiation, which helps inactivate microorganisms in the treated water.

This is a chemical-free water-disinfection process and does not add chemicals to the treated water. UV treatment also does not remove suspended solids, dissolved minerals, salts, iron, hardness or other non-microbial contaminants. Appropriate pre-treatment should therefore be used where required.

The PRO-06 is supplied as a complete UV reactor unit and uses a dedicated 24W UVC Pro replacement lamp, quartz tube and compatible electronic ballast. It is suitable for compatible domestic and small commercial water-treatment applications.

Features:

• Complete UVC Pro PRO-06 UV reactor.
• 24W UV lamp.
• Single-lamp UV configuration.
• Flow capacity of up to approximately 20 L/min.
• 304 stainless-steel reactor construction.
• ½” male inlet and outlet connections.
• Designed for UV-C microbial treatment.
• Chemical-free disinfection process.
• Compact design for compatible water-treatment installations.
• Compatible 24W replacement lamp available separately.
• Compatible PRO-06 quartz tube available separately.
• Compatible PRO-06 electronic ballast available separately.
• Suitable for compatible domestic water-treatment applications.
• Suitable for compatible drinking-water treatment systems.
• Suitable for compatible borehole water-treatment systems.
• Inline UV water-treatment installation.

Specifications:

• Product type: UV water treatment reactor.
• Model: UVC Pro PRO-06.
• UV lamp power: 24W.
• UV lamp configuration: 1 × 24W UV lamp.
• Maximum flow rate: Approximately 20 L/min.
• Maximum Flow Rate: Approximately 1,200 LPH.
• Reactor material: 304 stainless steel.
• Inlet connection: ½” Male.
• Outlet connection: ½” Male.
• Power supply: 220V / 50Hz.
• Ballast type: Separate electronic ballast.
• UV treatment: UV-C microbial treatment.
• Application: Water treatment and UV disinfection.
• Installation: Inline water-treatment installation.
• Quartz tube: Included.
• UV lamp: Included.
• Electronic ballast: Included.
• Product supplied: Complete UVC Pro PRO-06 UV reactor.

Applications:

• Domestic water treatment.
• Drinking-water treatment.
• Borehole water treatment.
• Point-of-entry UV treatment.
• Household water-treatment systems.
• Small commercial water-treatment systems.
• UV microbial treatment.
• Compatible water-purification systems.
• Applications requiring UV treatment at flows up to approximately 1,200 LPH.

Why choose the UVC Pro UV reactor 24W PRO-06?

• Complete UV reactor: Supplied as a complete PRO-06 UV treatment unit.
• 24W UV lamp: Provides the UV-C light source for microbial treatment.
• 20 L/min capacity: Suitable for compatible domestic and light commercial applications.
• 304 stainless-steel reactor: Provides a durable chamber for UV water treatment.
• ½” male connections: Suitable for compatible plumbing installations.
• Chemical-free treatment: Uses UV-C radiation rather than adding chemical disinfectants to the water.
• Replacement components available: Lamp, quartz tube and electronic ballast can be replaced separately.
• Dedicated UVC Pro components: Designed around the PRO-06 24W lamp, quartz tube and compatible ballast.
• Suitable for domestic applications: A compact option for compatible household and small water-treatment systems.

How the UV reactor works:

• Water enters the UV reactor.
• Water flows around the quartz tube containing the 24W UV lamp.
• The UV lamp produces UV-C radiation.
• UV-C exposure helps inactivate microorganisms as the water passes through the reactor.
• Treated water exits the reactor and continues to the point of use.

Installation & maintenance:

• Install the UV reactor in the correct direction of water flow.
• Confirm that the plumbing is compatible with the ½” male connections.
• Suitable ½” female fittings are required to connect to the reactor.
• Install suitable pre-filtration before the UV system where required.
• Ensure the incoming water is suitable for UV treatment.
• Do not exceed the recommended flow rate.
• Isolate the water and electrical supply before servicing.
• Never operate the UV lamp outside the reactor.
• Never look directly at an operating UV lamp.
• Avoid direct exposure of skin and eyes to UV-C radiation.
• Clean the quartz tube periodically according to the water quality and maintenance requirements.
• Replace the UV lamp when it reaches the end of its recommended service life.
• Inspect the quartz tube during maintenance and replace it if cracked or damaged.
• Check all water connections for leaks after installation.
• Protect the electronic ballast from water ingress.
• Use suitable surge protection to help protect the electrical components.

Warranty & electrical safety:

Due to the sensitive nature of electrical products, consumables such as bulbs and ballasts do not carry a warranty. It is recommended that suitable surge protection be installed to help protect the electrical components from voltage fluctuations and electrical surges.
