Description

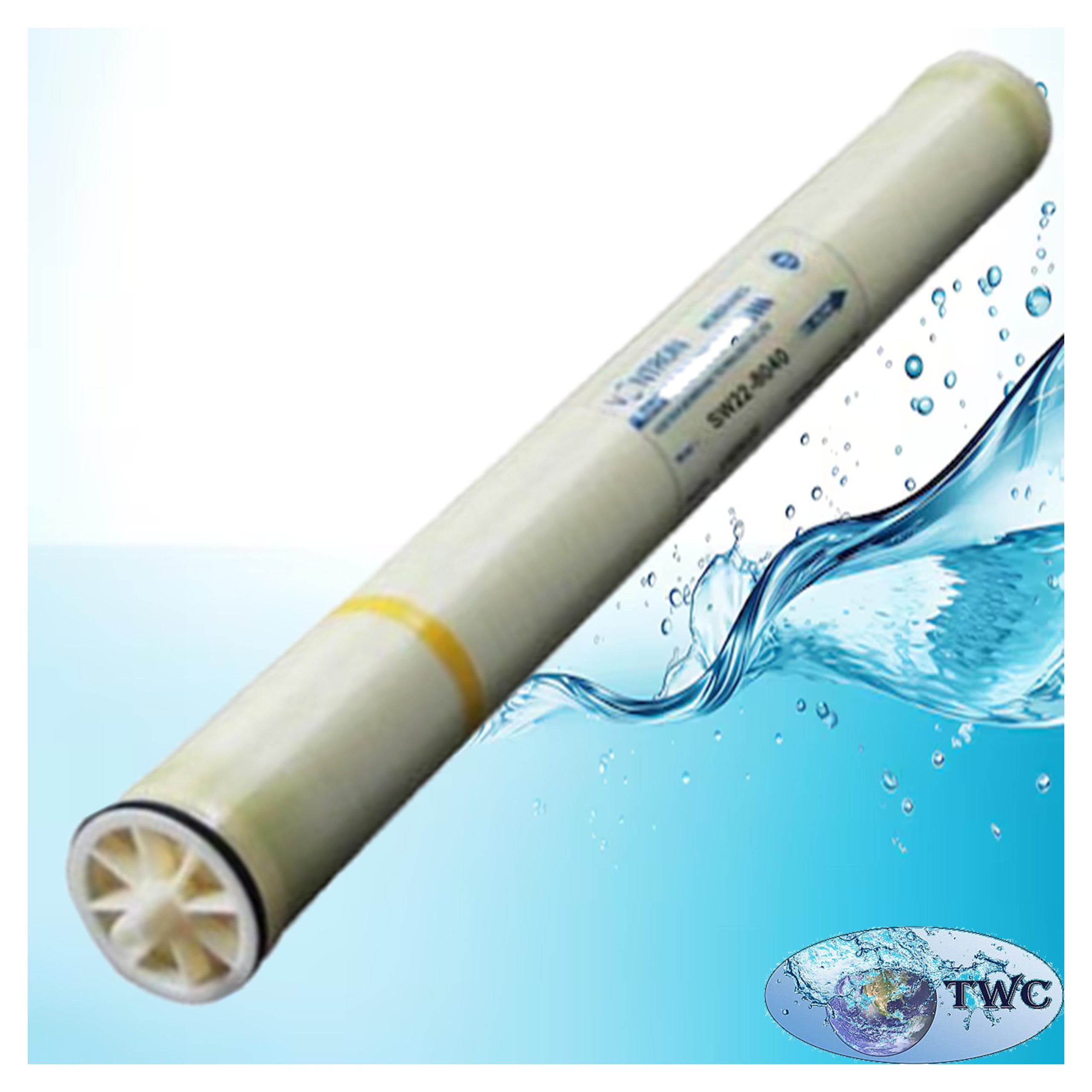

The Vontron SW22-8040 Seawater Reverse Osmosis Membrane is a high-performance 8-inch RO membrane specifically designed for seawater desalination and high-salinity brackish water treatment. Manufactured using advanced Thin Film Composite (TFC) technology, it provides excellent salt rejection, high permeate production, and reliable performance under demanding operating conditions.

The SW22-8040 is ideal for desalination plants, offshore installations, marine vessels, island water supplies, industrial process water, and municipal drinking water production. Its high-performance membrane technology produces high-quality purified water while providing dependable long-term operation.

Features:

• High-performance seawater RO membrane.
• Designed for seawater and high-salinity brackish water desalination.
• Advanced Thin Film Composite (TFC) membrane technology.
• Excellent salt rejection of up to 99.7%.
• High permeate production of up to 6,000 GPD.
• Designed for high-pressure RO applications.
• Suitable for demanding marine and industrial environments.
• Reliable performance with proper pretreatment and operation.
• Helps produce high-quality water for drinking and industrial applications.
• Suitable for standard 8-inch RO membrane pressure vessels.

Specifications:

• Model: SW22-8040.
• Membrane Type: Seawater Thin Film Composite (TFC).
• Membrane Size: 8-inch.
• Active Membrane Area: 400 ft² (37.2 m²).
• Average Permeate Flow: 6,000 GPD (22.7 m³/day).
• Stable Salt Rejection: 99.7%.
• Minimum Salt Rejection: 99.5%.

Testing Conditions:

• Testing Pressure: 800 psi (5.52 MPa).
• Testing Solution Temperature: 25°C.
• Testing Solution Concentration: 32,000 ppm NaCl.
• Testing Solution pH: 8.0.
• Recovery Rate of Single Membrane Element: 8–15%.

Operating Limits:

• Maximum Working Pressure: 1,000 psi (6.9 MPa / 69 bar).
• Maximum Feed Water Flow: 75 GPM (17 m³/h).
• Maximum Feed Water Temperature: 45°C.
• Maximum Feed Water SDI: 5.
• Maximum Residual Chlorine: <0.1 ppm.
• Continuous Operating pH Range: 3–10.
• Chemical Cleaning pH Range: 2–12.
• Maximum Pressure Drop per Membrane Element: 15 psi (0.1 MPa).
• Maximum Pressure Drop per Pressure Vessel with Six RO Membranes: 50 psi (0.34 MPa).

Applications:

• Seawater desalination systems.
• High-salinity brackish water treatment.
• Mnicipal drinking water production.
• Industrial water purification.
• Marine and offshore desalination systems.
• Island water supply systems.
• Ship and vessel water treatment systems.
• Industrial process water.
• High-TDS water purification.
• Water reuse and reclamation applications.

Why Choose the Vontron SW22-8040?

• Excellent salt rejection for high-quality permeate production.
• High permeate flow of up to 6,000 GPD (22.7 m³/day).
• High-pressure design specifically suited to seawater desalination.
• Durable TFC construction provides reliable membrane performance.
• Large 400 ft² membrane area provides high production capacity.
• Suitable for demanding applications including marine, municipal, and industrial desalination.
• Reliable long-term performance when operated with suitable pretreatment and maintenance.
• Cost-effective desalination solution for high-salinity water treatment.
