Description

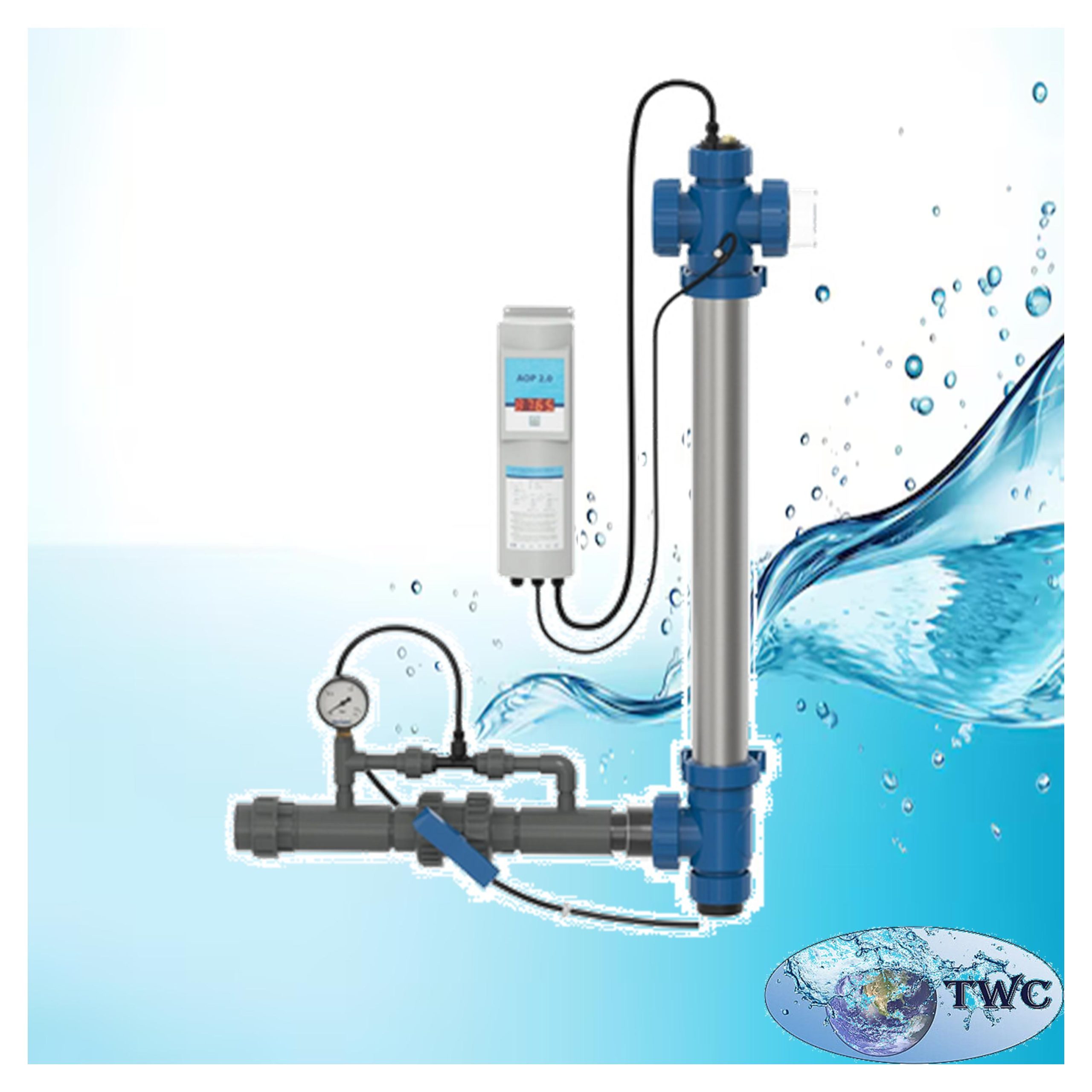

Firstly the Blue Lagoon AOP compact ozone & UV-C 75W is an advanced pool water disinfection system that provides a powerful, multi-stage cleaning process, significantly reducing the need for traditional chemicals like chlorine.
Key Features and Benefits
- Triple Disinfection: This system uses a combination of ozone, UV-C light, and the resulting hydroxyl radicals to kill microorganisms and break down pollutants. Hydroxyl radicals are highly effective oxidizers, more powerful than ozone alone.
- Reduced Chemical Usage: By using this system, you can reduce chlorine use in your pool by 50% to 80%. This helps prevent common issues like skin and eye irritation and strong chlorine odors (chloramines).
- High Efficiency: The unit features a DUPLEX stainless steel housing that reflects UV-C radiation, increasing its effectiveness by up to 35%.
- Dual-Function Lamp: A single lamp produces both ozone and UV-C simultaneously. The lamp has an optimal lifespan of approximately 9,000 hours for UV-C and 4,500 hours for ozone production.
- Indicator Alerts: The system includes a digital indicator that alerts you when the lamp needs replacing.
- Suitable for Various Pools: Also it designs it for pools up to 75,000 liters (75 m³) and offers it in models specifically designed for saltwater pools as well.
- Easy Maintenance: We designed the system for hassle-free installation and maintenance.
Blue Lagoon AOP compact ozone & UV-C 75W Specifications
| Feature | Specification |
| Power | 75W |
| Ozone Production | Max. 0.6 g/h |
| Max. Pool Capacity | Up to 75 m3 (75,000 L) |
| Recommended Flow | 18 m³/h |
| Max. Flow | 23 m³/h |
| Max. Pressure | 2.5 bar |
| Housing Material | DUPLEX Stainless Steel |
| Connections | Ø63mm / 50mm / 1 ½” |
| Unit Length | 100 cm |
How It Works!
- The unit pumps water in.
- Air is drawn into the system via a Venturi system, passing between the quartz glass and the dual-function lamp.
- The lamp generates 185 nm radiations, converting the oxygen in the air into ozone.
- The ozone-enriched air is mixed with the water, starting the oxidation and sterilization process.
- As the water-ozone mixture is exposed to the lamp’s 254 nm UV-C radiation, residual ozone is broken down. Creating highly reactive hydroxyl radicals which further disinfect the water.
- The system returns the treated water to the pool, resulting in clean, clear, and healthy water. The design ensures all ozone in the water is used for the AOP process, so the system needs no deozonation device.
Blue Lagoon AOP compact ozone & UV-C 75W
