Description

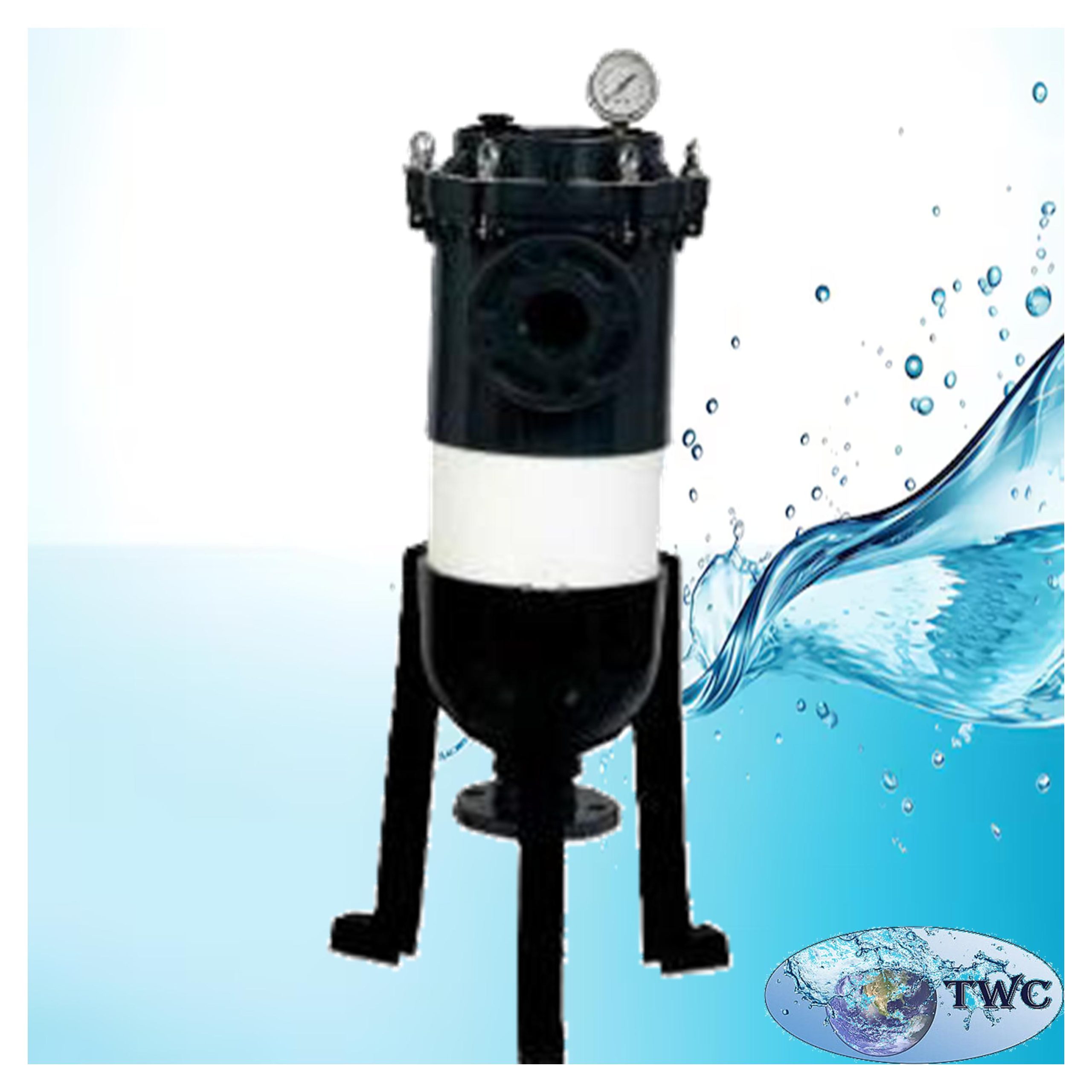

The uPVC Single-Length Bag Filter Housing is a durable and efficient filtration solution designed to remove suspended solids and particulate matter from water and other compatible liquids. The housing accommodates a replaceable filter bag that captures suspended particles as water passes through the filtration media.

The single-length configuration provides an economical and space-efficient filtration solution for applications that require reliable sediment removal without the larger footprint of a double-length housing. The compact design makes it particularly suitable for installations with moderate flow requirements and limited installation space.

The housing is manufactured from uPVC, providing excellent corrosion resistance and making it suitable for a wide range of water-treatment applications. Stainless-steel bolts provide secure assembly and dependable operation in demanding environments.

The housing features 2″ DN50 flanged inlet and outlet connections, together with a ¼” BSP air vent connection. A ¼” BSP pressure-gauge connection is also provided, although the pressure gauge is not included.

The bag filter housing can be installed as a pre-filtration stage before equipment such as water softeners, Reverse Osmosis systems, UV sterilisers, pumps and other downstream treatment equipment. It is particularly effective for removing sediment, dirt, rust and other suspended particles that could damage or reduce the efficiency of downstream systems.

Features:

• uPVC single-length bag filter housing.
• Designed for the removal of suspended solids and particulate matter.
• Supplied with a 5-micron nominal filter bag.
• Single-length configuration for compact installations.
• Uses a 7″ × 17″ filter bag.
• Corrosion-resistant uPVC housing.
• 316 Stainless-steel bolts.
• Includes an internal support basket.
• Includes a mounting stand.
• 2″ DN50 flanged inlet and outlet connections.
• Includes a ¼” BSP air vent.
• ¼” BSP pressure-gauge connection.
• Suitable for pre-treatment and general water filtration.
• Easy access for filter-bag replacement and maintenance.
• Helps protect downstream filtration and water-treatment equipment.
• Suitable for residential, commercial and light industrial applications.

Specifications:

• Housing material: uPVC.
• Bolt material: 316 Stainless steel bolts.
• Housing diameter: 225 mm.
• Filter type: Bag filter.
• Included filter bag: 5-micron nominal.
• Filter-bag size: 7″ × 17″ (approximately 178 × 419 mm).
• Inlet connection: 2″ DN50 flange.
• Outlet connection: 2″ DN50 flange.
• Air vent: ¼” BSP, included.
• Pressure-gauge connection: ¼” BSP.
• Pressure gauge: Not included.
• Maximum operating pressure: Up to 4 bar, depending on the configuration.
• High-pressure configuration: Up to 7 bar, depending on the configuration.
• Maximum flow rate: Up to 12 m³/h, depending on operating conditions.
• Operating temperature: 4 to 45°C.
• Installation: Vertical.
• Mounting stand: Included.
• Support basket: Included.
• Filtration method: Replaceable filter-bag filtration for suspended solids removal.

Applications:

• Borehole water pre-filtration.
• Municipal water filtration.
• General water-treatment systems.
• Pre-treatment before water softeners.
• Suspended-solids removal.
• Sediment filtration.
• Pre-treatment before Reverse Osmosis systems.
• Pre-treatment before UV water sterilisation.
• Pre-treatment before water softeners.
• Protection of pumps and downstream equipment.
• Irrigation water filtration.
• Process-water filtration.
• Residential water-treatment applications.
• Commercial water-treatment systems.
• Light industrial water treatment.
• Applications requiring replaceable bag filtration.

Why Choose a uPVC Single-Length Bag Filter Housing?

• Effective Sediment Filtration: Helps remove suspended solids, dirt and particulate matter from the water supply.
• Compact Design: The single-length configuration is ideal for installations where available space is limited.
• Corrosion Resistant: uPVC construction provides excellent resistance to corrosion in suitable water-treatment applications.
• Easy Maintenance: The filter bag can be removed and replaced quickly when maintenance is required.
• Protects Downstream Equipment: Helps reduce the amount of sediment reaching pumps, membranes, UV systems and other treatment equipment.
• Pre-Treatment Solution: Can be installed as an effective first-stage filtration system before additional water-treatment equipment.
• Durable Construction: Stainless-steel bolts provide secure assembly and reliable service.
• Practical Design: The housing provides a simple, reliable and easy-to-maintain solution for applications requiring replaceable filter bags.
• Cost-Effective Filtration: Provides an economical alternative to stainless-steel filter housings.
• High Flow Capability: Suitable for applications with flow rates of up to 12 m³/h under appropriate operating conditions.
• Versatile Applications: Suitable for residential, commercial and light industrial water-treatment systems.
