Description

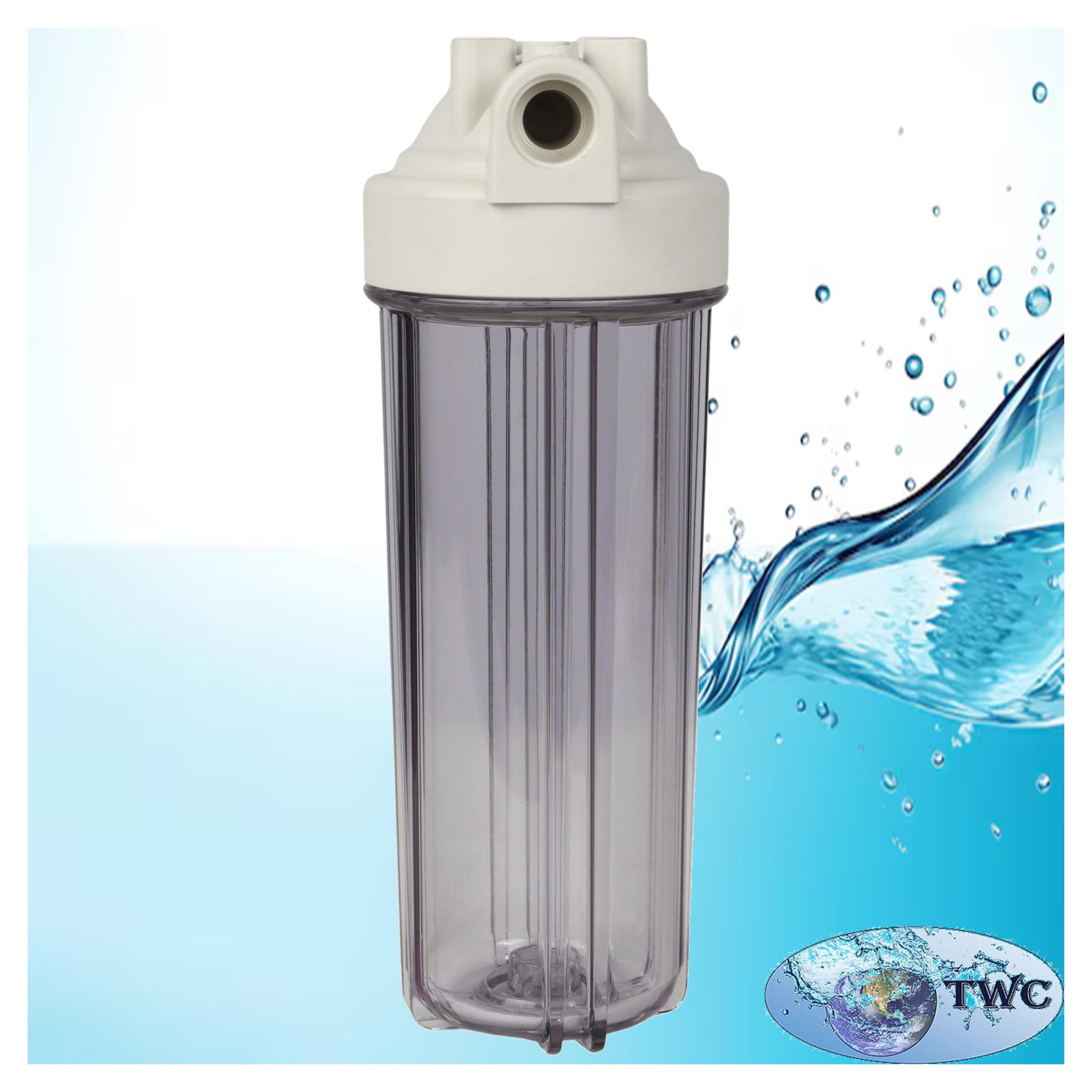

The Cartridge Filter Housing 2.5″ x 10″ Clear 3/4″ Inlet/Outlet is designed for reliable residential, commercial, and light industrial water filtration. Manufactured from durable reinforced polypropylene with a transparent Styrene Acrylonitrile (SAN) sump, it allows for easy visual inspection of the filter cartridge without disassembling the housing.
This slimline filter housing offers excellent chemical compatibility while providing dependable performance for sediment filtration, reverse osmosis pre- and post-filtration, food service, recreational vehicles, and general water treatment applications. Compatible with most standard 2.5″ x 10″ slimline filter cartridges, it provides a versatile solution for improving water quality.
Features:
- Durable reinforced polypropylene cap for long service life.
- Clear SAN sump allows easy inspection of cartridge condition.
- Slimline design saves installation space.
- Leak-proof double O-ring sealing system.
- Excellent chemical resistance.
- Compatible with most standard 2.5″ x 10″ filter cartridges.
- Suitable for residential, commercial, and light industrial applications.
Specifications:
- Housing size: 2.5″ x 10″.
- Housing material: Clear Styrene Acrylonitrile (SAN).
- Cap material: Reinforced Polypropylene (White).
- Inlet/outlet: 3/4″ Female Thread.
- O-ring: Buna-N.
- Button assembly: 300 Series Stainless Steel, EPDM & Polypropylene.
- Temperature range: 4.4°C to 51.7°C (40°F to 125°F).
- Maximum operating pressure: 8.6 bar (125 psi).
- Recommended flow rate: 4–6 GPM (15–23 L/min).
Applications:
- Residential drinking water filtration.
- Under-sink water filtration systems.
- Countertop filtration systems.
- Reverse osmosis pre-filtration.
- Reverse osmosis post-filtration.
- Food service applications.
- Recreational vehicles (RV).
- Humidification systems.
- Light commercial water filtration.
Installation:
Install the housing securely using the supplied mounting bracket or suitable mounting hardware. Fit a compatible 2.5″ x 10″ filter cartridge, lubricate the O-ring with food-grade silicone lubricant, and tighten the sump by hand. Slowly open the water supply and check for leaks before placing the system into normal operation.
Why Choose the Cartridge Filter Housing 2.5″ x 10″ Clear 3/4″ Inlet/Outlet?
- Clear housing makes cartridge inspection quick and easy.
- Durable construction provides long-lasting performance.
- Compatible with a wide range of standard slimline cartridges.
- Compact design fits installations where space is limited.
- Excellent chemical resistance for reliable operation.
- Suitable for a wide variety of residential and commercial water filtration systems.
