Description

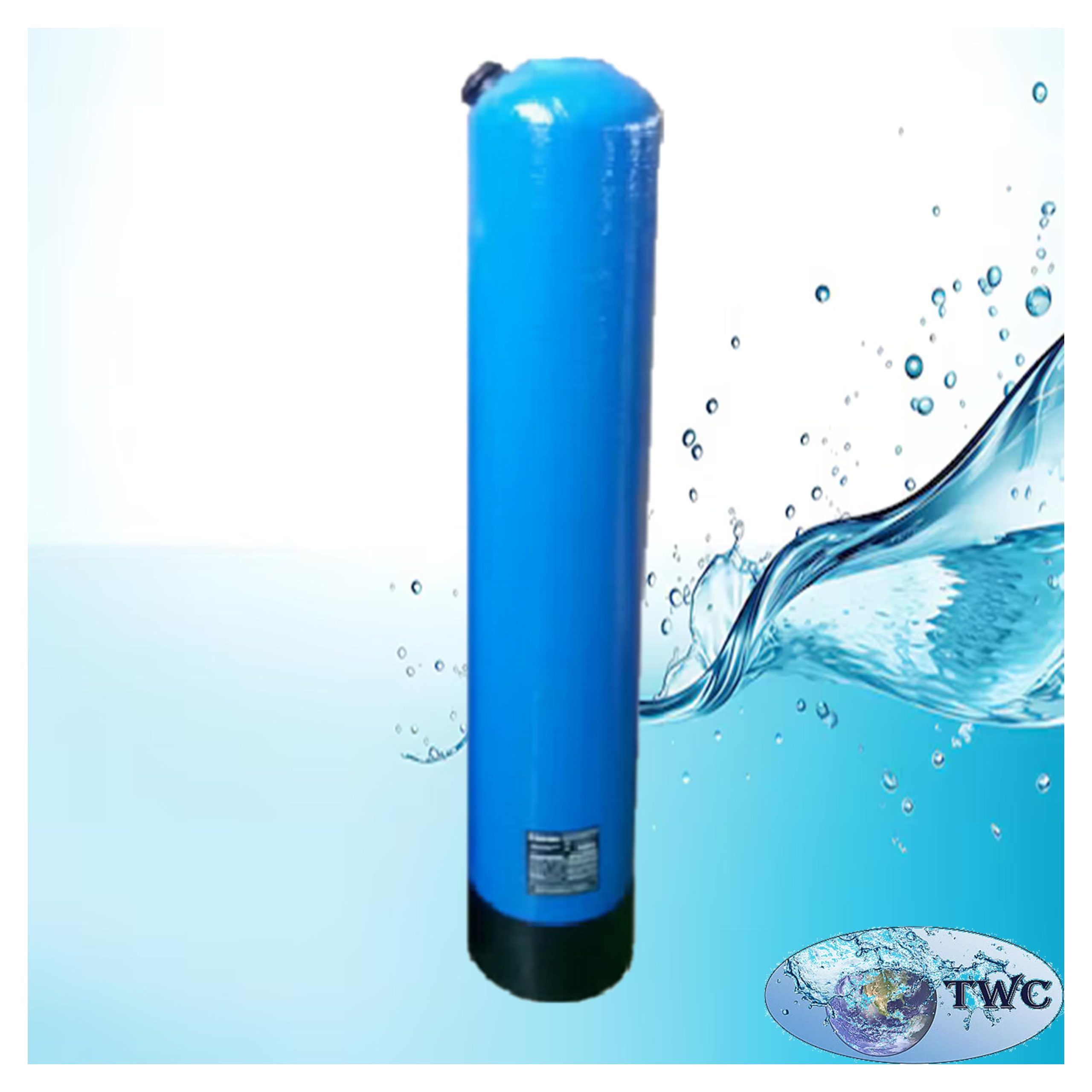

The WC FRP pressure vessel 10″ x 54″ (62L) with 2.5″ side dome hole is a high-quality pressure vessel designed for residential, commercial, and industrial water treatment applications. Manufactured from durable fiberglass reinforced plastic (FRP) with a food-grade polyethylene inner liner, this vessel offers excellent corrosion resistance, high pressure performance, and a long service life.
The integrated 2.5″ side dome hole provides convenient access to the filter media, allowing inspection, replacement, or maintenance without removing the control valve or internal distributor assembly. This significantly reduces maintenance time and simplifies servicing.
Suitable for water softeners, activated carbon filters, multimedia filters, iron and manganese removal systems, and other pressure filtration applications, the vessel is built to deliver reliable performance in demanding environments.
Features:
- Heavy-duty fiberglass reinforced plastic (FRP) construction.
- Food-grade polyethylene (HDPE) inner liner.
- 2.5″ side dome opening for easy media access.
- Excellent corrosion and chemical resistance.
- High-pressure design for demanding applications.
- Lightweight yet extremely durable.
- Suitable for a wide range of filtration media.
- Long service life.
- NSF and ACS certified materials.
- Ideal for residential, commercial, and industrial water treatment systems.
Specifications:
- Product: WC FRP pressure vessel with side dome hole.
- Vessel size: 10″ x 54″.
- Vessel capacity: 62.4 Litres.
- Side dome opening: 2.5″.
- Inner liner: Food-grade HDPE (Polyethylene).
- Outer shell: Fiberglass reinforced plastic (FRP).
- Maximum operating pressure: 150 psi (10.3 bar)
- Maximum operating temperature: 120°F (49°C) threaded / 150°F (66°C) flanged.
- Recommended flow rate: 600 – 1,500 L/h (10 – 25 L/min).
Applications:
- Water softeners.
- Activated carbon filtration.
- Multimedia filtration.
- Iron removal systems.
- Manganese removal systems.
- Katalox Light filtration.
- DMI-65 filtration.
- Sediment filtration.
- Borehole water treatment.
- Commercial water treatment.
- Industrial process water.
- Reverse osmosis pre-treatment.
Why choose the WC FRP pressure vessel 10″ x 54″ (62L)?
- Convenient 2.5″ side dome allows fast media inspection and replacement.
- Manufactured using automated production for consistent quality.
- Food-grade HDPE liner ensures safe potable water applications.
- High-strength FRP construction provides excellent durability and corrosion resistance.
- Suitable for a wide range of filtration media and water treatment systems.
- NSF and ACS certified materials for reliable performance.
- Lightweight design simplifies installation while maintaining high pressure capability.
- Designed for long-term operation in residential, commercial, and industrial applications.
