Description

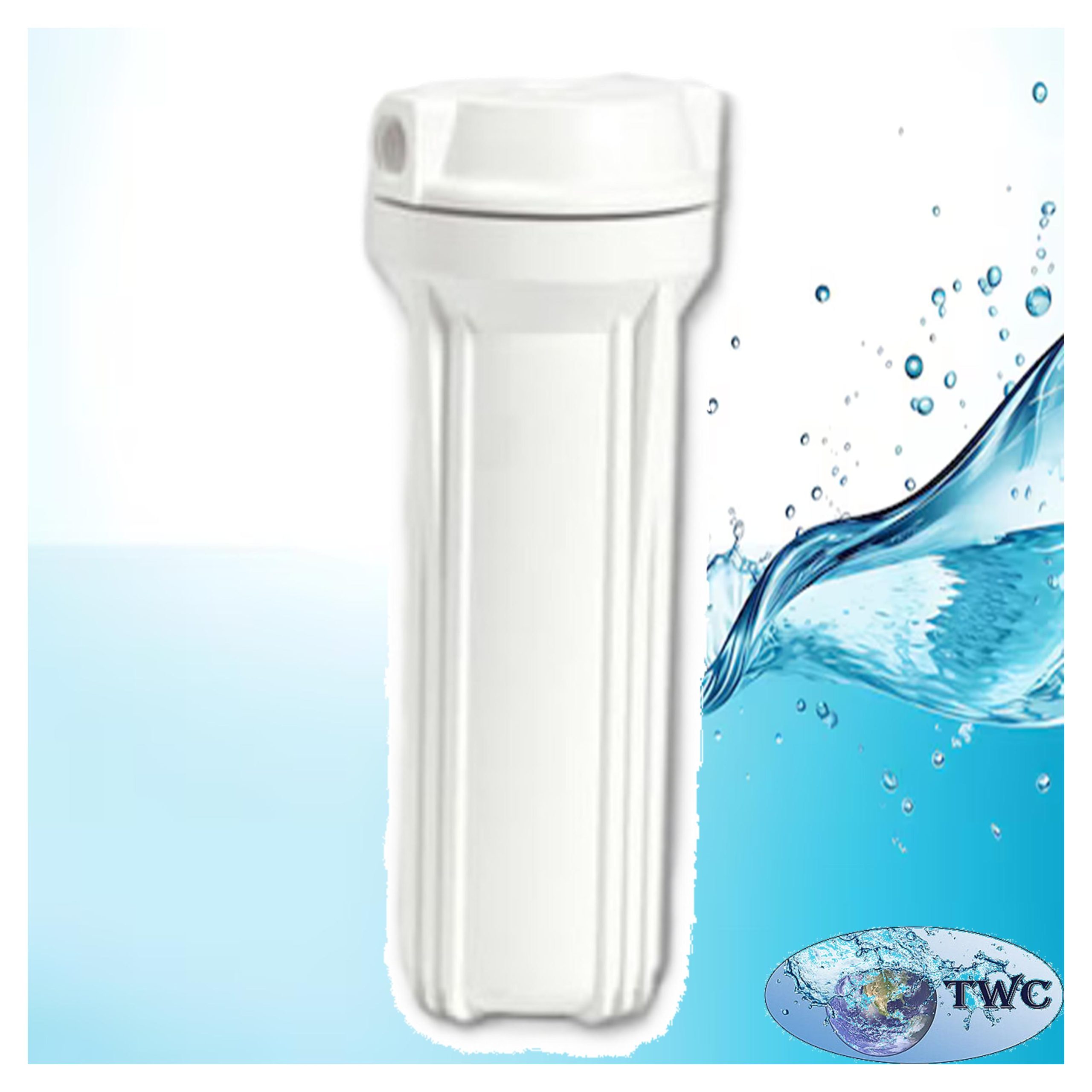

The Cartridge Filter Housing 2.5″ x 10″ White – 3/4″ Inlet/Outlet is a durable and compact filter housing designed for residential, commercial, and light industrial water filtration systems. Manufactured from reinforced polypropylene with the option of either an opaque polypropylene this housing is compatible with all standard 2.5″ x 10″ filter cartridges.
Designed for excellent chemical compatibility and long service life, the Cartridge Filter Housing 2.5″ x 10″ White – 3/4″ Inlet/Outlet is ideal for under-sink filtration, countertop systems, reverse osmosis pre- and post-filtration, recreational vehicles, food service, and humidification applications. Its slimline design reduces installation space while providing reliable, leak-free filtration performance.
Features:
- Compatible with standard 2.5″ x 10″ filter cartridges.
- Durable reinforced polypropylene construction.
- Available with a clear SAN or opaque polypropylene sump.
- Slimline design for compact installations.
- Leak-proof Buna-N O-ring seal.
- Excellent chemical compatibility.
- Suitable for residential, commercial, and light industrial water filtration.
- Easy cartridge replacement and maintenance.
Specifications:
- Housing size: 2.5″ x 10″.
- Housing material: Polypropylene (Opaque).
- Cap material: Reinforced Polypropylene.
- Button assembly: 300 Series Stainless Steel, EPDM & Polypropylene.
- O-ring: Buna-N.
- Inlet/Outlet connections: 3/4″ Female Thread.
- Maximum operating pressure: 125 psi (8.6 bar).
- Operating temperature: 4.4°C to 51.7°C (40°F to 125°F).
- Compatible cartridge size: Standard 2.5″ x 10″.
- Recommended flow rate: 4–6 GPM (15–23 L/min).
Applications:
- Under-sink drinking water systems.
- Countertop water filtration.
- Reverse osmosis pre-filtration.
- Reverse osmosis post-filtration.
- Recreational vehicle (RV) filtration.
- Food service equipment.
- Humidification systems.
- Residential water filtration.
- Light commercial filtration.
- General-purpose liquid filtration.
Installation:
Install the housing using a suitable mounting bracket where required. Fit a compatible 2.5″ x 10″ filter cartridge, ensuring the Buna-N O-ring is clean and lightly lubricated with food-grade silicone lubricant before tightening the sump. Connect the 3/4″ threaded inlet and outlet fittings, slowly pressurise the system, and inspect for leaks before placing the unit into service.
Why Choose the Cartridge Filter Housing 2.5″ x 10″ White – 3/4″ Inlet/Outlet?
- Compatible with a wide range of standard 2.5″ x 10″ filter cartridges.
- Durable reinforced polypropylene construction for long service life.
- Compact slimline design fits easily into confined spaces.
- Leak-proof Buna-N O-ring provides dependable sealing.
- Excellent chemical resistance for a wide range of water treatment applications.
- Ideal for reverse osmosis systems, drinking water filtration, food service, and general water treatment.
