Description

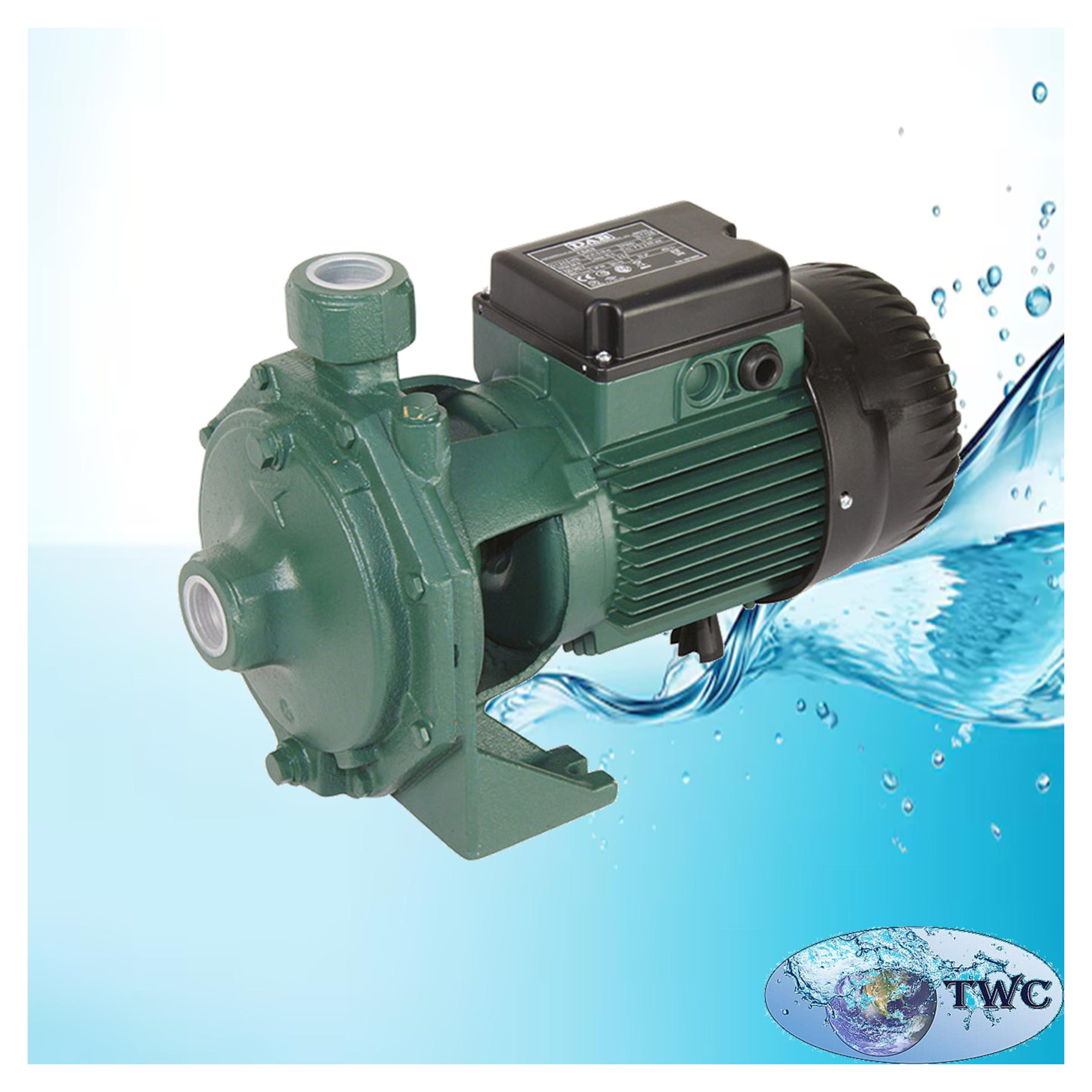

The DAB K 35/40 T is a compact and reliable double-impeller centrifugal pump designed for applications where dependable water pressure and efficient water transfer are required.

With its 0.75 kW three-phase motor and twin-impeller hydraulic design, the pump is capable of producing higher pressure than many conventional single-impeller pumps of a similar size. It is particularly suitable for water pressure boosting, filling pressure vessels, sprinkler systems, irrigation and general water supply applications.

The pump features a cast-iron pump body and motor support, a durable technopolymer impeller arrangement and a carbon/ceramic mechanical seal for dependable operation. The motor is a closed asynchronous type with external ventilation cooling, while oversized ball bearings contribute to low-noise operation and long service life.

The K 35/40 T can be installed in either a horizontal or vertical position, provided that the motor remains positioned above the pump. It is designed for pumping clean water and liquids with characteristics similar to water.

Features:

• AB K 35/40 T double-impeller centrifugal pump.
• 0.75 kW / 1 HP nominal motor power.
• Three-phase 230–400 V electrical supply.
• Twin-impeller design for enhanced pressure performance.
• Maximum head of approximately 43.5 metres.
• Suitable for domestic, commercial, agricultural and light industrial applications.
• Cast-iron pump body.
• Cast-iron motor support.
• Durable technopolymer impellers.
• Carbon/ceramic mechanical seal.
• Closed asynchronous motor.
• External ventilation cooling.
• Oversized ball bearings for durability and reduced noise.
• Suitable for pressure boosting and water supply.
• Suitable for irrigation and sprinkler systems.
• Can be installed horizontally or vertically.
• Maximum ambient temperature: +40°C.
• Designed for clean water and similar liquids.
• Reliable DAB construction and engineering.

Specifications:

• Brand: DAB.
• Series: K series.
• Model: K 35/40 T.
• Pump type: Double-Impeller Centrifugal Pump.
• Motor power: 0.75 kW. Motor power: 1 HP.
• Motor type: Three-phase asynchronous motor.
• Power supply: 3 × 230–400 V.
• Frequency: 50 Hz.Rated speed: Approximately 2,850 rpm.
• Maximum head: Approximately 43.5 m.
• Maximum operating pressure: 6 bar / 600 kPa.
• Maximum ambient temperature: +40°C.
• Liquid temperature: -10°C to +50°C.
• Pump body: Cast iron.
• Motor support: Cast iron.
• Impellers: Technopolymer.
• Mechanical seal: Carbon / ceramic.
• Motor cooling: External ventilation.
• Installation position: Horizontal or vertical.
• Suction connection: 1½″ G.
• Discharge connection: 1″ G.
• Pumped liquid: Clean water and liquids with similar characteristics.
• Motor protection: Suitable overload protection required.
• Approximate weight: 20–22 kg.

Applications:

• Domestic water supply systems.
• Commercial water supply systems.
• Industrial water supply applications.
• Water pressure boosting systems.
• Pressure vessel systems.
• Irrigation systems.
• Agricultural water supply.
• Sprinkler systems.
• Garden irrigation.
• Water transfer between storage tanks.
• Tank filling applications.
• General clean-water pumping.
• Small-scale water treatment plants.
• Accommodation facilities, lodges and guest houses.
• Offices and commercial buildings.
• Booster pump installations.
• General water distribution systems.
