Description

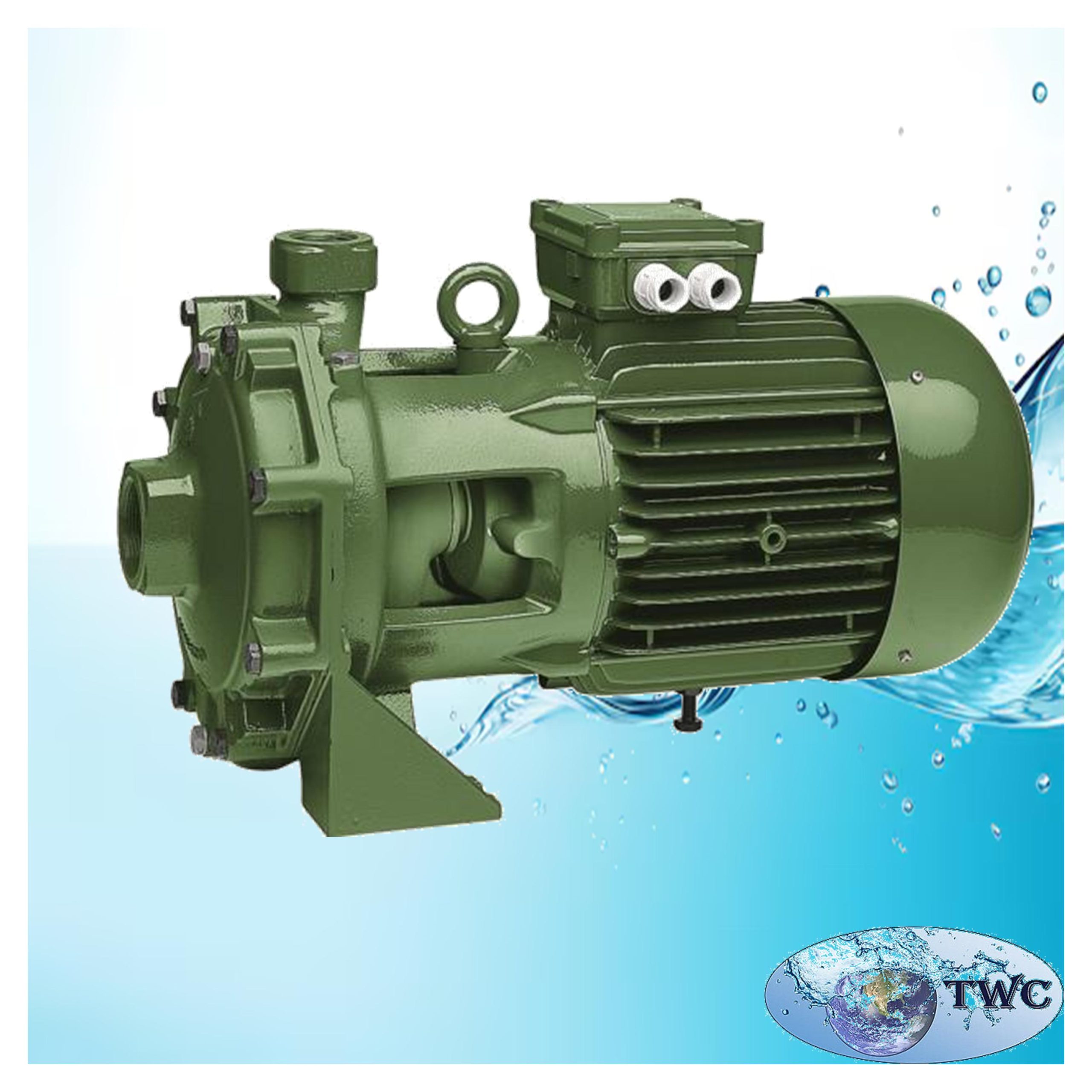

The DAB K70/300 T is a robust, high-performance double-impeller centrifugal pump designed for water supply, pressure boosting, irrigation and general water-transfer applications.

With its twin-impeller configuration, the pump is capable of producing high delivery pressures and is particularly suitable for pressurisation units, pressure-vessel filling, sprinkler irrigation and general water-supply systems.

The pump is suitable for domestic, civil, commercial, industrial and agricultural water installations, making it a versatile solution for applications where dependable water pressure and reliable pumping performance are required.

The K70/300 T features a cast-iron pump body and motor support, technopolymer impellers, stainless-steel shaft and carbon/ceramic mechanical seal. Its enclosed asynchronous three-phase motor is externally ventilated and fitted with oversized ball bearings to provide reliable operation, durability and reduced operating noise.

Features:

• DAB K70/300 T.
• Double/twin-impeller centrifugal design.
• 7.5 HP motor rating.
• Three-phase motor.
• High-head pumping performance.
• Cast-iron pump body.
• Cast-iron motor support.
• Technopolymer impellers.
• Stainless-steel shaft.
• Carbon/ceramic mechanical seal.
• Enclosed asynchronous motor.
• External ventilation cooling.
• Oversized ball bearings.
• IE3 motor efficiency class in the current DAB catalogue.
• Horizontal or vertical installation.
• Designed for fixed installation.
• Suitable for clean-water applications.
• Maximum operating pressure of 12 bar.
• Maximum ambient temperature of +40°C.
• Suitable for demanding water-supply applications.

Specifications:

• Brand: DAB.
• Model: K70/300 T.
• Pump type: Double-Impeller Centrifugal Pump.
• Motor type: Three-Phase.
• Motor rating: 7.5 HP.
• Nominal motor output: 5.5 kW.
• Maximum motor input P1: Approximately 6.9 kW.
• Voltage: 3 × 400 V.
• Frequency: 50 Hz.
• Nominal current: 12.9 A.
• Motor efficiency: IE3.
• Nominal speed: Approximately 2,900 rpm.
• Maximum head: Approximately 76 m.
• Maximum operating pressure: 12 bar / 1,200 kPa.
• Maximum ambient temperature: +40°C.
• Liquid temperature: -15°C to +110°C.
• Suction connection: 2″ G.
• Delivery connection: 1¼” G.
• Pump body: Cast iron.
• Motor support: Cast iron.
• Impeller: Technopolymer.
• Shaft: Stainless steel.
• Mechanical seal: Carbon/Ceramic.
• Protection: IP44.
• Terminal board protection: IP55.
• Insulation class: F.
• Installation: Horizontal or vertical.
• Pump weight: Approximately 70–72 kg depending on catalogue revision/configuration.

Applications:

• Domestic water supply systems.
• Commercial water supply systems.
• Civil water supply systems.
• Industrial water supply systems.
• Agricultural water supply systems.
• Water pressure boosting.
• Pressurisation units.
• Pressure vessel filling.
• Sprinkler irrigation systems.
• Agricultural irrigation.
• Garden irrigation.
• Water transfer.
• Water distribution systems.
• Storage tank filling.
• Water treatment installations.
• Industrial process-water systems.
• General clean-water pumping.
• High-pressure water supply.
• Decanting applications.
• Water mixing applications.
