Description

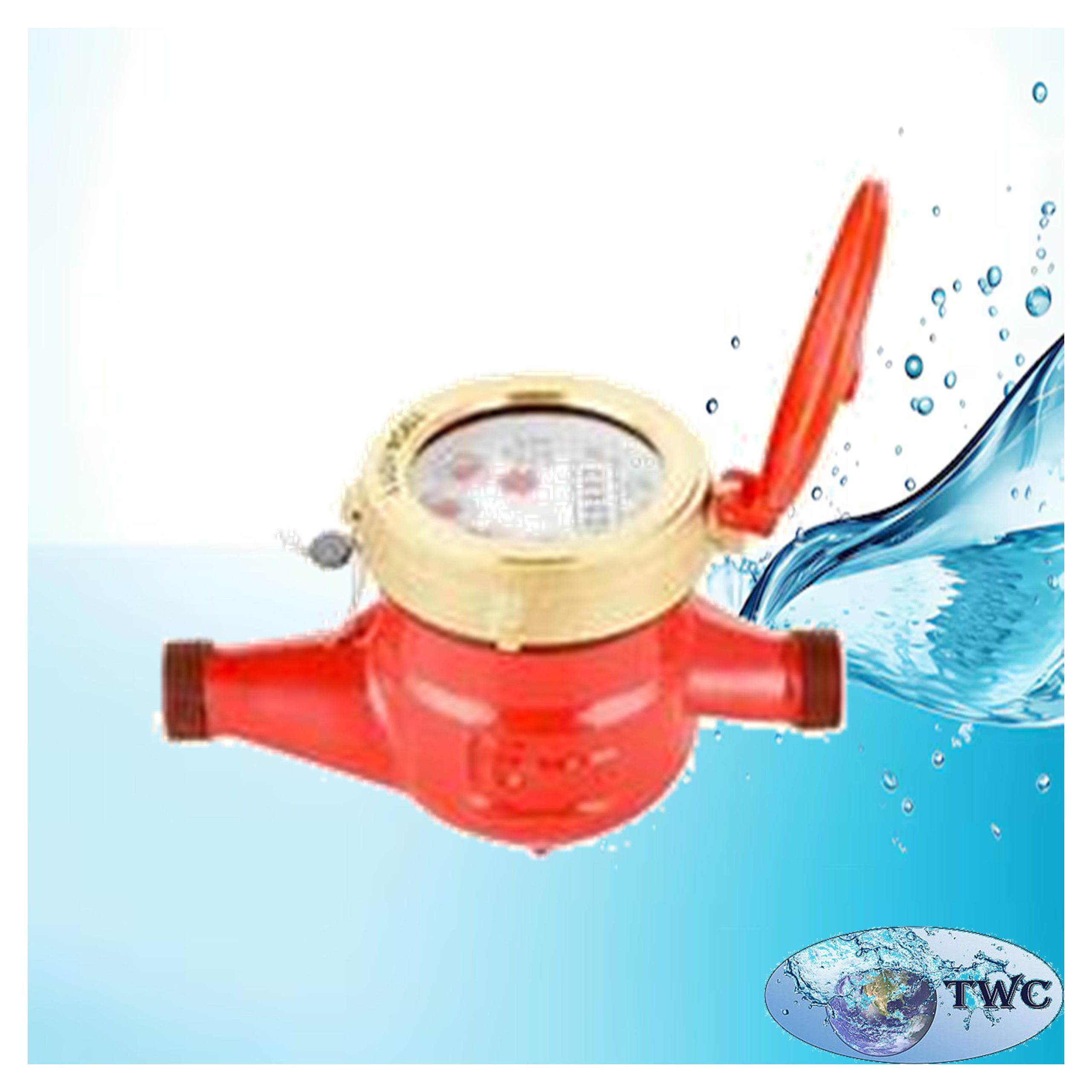

The multi-jet brass hot water meter – 20mm is a durable and accurate water meter designed for measuring hot and cold potable water consumption in domestic and small commercial applications. Its multi-jet design provides reliable water measurement, while the DZR brass body offers excellent durability for long-term use.

Designed for hot water applications up to 90°C, this 20mm water meter is well suited to domestic hot water systems, larger geyser installations, apartments, sectional-title properties, guest accommodation and small commercial installations where accurate water usage measurement is required.

The meter features a clear, sealed dry-dial register that records water consumption in cubic meters (m³), making readings easy to view and record. It is also pulse-ready, allowing the meter to be integrated with suitable remote monitoring, automated reading or water-management systems.

The meter complies with SANS 1529-1:2019 Class B requirements and is suitable for potable water measurement. The removable strainer helps protect the internal measuring mechanism from suspended particles while allowing easier maintenance.

Features:

• 20mm Multi-jet water meter for hot and cold potable water.
• Suitable for hot water temperatures up to 90°C.
• DZR (Dezincification Resistant) brass body for durability.
• Clear, sealed dry-dial register for easy reading.
• Measures water consumption in m³.
• Reading resolution down to 0.0002 m³.
• Pulse-ready for remote monitoring and automated water management.
• Standard pulse configuration of 1 pulse per 10 liters.
• Removable inlet strainer for easier maintenance.
• Suitable for domestic and small commercial applications.
• Working pressure up to 1600 kPa.
• Designed for reliable measurement with reduced susceptibility to suspended solids.
• Complies with SANS 1529-1:2019 Class B requirements.
• Suitable for potable water measurement.
• ISO metric-compatible inlet and outlet connections.

Specifications:

• Product: Multi-jet brass hot water meter.
• Nominal size: 20mm.
• Meter type: Multi-jet inferential water meter.
• Body material: DZR brass.
• Application: Hot and cold potable water.
• Maximum hot water temperature: 90°C.
• Maximum cold water temperature: 50°C.
• Maximum working pressure: 1600 kPa.
• Register type: Sealed dry dial.
• Register unit: Cubic meters (m³).
• Reading resolution: 0.0002 m³.
• Pulse ready: Yes.
• Pulse configuration: 1 pulse per 10 liters.
• Strainer: Removable.
• Installation: Suitable for horizontal or vertical installation where permitted by the applicable installation requirements.
• Connection: ISO metric-compatible inlet and outlet threads.
• Compliance: SANS 1529-1:2019 Class B.
• Meter length: 165mm.

Application:

• Domestic hot water systems.
• Geyser and hot water installations.
• Residential properties.
• Apartments and sectional-title developments.
• Individual unit sub-metering.
• Guest houses and accommodation facilities.
• Small businesses and offices.
• Hot water consumption monitoring.
• Water usage management and billing.
• Installations requiring pulse-ready water metering.

Why choose the multi-jet brass hot water meter – 20mm?

• The multi-jet brass hot water meter – 20mm combines accurate water measurement, durable construction and hot-water capability in a robust 20mm meter.
• Its DZR brass construction provides a durable solution for long-term water metering, while the sealed dry-dial register makes consumption easy to read.
• The removable strainer provides additional protection for the meter mechanism and makes maintenance more convenient.
• For applications requiring more than a traditional visual meter reading, the pulse-ready output allows the meter to be incorporated into suitable monitoring and water-management systems.
• With a 90°C maximum hot-water temperature rating, 1600 kPa working pressure, and SANS 1529-1:2019 Class B compliance, this meter is a practical choice for domestic and small commercial hot water measurement.
• Whether you need to monitor hot water consumption in a home, apartment, guest accommodation or small commercial property, this 20mm multi-jet brass water meter provides a dependable solution for measuring and managing water usage.
