Description

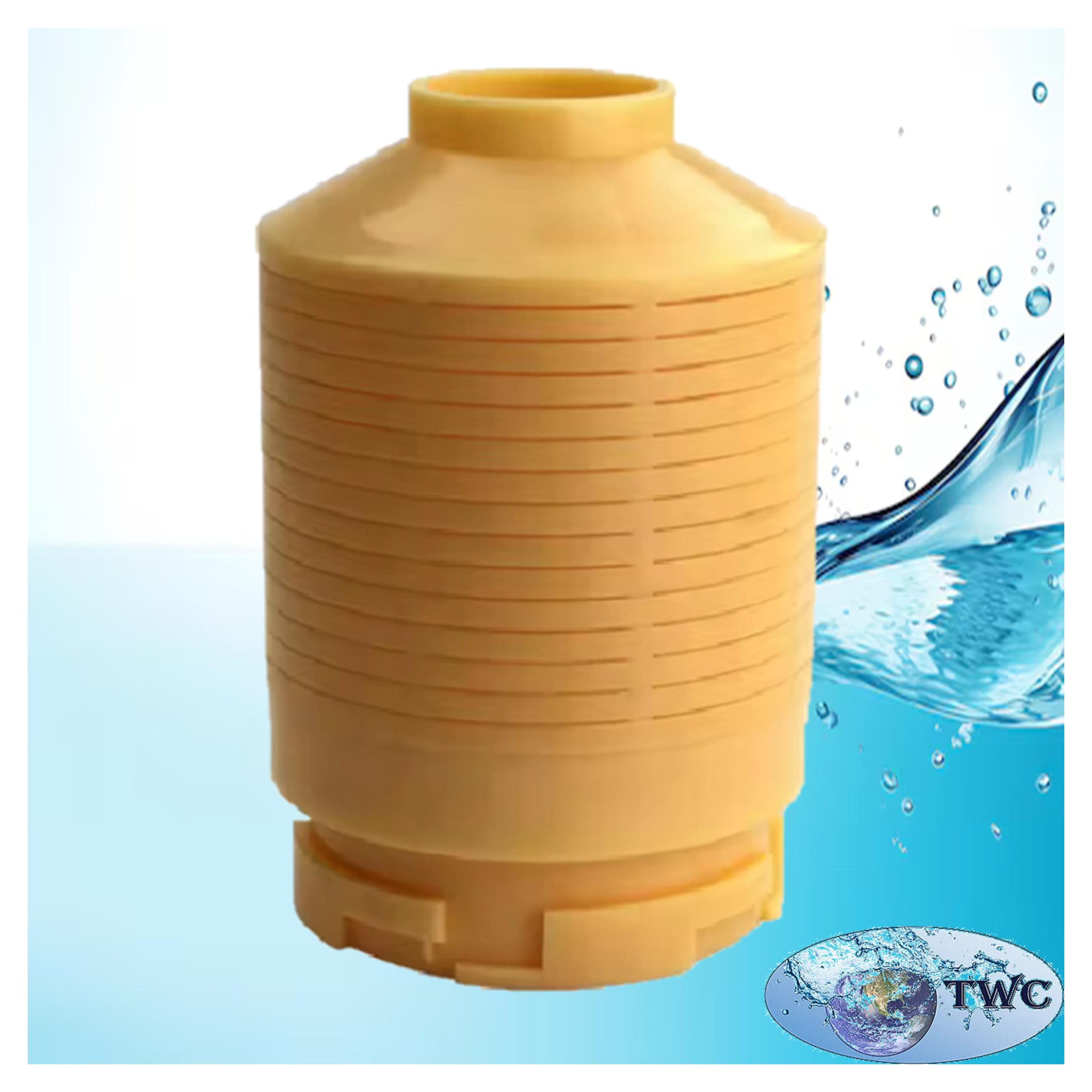

This is designed top distributor for 13″–16″ FRP tanks with a 2.5″ mount as an internal water-distribution component for compatible FRP water-treatment vessels. Installed at the top of the vessel, the distributor forms part of the internal water-flow system and helps distribute water through the treatment media while helping prevent granular filter media from reaching the control valve.
During normal filtration, the distributor helps direct water through the treatment media and towards the internal distribution system. During backwashing, the operator reverses the water-flow direction, allowing the distributor to assist with distributing backwash water through the media bed and supporting the removal of accumulated contaminants.
The distributor is suitable for compatible water softeners, activated carbon filters, quartz and sand filters and other media-based water-treatment systems using a 2.5″ head-mount connection.
Features:
- Designed for compatible 13″–16″ FRP water-treatment vessels.
- 2.5″ mounting connection.
- Top-mounted distributor design.
- Helps distribute water through the treatment media.
- Helps promote more even water distribution through the media bed.
- Helps retain granular treatment media within the vessel.
- Helps protect the control valve from treatment-media particles.
- Suitable for water softening systems.
- Suitable for activated carbon filtration systems.
- Suitable for quartz and sand filtration systems.
- Suitable for backwashing filter systems.
- Suitable for up-flow filtration applications where compatible.
- Compact internal design.
- Simple mechanical component.
- Requires no electrical power.
Specifications:
- Product type: Top distributor.
- Suitable vessel size: 13″–16″ FRP vessels.
- Mounting connection: 2.5″.
- Installation position: Top of FRP vessel.
- Application: Media filtration and water-treatment vessels.
- Function: Water distribution and media retention.
- Operating principle: Mechanical water distribution.
- Power requirement: None.
Applications:
1. Water softening:
You can use the top distributor in compatible water-softening vessels containing ion-exchange resin. It helps distribute water through the treatment bed while helping prevent resin from reaching the control valve.
2. Activated carbon filtration:
Compatible activated carbon filter vessels suit it. The distributor helps direct water through the carbon media while helping retain the media within the vessel.
3. Quartz and sand filtration:
The distributor can be used in compatible media filtration vessels containing quartz sand or similar granular filtration media.
4. General media filtration:
Suitable for compatible FRP vessels containing granular water-treatment media where a 2.5″ top distributor connection is required.
5. Backwashing filter systems:
During backwashing, the operator reverses the water-flow direction. The distributor helps distribute backwash water through the treatment media, supporting the loosening and removal of accumulated contaminants and fines.
6. Water purification systems:
You can use the distributor as an internal component in compatible domestic, commercial and industrial water-treatment systems where the vessel, filter head, riser and distributor specifications match.
How the top distributor works:
The top distributor is installed at the upper section of the FRP vessel and forms part of the internal water-flow and media-retention system.
During normal filtration:
Water enters through the filter head.
↓
Water is directed into the treatment vessel.
↓
Water passes through the treatment media.
↓
Treated water moves through the internal distribution system.
↓
Backwash water enters through the riser/distribution system.
↓
Water is distributed through the treatment media.
↓
The media bed is loosened.
↓
Accumulated contaminants and fines are carried towards the filter head.
The distributor also helps reduce the risk of granular treatment media entering the control valve during normal operation.
