Description

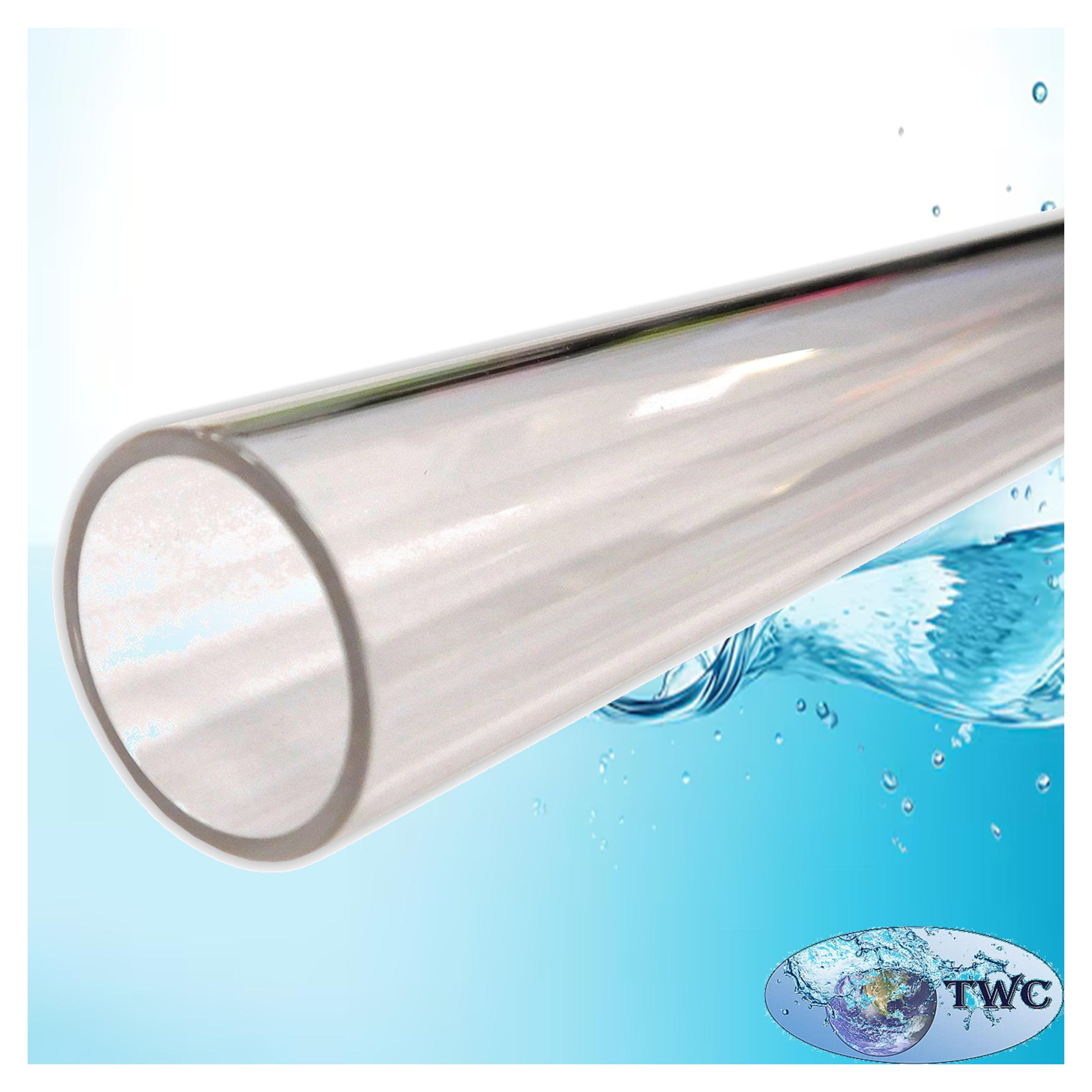

The UVC Pro Quartz Tube 32 Watt PRO-08 is a replacement quartz sleeve designed specifically for the compatible UVC Pro PRO-08 32W UV reactor. The quartz sleeve forms a transparent protective barrier between the UV lamp and the water, allowing UV-C radiation to pass through while preventing the lamp from coming into direct contact with the water.
The quartz sleeve is an important component of the UVC Pro UV sterilisation system. A clean, intact sleeve helps maintain effective transmission of UV-C radiation from the lamp into the water-treatment chamber.
Under normal operating conditions, you can generally clean the quartz sleeve periodically rather than routinely replace it. However, replace it if it becomes cracked, damaged or otherwise unsuitable for continued use.
Use this replacement quartz tube for the UVC Pro PRO-08 32W UV reactor. Correct sleeve dimensions and sealing are important for proper installation.
O-rings are not included.
Features:
- Replacement quartz sleeve for the UVC Pro PRO-08.
- Designed for the compatible 32W UV lamp.
- Provides a protective barrier between the UV lamp and water.
- Allows UV-C radiation to pass through the quartz.
- Prevents direct contact between the UV lamp and treated water.
- Suitable for replacing a cracked or damaged quartz sleeve.
- Clear quartz construction for UV-C transmission.
- Designed for installation inside the compatible UVC Pro PRO-08 reactor.
- Suitable for UV system maintenance and servicing.
- O-rings excluded.
- Supplied as the quartz tube only.
Specifications:
- Product type: UV quartz tube / quartz sleeve.
- Brand: UVC Pro.
- Compatible UV reactor: PRO-08.
- Compatible UV lamp: 32W.
- Application: UV water treatment.
- Material: Quartz Glass.
- Function: Protective sleeve for UV lamp.
- UV-C transmission: Yes.
- O-rings: Not included.
- Installation: Inside compatible UVC Pro PRO-08 UV reactor.
- Product supplied: Quartz tube only.
Applications:
- UVC Pro PRO-08 UV reactor servicing.
- Replacement of cracked or damaged quartz sleeves.
- 32W UVC Pro UV sterilisation systems.
- Domestic water-treatment systems.
- Point-of-entry UV water-treatment systems.
- Borehole water-treatment systems.
- Small commercial water-treatment installations.
- UV system maintenance and replacement.
Why choose the UVC Pro quartz tube 32 Watt PRO-08?
- PRO-08 compatibility: Designed specifically for the compatible UVC Pro PRO-08 32W UV reactor.
- Protects the UV lamp: Provides a physical barrier between the lamp and water.
- Allows UV-C transmission: Quartz allows UV-C radiation to pass through into the treatment chamber.
- Replacement solution: Suitable for replacing a cracked, damaged or unsuitable quartz sleeve.
- Maintenance-friendly: A clean quartz sleeve helps maintain effective UV-C transmission.
- System-specific component: Designed as the replacement quartz sleeve for the PRO-08 system.
- Water-treatment application: Purpose-built as a component for compatible UV water-treatment equipment.
Important compatibility information:
This quartz tube is designed for the UVC Pro PRO-08 32W UV reactor.
Before installation, confirm that the replacement sleeve matches the existing system, including:
- UVC Pro reactor model
- UV lamp wattage
- Quartz sleeve dimensions
- Sleeve length
- Seal and O-ring requirements
- Physical installation requirements
Do not select a quartz sleeve based on lamp wattage alone. Different UV reactors can use different quartz sleeve dimensions even when their lamps have similar wattage ratings.
O-rings are not included with this product.
Installation and handling:
Quartz sleeves are fragile and should be handled carefully.
- Switch off and isolate the UV system before servicing.
- Allow the UV system and lamp to cool before handling.
- Handle the quartz sleeve carefully to prevent cracking or breakage.
- Avoid touching the quartz surface unnecessarily.
- Inspect the sleeve for cracks or damage before installation.
- Ensure the appropriate O-rings and seals are correctly positioned.
- Do not overtighten retaining components.
- Check the system for leaks before returning it to operation.
Professional installation is recommended where required.
