Description

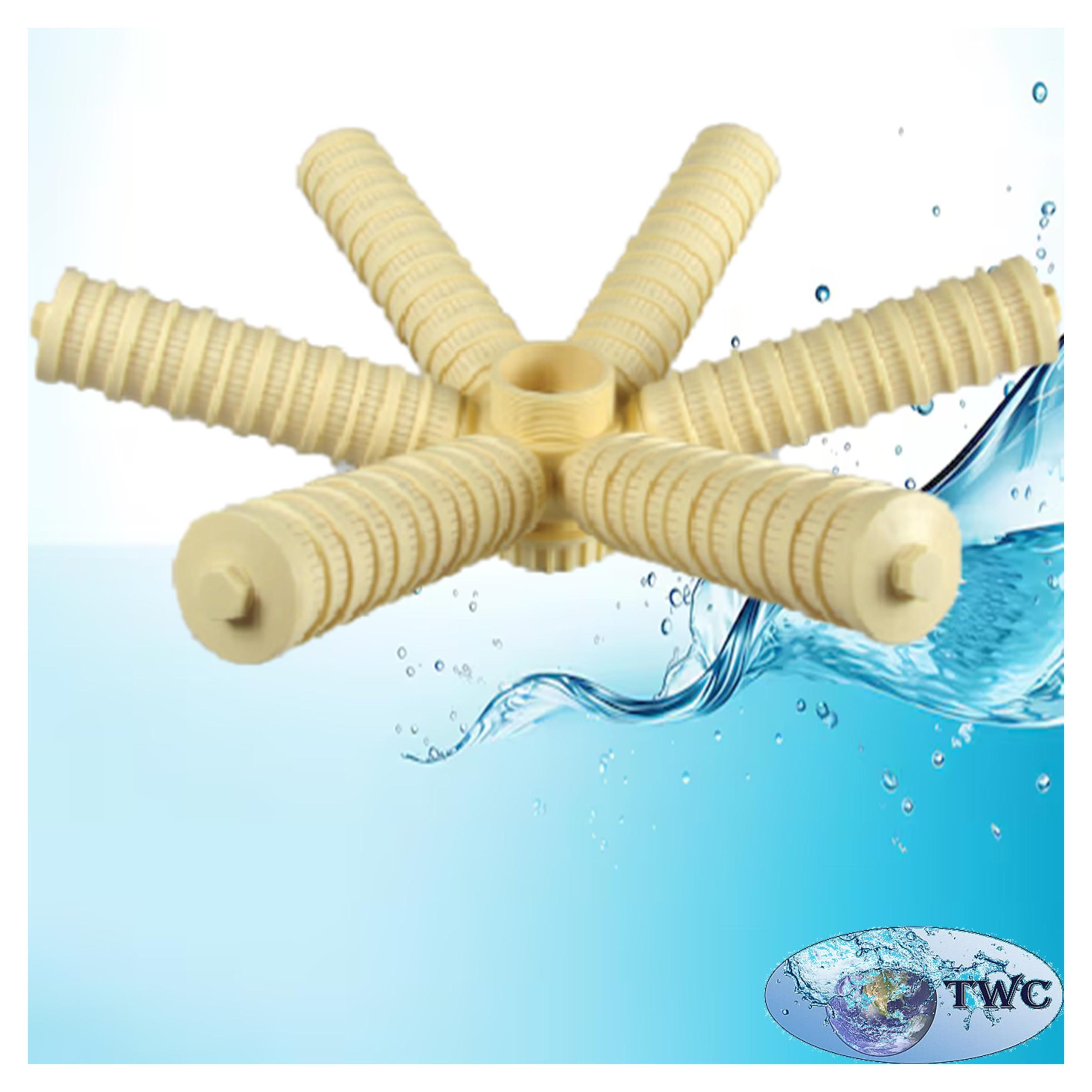

The Bottom Distributor Bayonet for 24″ Tank with 4″ Mount is an internal water-distribution and collection component designed for compatible 24″ diameter FRP water-treatment vessels. It is installed at the bottom of the vessel and works with the central riser or lifting tube to distribute and collect water during the filtration and backwashing cycles.
The distributor is suitable for a range of media-based water-treatment applications, including water softeners, iron filters, activated carbon filters, sediment filters, backwashing systems and up-flow filtration systems. Its calibrated slots allow water to pass through while helping retain the filter media within the vessel. By promoting more even water distribution, the distributor can help improve contact between the water and treatment media while reducing channeling.
Features:
- Designed for 24″ diameter FRP filter vessels.
- 4″ mounting connection.
- Bayonet-style bottom distributor.
- Designed for high-flow water-treatment applications.
- Helps distribute water evenly through the filter media.
- Helps reduce channeling through the media bed.
- Collects treated water and directs it to the central riser/lifting tube.
- Helps prevent filter media from entering the water-flow pathway.
- Suitable for backwashing and up-flow filtration systems.
- Compact construction.
- Made from durable, impact-resistant plastic.
- Designed with calibrated slots for controlled water flow.
- Suitable for a variety of water-treatment media systems.
Specifications:
- Product type: Bottom distributor.
- Design: Bayonet.
- Suitable tank diameter: 24.″.
- Tank diameter: 600 mm
- Mounting hole: 4″.
- Dimension L1: 205 mm.
- Dimension L2: 455 mm.
- Dimension L3: 135 mm.
- Slot specification: 0.2 / 10.08 cm².
- Material: Durable, impact-resistant plastic.
- Weight: 0.5 kg.
- Listed dimensions: 47 × 47 × 16 cm.
- Application: FRP water-treatment vessels.
- Suitable applications: Water softening, iron removal, activated carbon filtration, sediment filtration, backwashing and up-flow filtration systems.
Applications:
1. Water softeners:
Used with ion-exchange resin in water-softening vessels. The distributor provides even water flow through the resin bed and collects the treated water.
2. Iron removal filters:
Suitable for compatible iron-removal media systems where effective distribution and collection of water are required.
3. Activated carbon filters:
Used in activated-carbon filtration vessels to distribute water through the carbon bed and collect the filtered water.
4. Sediment filters:
Suitable for media-based sediment filtration systems.
5. Backwashing filter systems:
The distributor is designed for systems where the filter media is periodically backwashed to remove accumulated contaminants.
6. Up-flow filter systems:
It can also be used in compatible up-flow tank filtration systems.
How the Bottom Distributor Works:
The bottom distributor is installed at the bottom of the FRP vessel and works together with the central riser or lifting tube.
During normal filtration:
Water enters the vessel
↓
Water flows through the treatment media
↓
Treated water reaches the bottom distributor
↓
The distributor collects the treated water
↓
Water enters the central riser/lifting tube
↓
Water returns through the filter head
During backwashing, the water flow is reversed. Water enters through the riser tube and distributor, flows upward through the media bed and carries accumulated contaminants out through the filter head.
