Description

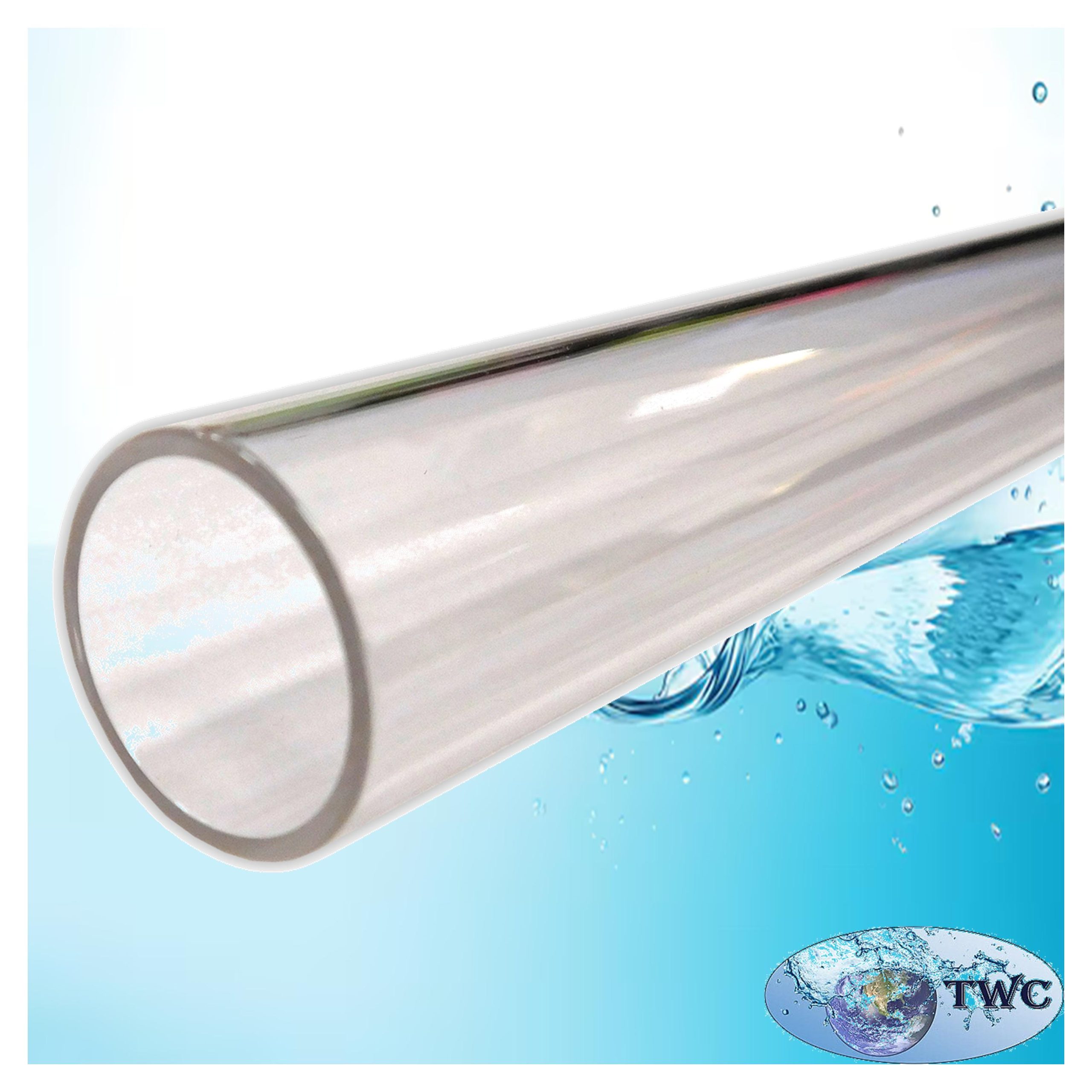

The UVC Pro Quartz Tube 39 Watt PRO-12 and PRO-24 is a replacement quartz sleeve designed for compatible UVC Pro ultraviolet water-treatment reactors using 39W UV lamps.
The quartz sleeve forms a protective barrier between the UV lamp and the water being treated. It allows UV-C radiation from the lamp to pass through into the water while preventing direct contact between the lamp and the water.
A clean, undamaged quartz sleeve is important for effective UV-C transmission. Over time, the sleeve can become dirty or damaged and may require cleaning or replacement as part of routine UV system maintenance.
This replacement quartz tube is designed for the UVC Pro PRO-12 and PRO-24 39W UV reactor models. When replacing a quartz sleeve, always confirm the reactor model and sleeve dimensions before ordering.
Features:
- Replacement quartz tube for compatible UVC Pro UV systems.
- Designed for UVC Pro PRO-12 and PRO-24 39W reactors.
- Provides a protective barrier around the UV lamp.
- Allows UV-C radiation to pass through to the water.
- Prevents direct contact between the UV lamp and treated water.
- Suitable for replacement or maintenance applications.
- Helps maintain effective UV-C transmission when clean and undamaged.
- Compatible with the UVC Pro 39W replacement lamp.
- Suitable for routine UV system maintenance.
- O-rings are not included.
Specifications:
- Product type: UV quartz tube / quartz sleeve.
- Compatible UV systems: UVC Pro PRO-12 and PRO-24.
- Compatible UV lamp: 39W.
- Material: Quartz Glass.
- Function: Protective sleeve for UV lamp.
- UV-C transmission: Yes.
- Application: UV water treatment.
- Installation: Inside a compatible UVC Pro UV reactor.
- O-rings: Not included.
- Product supplied: Quartz tube only.
Applications:
- UVC Pro PRO-12 UV reactor maintenance.
- UVC Pro PRO-24 UV reactor maintenance.
- Replacement of damaged quartz sleeves.
- Replacement of cracked or broken quartz tubes.
- Routine UV system maintenance.
- UV-C water-treatment systems using compatible 39W lamps.
- Domestic and compatible commercial UV water-treatment systems.
Why choose the UVC Pro quartz tube 39 Watt PRO-12 and PRO-24?
- Model-specific compatibility: Designed for compatible UVC Pro PRO-12 and PRO-24 39W UV reactors.
- Protective barrier: Keeps the UV lamp separated from the treated water.
- UV-C transmission: Allows UV-C radiation to pass through the sleeve during water treatment.
- Replacement solution: Suitable for replacing a damaged or broken quartz sleeve.
- Maintenance component: Helps keep the UV system operating correctly when the sleeve is clean and undamaged.
- Compatible replacement: Designed for use with the UVC Pro 39W lamp and compatible reactor models.
- O-rings excluded: Replacement O-rings can be sourced separately where required.
How the quartz tube works:
- The 39W UV lamp is installed inside the quartz sleeve.
- The quartz sleeve creates a protective barrier between the lamp and the water.
- Water flows around the outside of the quartz sleeve inside the UV reactor.
- UV-C radiation passes through the quartz material and reaches the water.
- The sleeve prevents the water from making direct contact with the UV lamp.
Installation and maintenance:
- Confirm that the quartz sleeve is suitable for the UVC Pro PRO-12 or PRO-24 before installation.
- Isolate the water and electrical supply before servicing the UV reactor.
- Remove the existing quartz sleeve carefully to avoid breakage.
- Inspect the replacement sleeve for cracks or damage before installation.
- Replace damaged or worn O-rings where required.
- Ensure the quartz sleeve is correctly positioned and sealed inside the reactor.
- Do not overtighten fittings or retaining components, as excessive force may damage the quartz sleeve.
- Clean the quartz sleeve periodically according to the water quality and maintenance requirements.
- Use an appropriate cleaning method to remove deposits from the sleeve.
- Do not operate the UV system if the quartz sleeve is cracked or damaged.
- Check for leaks after reassembly before returning the UV system to normal operation.
- Handle the quartz tube carefully, as it is a fragile glass component.
Important compatibility information:
This quartz tube is specifically listed for the UVC Pro PRO-12 and PRO-24 39W UV reactor models. The PRO-12 uses one 39W UV lamp, while the PRO-24 uses two 39W UV lamps. Therefore, confirm the required number of sleeves when servicing a PRO-24 reactor.
O-rings are not included with the quartz tube.
