Description

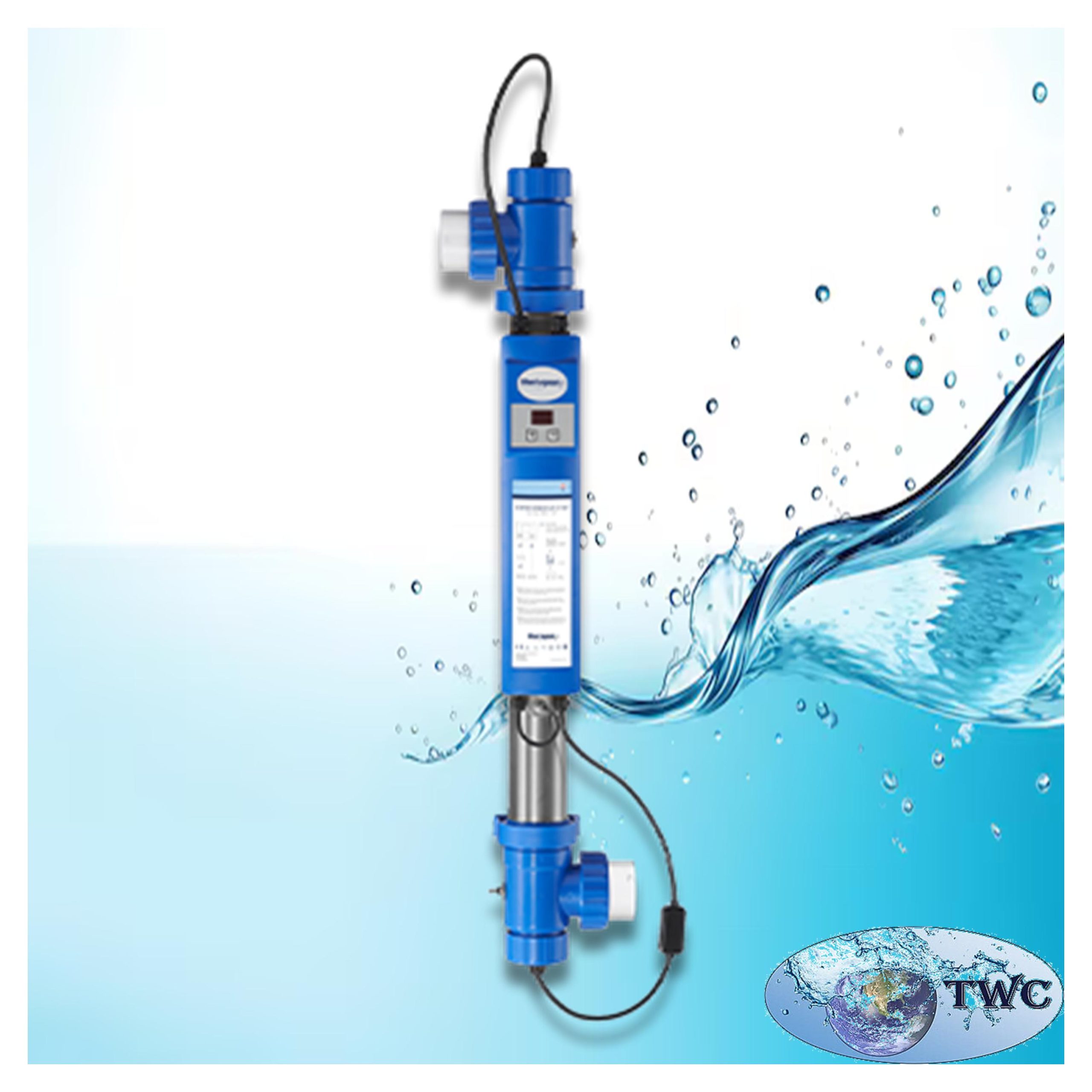

The Blue Lagoon Copper Ionizer UV-C 75W is a swimming pool water-treatment system that combines copper ionisation and UV-C disinfection in a single in-line unit.
The system uses copper electrolysis to introduce electrically charged copper ions into the pool water. These copper ions help control microorganisms such as bacteria, viruses and fungi. At the same time, the integrated 75 W UV-C lamp provides UV-C treatment as water passes through the stainless-steel reactor.
The 75 W model is designed for swimming pools with a water volume of up to 75,000 litres, with a recommended flow rate of 16 m³/h to achieve a UV-C dose of 30 mJ/cm². The unit has a maximum flow rate of 23 m³/h and a maximum operating pressure of 2 bar.
The Blue Lagoon Copper Ionizer UV-C 75W is suitable for pool installations where copper ionisation and UV-C treatment are required as part of a broader swimming pool water-treatment system.
Important: The Copper Ionizer UV-C 75W is not a chlorine replacement in all circumstances. Pool water must still be tested and maintained correctly, and additional chlorine may be required depending on pool usage and water conditions.
Features:
- Combined copper ionisation and UV-C water treatment
- 75 W UV-C lamp
- Suitable for swimming pools up to 75,000 litres
- Recommended flow rate of 16 m³/h at 30 mJ/cm²
- Maximum flow rate of 23 m³/h
- Copper ionisation up to 0.7 ppm
- 316L stainless steel housing
- UV-C treatment helps control microorganisms in circulating pool water
- Copper ions provide ongoing antimicrobial activity in the treated water
- Electronic ballast for reliable lamp operation
- Integrated lamp replacement indication
- 63 mm, 50 mm and 1½″ connection options
- Suitable for in-line installation
- Designed for easy installation and maintenance
Specifications:
- Product Type: Copper Ionizer UV-C Swimming Pool System
- Model: Copper Ionizer UV-C 75W
- Manufacturer Product Code: BH04752
- Rated Pool Volume: 75,000 litres
- Lamp Power: 75 W
- Lamp Type: Blue Lagoon T5 75 W Ionizer
- Recommended Flow Rate: 16 m³/h
- UV-C Dose at Recommended Flow: 30 mJ/cm²
- Maximum Flow Rate: 23 m³/h
- Maximum Operating Pressure: 2 bar
- Maximum Copper Level: 0.7 ppm
- Recommended Copper Range: 0.4–0.7 ppm
- Housing Material: 316L stainless steel
- Unit Diameter: 70 mm
- Unit Length: 100 cm
- Connections: Ø63 mm / Ø50 mm / 1½″
- Power Supply: 230 V AC, 50 Hz
- Maximum Current: 0.57 A
- Lamp Service Life: 9,000 hours
- Lamp Replacement Alert: Yes
- Unit Weight: 5.2 kg
Applications:
- Residential swimming pools.
- Swimming pools up to approximately 75,000 litres.
- Pool circulation and filtration systems.
- Swimming pool UV-C treatment.
- Copper-ionisation pool-water treatment.
- Pool installations requiring reduced reliance on conventional chemical treatment.
Why Choose the Blue Lagoon Copper Ionizer UV-C 75W?
- Dual treatment technology: Combines copper ionisation with UV-C treatment in one unit.
- Suitable for larger residential pools: Designed for swimming pools up to 75,000 litres.
- Effective flow capacity: Provides a recommended flow of 16 m³/h at a UV-C dose of 30 mJ/cm².
- Durable construction: Manufactured with a 316L stainless steel housing.
- Reduced chemical reliance: Copper ionisation can help reduce dependence on conventional pool chemicals, although appropriate chlorine and water-quality management may still be required.
- Easy maintenance: Includes a lamp replacement alert and accessible components for routine servicing.
- Flexible connections: Supplied with connection options for Ø63 mm, Ø50 mm and 1½″ installations.
