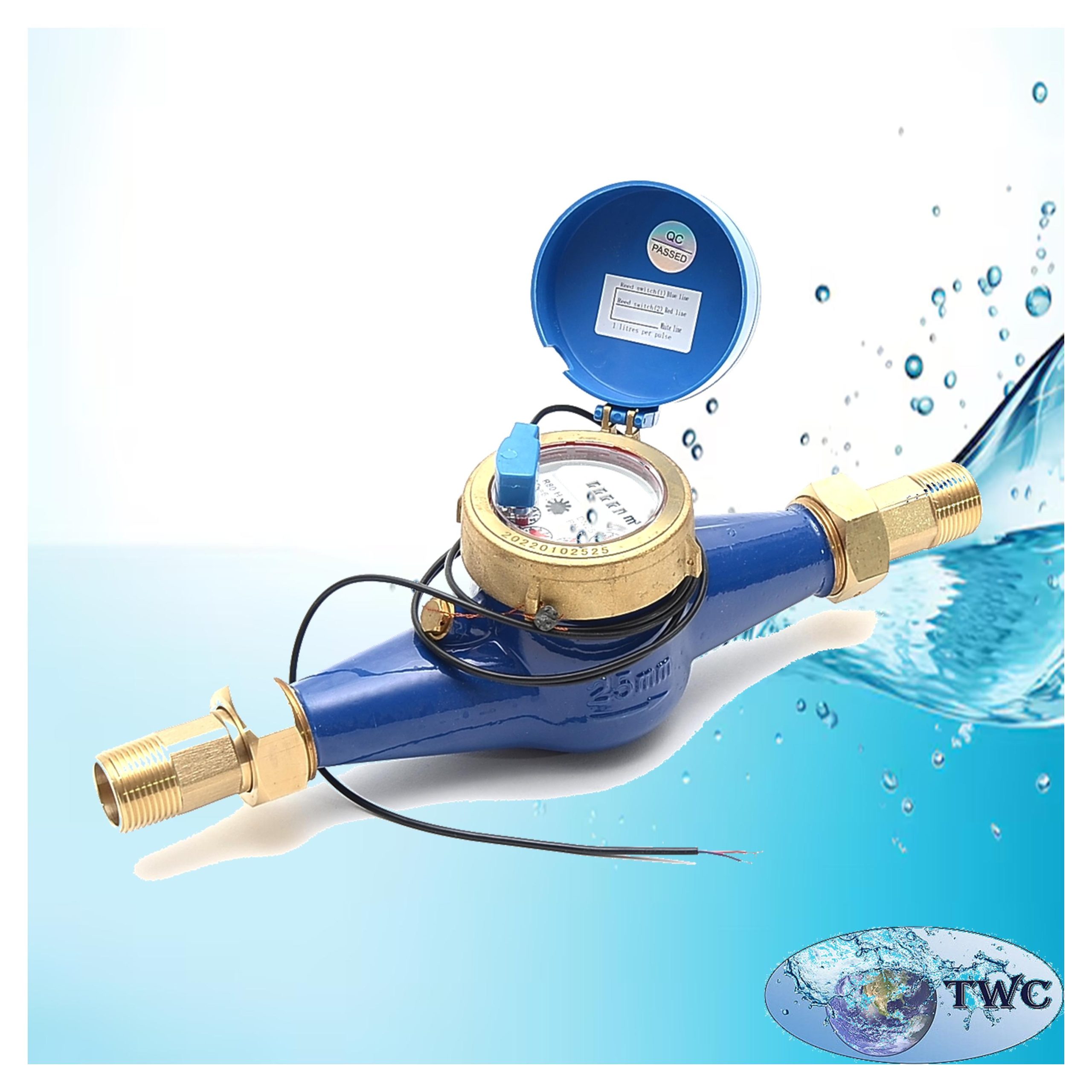

Multi-Jet brass water meter with tails & reed switches – 50mm

R5,511.38

INCLUDING VAT

Please note that shipping and installation is not included.



Description

Multi-Jet brass water meter with tails & reed switches – 50mm

Characteristics:
– All the Materials in contact with water, consciously selected by the known resistance to corrosion
– Can be used safely in water temperature up to 50℃(T50)
– The Multi-Jet brass water meter with tails & reed switches – 50mm indicator register is of 5 Rollers (Dn40/Dn50 with 6 Rollers) and 4 Pointers
– The Impeller is the only moving part in contact with water
– The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal
– They come with Magnetic Protection against the external influences

As a matter of fact the Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black. At the present time ption with 2 reed switches and 1,5 m cable with 3 cores in Red, Black

Blue Electric Data: Vmax=24AC/DC; I max=0,01A  Capacity of the Pulse Emitter:

Magnet Position          Litre/Pulse
x0,001                                   10

Installation Requirements:

  • Straightaway must be installed on a horizontal pipeline only.
  • The pipeline must be flushed before installation.
  • The meters should be constantly full of water during operation.
