Description

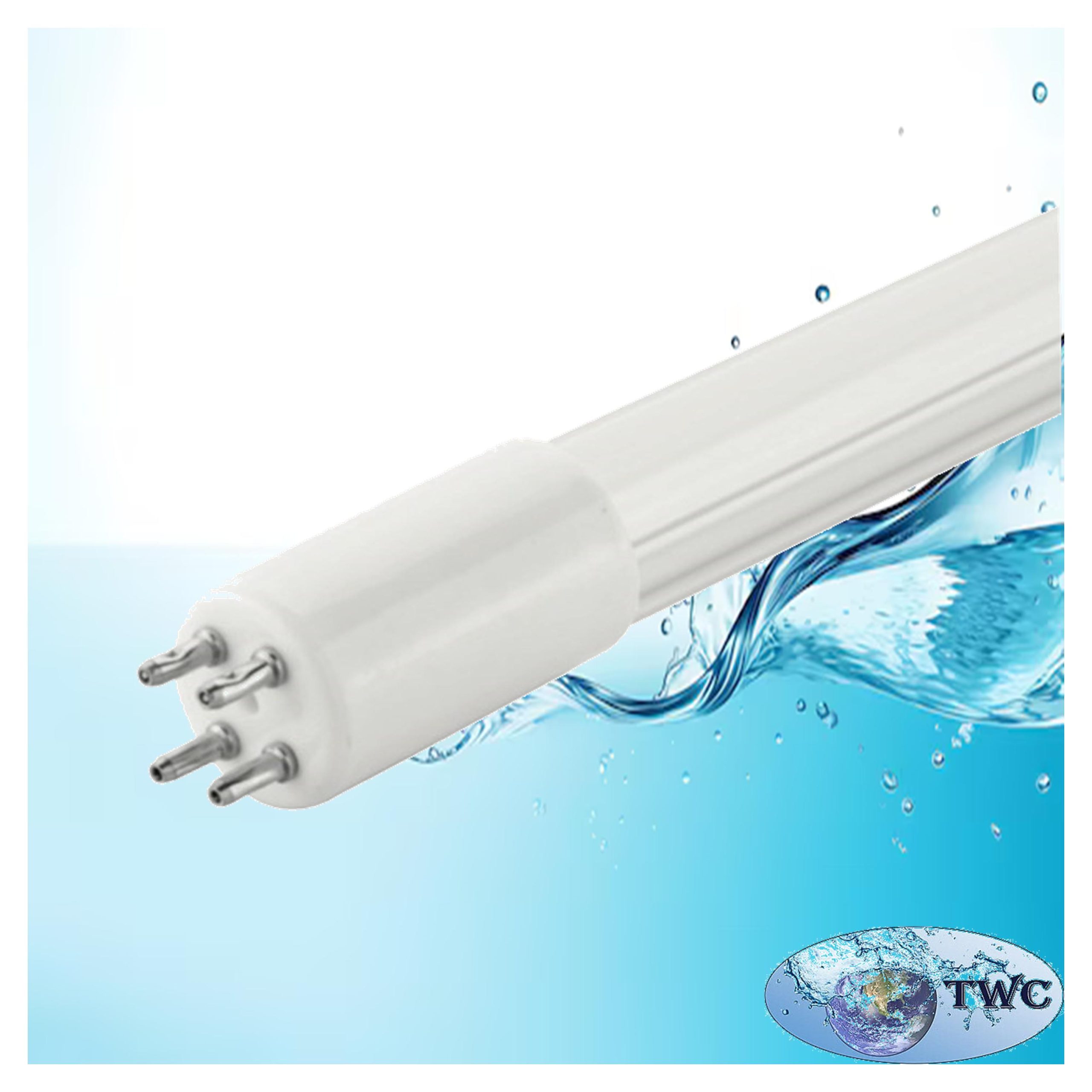

The UVC Pro Replacement Lamp 32 Watt PRO-08 is a replacement ultraviolet lamp designed for the compatible UVC Pro PRO-08 UV water-treatment system.
The 32W D645T5 UV-C lamp produces ultraviolet radiation to treat water microbially. The PRO-08 uses one 32W lamp and a separate ballast.
This lamp features a GR-10Q base, 85V operating voltage, 425mA current, a 15.5mm diameter and a 645mm overall length. These specifications match the D645T5 lamp specified for the UVC Pro PRO-08.
It is intended as a replacement for an existing lamp in a compatible PRO-08 system and should be installed with the correct ballast and quartz sleeve.
Product supplied: replacement 32W UV lamp only. The UV reactor, ballast and quartz sleeve are not included unless specifically stated.
Features:
- Replacement lamp for UVC Pro PRO-08.
- 32W UV-C lamp.
- Lamp model D645T5.
- GR-10Q base.
- 85V operating voltage.
- 425mA operating current.
- 15.5mm lamp diameter.
- 645mm lamp length.
- Designed for UV water-treatment applications.
- Suitable for replacement and routine UV system maintenance.
- Designed for use with the compatible UVC Pro PRO-08 ballast.
- Fits the compatible SQ230670 quartz sleeve.
- Replacement lamp only.
Specifications:
- Product type: UV replacement lamp / UV-C lamp.
- Brand: UVC Pro.
- Compatible reactor: UVC Pro PRO-08.
- Lamp model: D645T5.
- Lamp power: 32W.
- Lamp type: Single-ended 4-pin quartz germicidal UVC lamp.
- Base: GR-10Q.
- Voltage: 85V.
- Current: 425mA.
- Application: UV water treatment.
- Function: UV-C microbial treatment of water.
- Compatible quartz sleeve: SQ230670.
- Quartz sleeve length: 670mm.
- Installation: Inside a compatible UVC Pro PRO-08 UV reactor and quartz sleeve.
- Product supplied: Replacement 32W UV lamp only.
- Electronic ballast: Not included.
- Quartz tube: Not included.
- UV reactor: Not included.
Applications:
- Replacement of an existing PRO-08 UV lamp.
- UV water-treatment system maintenance.
- Domestic water purification.
- Drinking-water treatment.
- Borehole water-treatment systems.
- Point-of-use and point-of-entry UV systems.
- Commercial water-treatment applications.
- UV-C microbial treatment applications.
Why choose UVC Pro replacement lamp 32 watt PRO-08?
- Designed for PRO-08: Specifically matched to the UVC Pro PRO-08 UV reactor.
- Correct 32W specification: Matches the single 32W lamp configuration of the PRO-08.
- Correct lamp model: Uses the specified D645T5 lamp.
- Correct base: The GR-10Q base provides the correct connection configuration for the specified lamp.
- Correct physical dimensions: 645mm long with a 15.5mm diameter.
- Compatible quartz sleeve: The lamp is specified with the SQ230670 sleeve used by the PRO-08.
- Straightforward maintenance: Provides a replacement option when the existing UV lamp needs to be replaced.
Compatibility information:
Before ordering, confirm that your existing system is the UVC Pro PRO-08 and that the replacement lamp matches these specifications.
- UV Reactor: UVC Pro PRO-08.
- Lamp: D645T5, 32W.
- Base: GR-10Q.
- Quartz Sleeve: SQ230670.
- Ballast: Compatible UVC Pro PRO-06 to PRO-24 ballast.
The Water Company currently lists the UVC Pro quartz tube 32 watt PRO-08 separately, and the PRO-08 reactor is specified as a 32W × 1 lamp system.
Installation & handling:
- Switch off and isolate the UV system from the electrical supply before replacing the lamp.
- Allow the lamp and reactor to cool before handling.
- Do not touch the glass portion of the lamp with bare hands.
- Use clean gloves when handling the lamp to help prevent contamination from skin oils.
- Handle the lamp carefully to prevent cracking or damage.
- Inspect the quartz sleeve before installation.
- Replace the quartz sleeve if it is cracked, damaged or unsuitable.
- Correctly seat the lamp in the GR-10Q connection.
- Before returning the system to service, verify that all seals and connections are correctly installed.
- Never operate an exposed UV lamp where people can be exposed directly to UV-C radiation.
Warranty & electrical safety:
Due to the sensitive nature of electrical products, UV bulbs and ballasts do not carry a warranty.
Install suitable surge protection to help protect these electrical components and reduce the risk of premature failure.
