Description

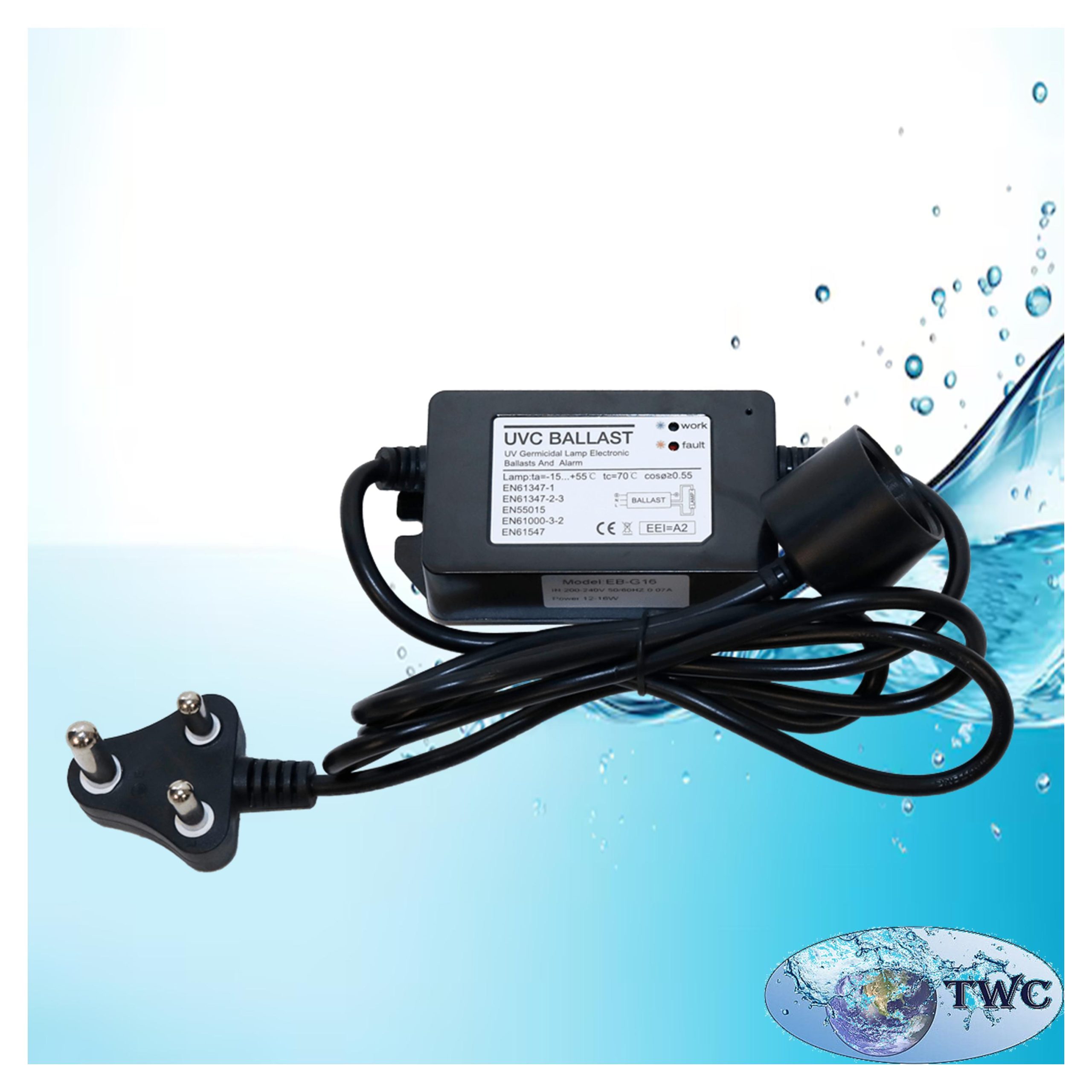

The UVC Pro electronic ballast PRO-06 to PRO-24 is an electronic electrical control component designed for compatible UVC Pro ultraviolet water-treatment reactors in the PRO-06, PRO-08, PRO-12 and PRO-24 range.
The ballast provides the electrical control required to start and operate the compatible UVC Pro UV lamp. It is supplied as a replacement component for UVC Pro UV systems where the original ballast has failed, become damaged or requires replacement.
The UVC Pro range uses different lamp wattages across the compatible reactor models. The PRO-06 uses a 24W lamp, the PRO-08 uses a 32W lamp, while the PRO-12 and PRO-24 use 39W lamps. Customers should therefore confirm their exact UVC Pro reactor model and lamp wattage before ordering.
Client can use this ballast for the compatible UVC Pro configuration where you supply the ballast separately from the UV reactor and lamp.
Important: This product is the electronic ballast only. The UV reactor, UV lamp and quartz sleeve are not included unless specifically stated.
Features:
- Replacement electronic ballast for compatible UVC Pro UV reactors.
- Suitable for the UVC Pro PRO-06, PRO-08, PRO-12 and PRO-24 range.
- Designed for the compatible UVC Pro lamp configurations.
- Provides the electrical control required to start and operate the UV lamp.
- Suitable for replacing a failed or damaged original ballast.
- Practical replacement component for UVC Pro UV system maintenance.
- Helps restore normal operation of a compatible UVC Pro UV reactor.
- Suitable for domestic, commercial and light-duty water-treatment applications using compatible UVC Pro systems.
Specifications:
- Product type: Electronic UV ballast.
- Brand / series: UVC Pro.
- Compatible UV reactors: PRO-06, PRO-08, PRO-12 and PRO-24.
- PRO-06 compatible lamp: 24W.
- PRO-08 compatible lamp: 32W.
- PRO-12 compatible lamp: 39W.
- PRO-24 compatible lamp: 39W.
- Ballast configuration: Separate ballast.
- Application: UVC Pro UV water-treatment reactors.
- Product function: Electrical control for UV lamp operation.
- Product supplied: Ballast only.
- UV Lamp included: No.
- UV Reactor included: No.
- Quartz sleeve included: No.
Applications:
- Replacement of a failed UVC Pro ballast.
- Maintenance and servicing of compatible UVC Pro UV reactors.
- UVC Pro PRO-06 UV systems using a compatible 24W lamp.
- UVC Pro PRO-08 UV systems using a compatible 32W lamp.
- UVC Pro PRO-12 UV systems using a compatible 39W lamp.
- UVC Pro PRO-24 UV systems using a compatible 39W lamp.
- Domestic water purification systems.
- Commercial water-treatment systems.
- Borehole water-treatment systems using a compatible UVC Pro UV reactor.
Why choose the UVC Pro electronic ballast PRO-06 to PRO-24?
- Wide UVC Pro compatibility: Designed for compatible PRO-06, PRO-08, PRO-12 and PRO-24 UV reactors.
- Multiple lamp configurations: Supports the compatible 24W, 32W and 39W UVC Pro lamp configurations.
- Replacement solution: Allows the ballast to be replaced without necessarily replacing the complete UV reactor.
- System-specific component: Helps ensure the replacement ballast is selected for the correct UVC Pro system.
- Reliable UV operation: Provides the electrical control required for compatible UV lamp operation.
- Practical maintenance part: Useful for maintaining and servicing existing UVC Pro UV systems.
- Suitable for water treatment: Designed for compatible UV systems used in water purification and UV disinfection applications.
Important compatibility information:
This ballast should only be installed with a compatible UVC Pro UV reactor and lamp configuration.
Before replacing the ballast, confirm:
- UVC Pro reactor model.
- UV lamp wattage.
- Lamp type and electrical configuration.
- Ballast connections and wiring.
- Input voltage and frequency.
- Physical installation requirements.
Compatibility between the ballast and existing UV system:
The compatible UVC Pro configurations are:
- PRO-06: 24W UV lamp
- PRO-08: 32W UV lamp
- PRO-12: 39W UV lamp
- PRO-24: 39W UV lamp
Using an incorrectly matched ballast or UV lamp may result in improper operation and could damage the UV equipment.
A qualified person should carry out the electrical installation.
Warranty and electrical safety:
Electrical components such as UV ballasts should be protected from electrical surges and installed according to the applicable electrical requirements.
The Water Company currently advises that UV bulbs and electrical components such as UV ballasts do not carry a warranty.
We recommend using a suitable surge-protection device to help reduce the risk of premature electrical-component failure caused by electrical surges.
Always isolate the electrical supply before replacing or servicing the ballast.
